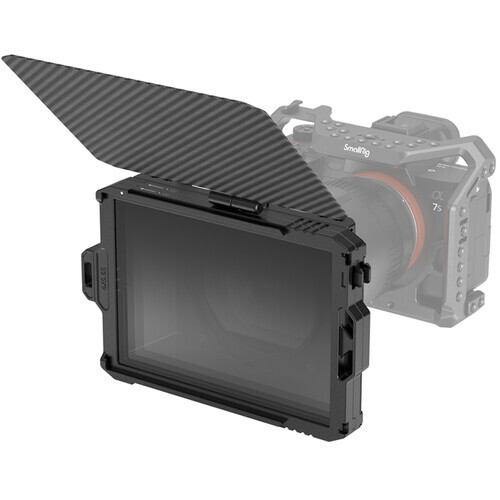

SmallRig Mini Matte Box

Add a compact and lightweight matte box to your rig with the Mini Matte Box from SmallRig. Made from durable yet lightweight carbon fibre material, this clamp-on matte box fits small mirrorless or DSLR cameras and accepts multiple 4 x 5.65" filters. It comes with one filter tray and four adapter rings to attach the matte box to the lens, with a maximum load capacity of 0.99 kg.

The included carbon fiber top flag helps block veiling glare or bright reflections from striking your lens, and it can be folded down to cover the front of the matte box and provide protection to the front of your lens. There are multiple 1/4"-20 threads on top of the matte box that allow you to mount additional accessories. You can also mount it onto your rig using an optional 15mm LWS rod clamp that attaches to the bottom 1/4"-20 threads on the matte box frame.

The matte box features a 95mm diameter opening, and the included 67, 72, 77, and 82mm threaded adapter rings allow you to use the matte box with lenses of different sizes and diameters. A separately available adapter ring kit can be used for additional lens sizes.

  • Made from durable and lightweight carbon fiber, plastic, and aluminum
  • The matte box has a 95mm opening and attaches directly to the front of a lens using the included 82, 77, 72, and 67mm adapter rings
  • Multiple 1/4"-20 threads allow you to mount additional accessories
  • Multiple 4 x 5.65" filters can be added to the front of the matte box with filter trays (one is included)
  • A circular filter up to 92.5mm can also be added, along with a filter tray
  • A carbon fiber top flag is included to block unwanted glare
  • An optional mount can be attached using 1/4"-20 threads on the bottom of the matte box
  • Maximum load capacity of 0.99 kg
  • Optional adapter ring set with 52, 55, 58, 62, and 86mm rings (SmallRig 3383) is available for additional lenses
SMALLRIG MINI MATTE BOX

Attachment Method Lens Clamp
Filter Stages 1 x Fixed Stage (4 x 5.65")
Lens Compatibility 95 mm Opening
  86 mm Opening (via Optional Adapter)
  82 mm Opening (via Included Adapter)
  77 mm Opening (via Included Adapter)
  72 mm Opening (via Included Adapter)
  67 mm Opening (via Included Adapter)
  62 mm Opening (via Optional Adapter)
  58 mm Opening (via Optional Adapter)
  55 mm Opening (via Optional Adapter)
  52 mm Opening (via Optional Adapter)
Flags 1 x Top Flag
Material Flag: Carbon Fiber
  Hood: ABS, Aluminum, Carbon Fiber
Vertical Adjustment Yes
Horizontal Adjustment Yes
Tilt Adjustment Yes
Dimensions 17.52 x 13.71 x 4.31 cm
Weight 0.15 kg

* Specifications subject to change by the manufacturer without notice

  • SmallRig Mini Matte Box
  • Carbon Fiber Top Flag
  • 67mm Adapter Ring
  • 72mm Adapter Ring
  • 77mm Adapter Ring
  • 82mm Adapter Ring
  • SmallRig Filter Tray for Mini Matte Box (4 x 5.65")
