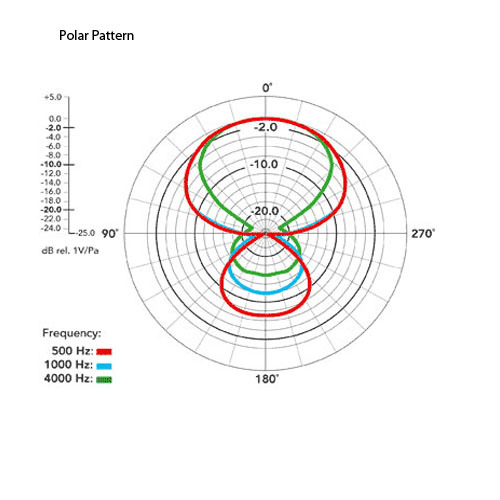

The NTG-2 provides a balanced low impedance output stage and operates either from an internal 1.5 V battery (AA) or 48 V to the P48 standard. A wide bandwidth and controlled polar response coupled with low noise SMT electronics, makes the NTG-2 the perfect choice for film, video engineering and voice-over work.
The NTG-2 has many uses; It can be mounted on video cameras using either the on-board camera mic mounts or the optional shock mount. The NTG-2 is also suitable as a boom mounted mic for film and video use where it is desirable to get closer to the sound source yet still be out of the shot. Another area where the NTG-2 excels is in a live sound situation, used to great effect as a ‘crowd mic’ when doing a live band recording. The ability to power the mic by 48V phantom or an internal AA 1.5v battery is also a great feature.
Note: The NTG-2 requires power to operate. This needs to be supplied via P48V phantom power supply which is available from most professional video cameras or mixing consoles. Additionally you have the option of using an internal 1.5V AA battery.
P48 (48V) phantom supply or 1.5V AA battery

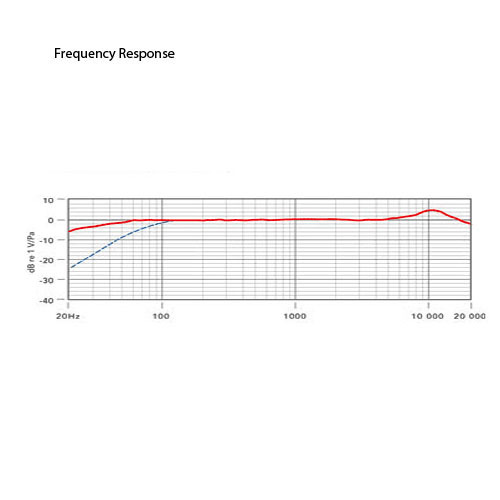

20Hz-20kHz, selectable HPF @ 80Hz/12dB/octave
250O (phantom), 350O (battery)
Signal noise ratio
76 dB SPL (A - weighted per IEC651)
18 dB SPL (A - weighted per IEC651)
131dB SPL (@ 1kHz, 1% THD into 1KO load)
Maximum output voltage
-15.4dBu (@ 1kHz, 1% THD into 1KO load)
-36 dB re 1 Volt/Pascal (15 mV @ 94 dB SPL) +/- 2 dB @ 1kHz
3-pin XLR, balanced output between pin 2 (+), 3 (-) and pin 1 (ground)
278mmH x 22mmW x 22mmD
* Specifications subject to change by the manufacturer without notice
