Lavalier System with 96 Channels and 2 Groups

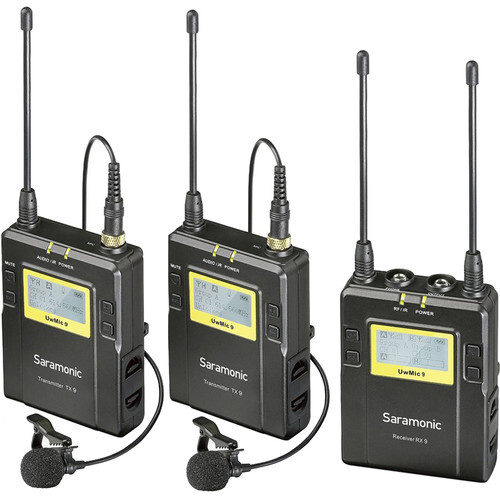

The camera-mountable Saramonic UWMIC9 Wireless Lavalier System includes two lav mics, one RX9 receiver and two TX9 transmitters equipping you with simultaneous capture of reliable, interference-free audio from two separate subjects. With 2 groups (A and B) and 96 selectable channels in the 514 – 596 MHz UHF frequency range, the system is ideally suited for broadcast television, ENG and interview scenarios. It has a range of 100m in open areas and 60m in areas with obstacles.

Two TX9 Wireless Transmitters

The two wireless transmitters feature a muting function and a crystal-controlled PLL synthesiser to capture stable, noise-free audio. The RF power output can be switched between high, medium and low settings and each transmitter is built with a 1/8” BMP-type mic input for attaching lavalier microphones.

Includes Two Lavalier Microphones

Two omni-directional lavalier microphones are included with the UWMIC9 UHF Wireless System. Each has a windscreen to reduce wind noise and lapel clips are included for attaching them to clothes.

RX9 Receiver with Easy-to-Read LCD Displays

Both TX9 transmitters and RX9 receiver have easy-to-read LCD displays for input accuracy. The receiver has a shoe adapter for quick mounting to a DSLR or mirrorless cameras, plus a 1/4-inch thread for easy attachment to tripods, light stands and other mounting hardware.

Auto-Scan and Infrared Synchronization

With infrared synchronisation between the transmitters and receiver, the auto-scan function automatically discovers available frequencies so that high quality audio can be captured.

3.5mm Output and Headphone Jack

A 3.5mm output on the receiver delivers audio directly to your DSLR, Mirrorless or video camera or audio recorder. A dedicated headphone jack is handy for audio monitoring, ensuring you can accurately adjust levels for optimum audio quality.
  • 96 Selectable Channels and 2 Groups
  • Two TX9 Wireless Transmitters
  • Two Lavalier microphones
  • RX9 Receiver with 3.5 mm Output
  • Headphone Jack on RX9 Receiver
  • Easily Readable LCD Displays
  • Auto-Scan and Infrared Synchronisation

Receiver

Channels

Dual Channel Available

Frequencies

96, A & B group

Oscillator Type

PLL synthesiser

Audio Output Connector

1/8" (3.5 mm) jack

Antenna

1/4 wave wired

Audio Output Level

-60 dBV

Headphone Output Level

30 mW (16 Ohms)

Receiving Frequency

614 to 696 MHz

Receiving Sensitivity

-95 dBm

Signal to Noise Ratio

70 dB or more

Voice Delay

12 ms

Reference Deviation

±5 kHz (-60 dBV, 1 kHz input)

Frequency Response

40 Hz to 18 kHz (±3 dB)

Distortion

0.5% or less

Spurious and Harmonic Suppression

-60 dB

Batteries

Two AA size batteries

Dimensions

17 x 6.4 x 3.0 cm

Weight

Approx. 219 g excluding batteries

Transmitter

Channels

96, A & B group

Oscillator Type

PLL synthesiser

Audio Carrier Frequencies

514 to 596 MHz

Reference Deviation

±5 kHz (-60 dBV, 1 kHz input)

Signal to Noise Ratio

70 dB or more

Spurious and Harmonic Suppression

-60 dB

Voice Delay

12 ms

Antenna

1/4 wave wired

Audio Input Connectors

1/8" (3.5 mm) jack

Audio Input

-60 dBV (MIC input, 0 dB attenuation)

RF Output Level

30 mW / 20 mW / 10 mW selectable

Battery

2 x AA size batteries

Operating Temperature

0 to 50°C

Storage Temperature

20 to +55°C

Distortion

0.5% or less

Dimensions

17 x 6.3 x 3.0 cm

Weight

Approximately 211.4 g excluding batteries


* Specifications subject to change by the manufacturer without notice

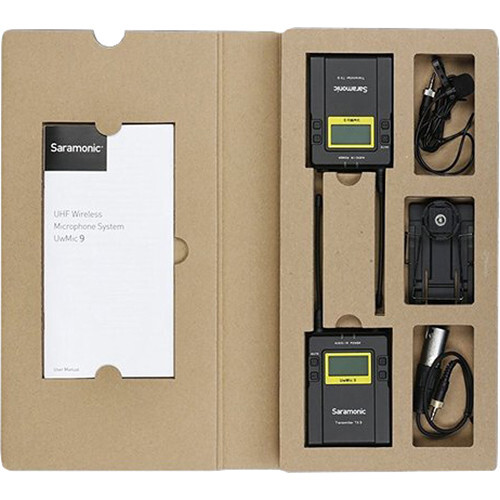

  • RX9 Portable Receiver
  • 2 x TX9 Bodypack Transmitters
  • 2 x Lavalier Microphones
  • 1/8" to XLR Output Cable
  • 1/8 to 1/8" Output Cable
  • 2 x Windscreen
  • 2 x Belt Clip
  • Shoe-Mount Adapter
