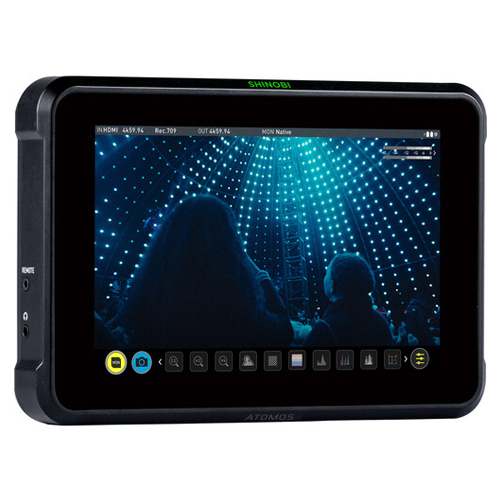

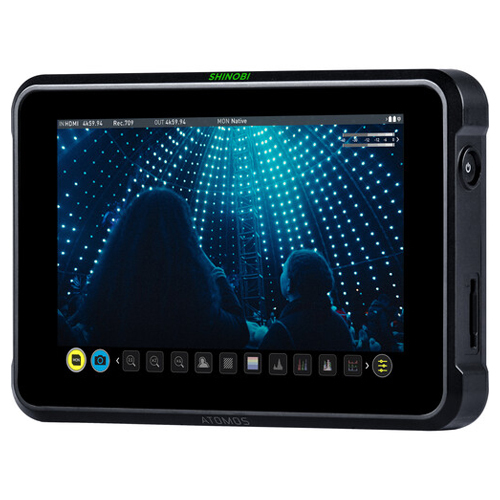

Atomos Shinobi 7" 4K HDMI/SDI Monitor
SKU code: 48260
- 7" 1920 x 1200 Touchscreen Display
- 4K60 HDMI 2.0 In/Out, 2K60 3G-SDI In/Out
- 2200 cd/m² Brightness
- HDMI/SDI Cross Conversion
- 2.5mm Camera Control Port
- Dual Sony L-Series Battery Slots
- AtomOS; AtomHDR& 3D LUT Support
- 10-Stop Dynamic Range
- Supports a Variety of Log Formats
For store pickup please contact us
You May Also Like
The Essentials:
Action Mounts:
Bags, Cases & Straps:
Batteries & Chargers:
Tripods & Monopods:
Cleaning & Maintenance:
Audio Equipment:
Cables & Connectivity:
Other:
The Atomos Shinobi 7" 4K HDMI/SDI is the ideal monitor for any content maker who wants total control over the image they're capturing. The Shinobi 7, which is larger and brighter than its 5-inch counterpart, brings next-level display quality and control features to Atomos monitor-only line-up.
Big. Bright. Beautiful

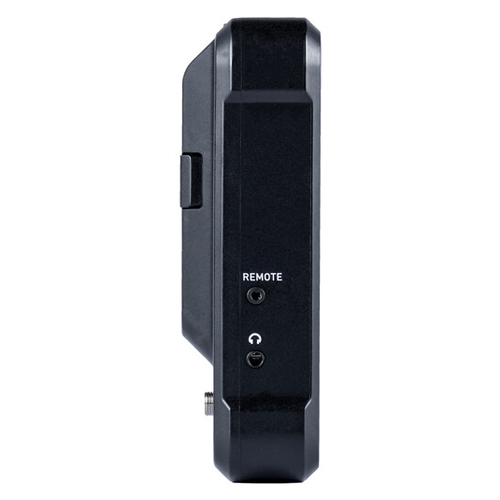

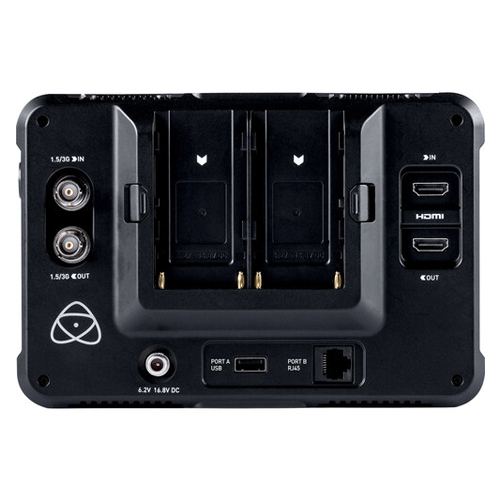

Shinobi 7 has a lightweight chassis and is designed to withstand the rigours of production. It is powered by a dual L-series battery plate or the included power adapter. With 2200 Nits of brightness and all of the on-screen monitoring features, it delivers outstanding image quality. Shinobi 7 includes a variety of ports for cross-conversion and camera control, as well as dual battery slots to enhance the battery life. Besides, it has a 2.5 mm Remote jack for supporting control of the Z Cam E2 range.
Camera controls at your fingertips

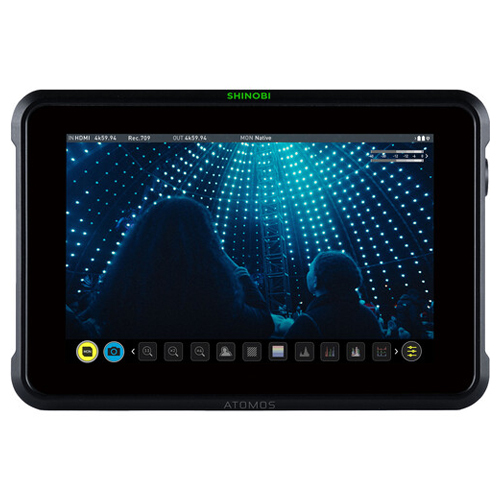

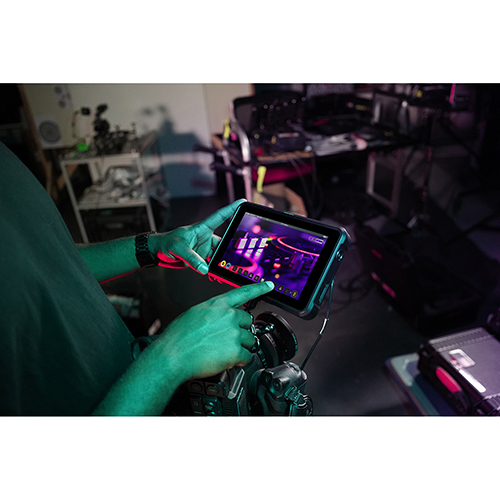

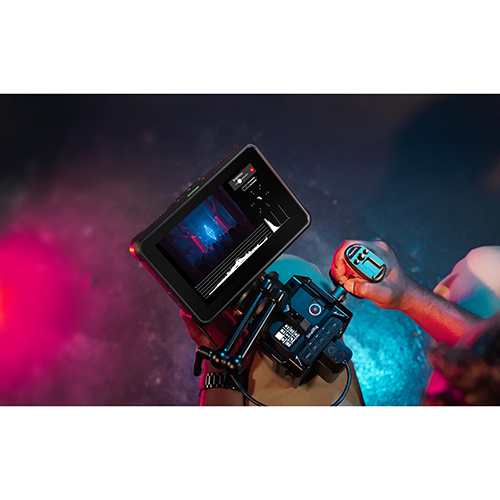

It employs HDMI 2.0 input and loop output up to 4K60, 3G-SDI input and loop output up to 2K60, a camera control port, signal cross conversion, dual L-series battery slots, and built-in USB & RJ45 ports for future support and control functionality. This touchscreen monitor is equipped with the most recent AtomOS firmware, which includes several onscreen analysis tools such as multi-scope views, RGB parade, framing, exposure, focus assist, waveform, and histogram tools.
Built-in 3D LUT box
The AtomHDR display technology enables you to precisely monitor your log gamma footage without having to view flat, washed-out images or use a LUT to compress the dynamic range and colour space. The Shinobi 7 has an SDI card input for loading custom 3D LUTs and supports both SDR and HDR viewing. More importantly, popular log formats from ARRI, Canon, Sony, Panasonic, RED, and JVC cameras are supported by the Shinobi 7.
More than just a monitor

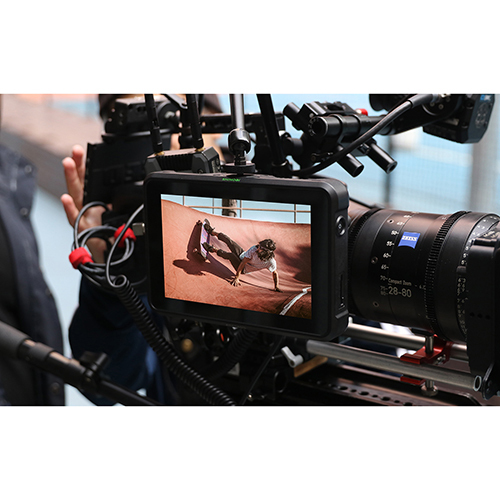

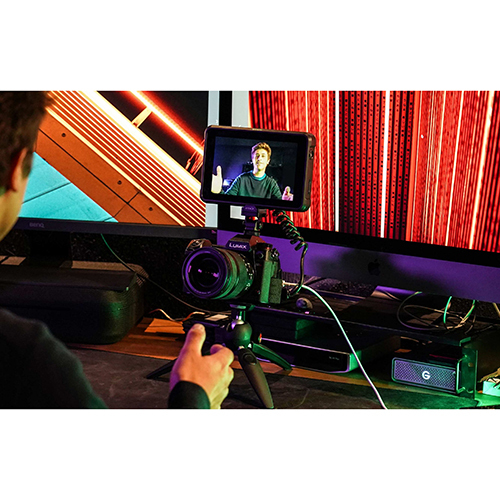

The Atomos Shinobi 7 is a great choice for anybody who is looking for a larger monitor for live monitoring such as focus pullers, influencers and Youtubers. It can be used with ‘box cameras’ without a monitor which have internal recording capabilities, as a director’s monitor for remote viewing as well as in various shooting scenarios such as underwater, and outdoor filming.
|
Dimensions (W x H x D mm) |
198 x 133 x 39 |
|
Weight |
577g / 1.04lb |
|
Mount points |
1 x Anti rotation 1/4" / 3/8 top and bottom |
|
Ambient operating temperature |
Up to 40° C |
|
Body |
Polycarbonate ABS Plastic |
|
Cooling |
Actively controlled fan and heat sink |
|
Multi-function button |
Power / lock Screen |
|
Power |
|
|
Input voltage |
6.2V - 16.8V |
|
Operating power |
5.8V - 7.2V |
|
Compatible batteries |
2 x NPF L series |
|
Built in battery |
No |
|
Battery Run time (Record) |
5200mAh - up to 2hrs, 7800mAh - up to 3hrs |
|
Continuous power |
Dual battery slots |
|
DC in connector |
Locking DC jack |
|
Dtap |
Via optional DTap to DC cable |
|
Display |
|
|
Touchscreen |
SuperAtom IPS panel (capacitive touch) |
|
Size |
7" |
|
Resolution |
1920 x 1080 |
|
PPI |
325 |
|
Bit depth |
10-bit (8+2 FRC) |
|
Backlight Type |
Edge lit |
|
Brightness (cdm2 / nits) |
2200 +/- 10% |
|
Aspect ratio |
16:9 Image Display |
|
Colour Gamut |
Rec.709 |
|
Calibration support |
Atomos Calibrator with Xrite i1 Display Pro / Plus (Retail) |
|
Colour Pipeline |
|
|
Gamma |
Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ (HDR10), HLG, Nikon N-Log |
|
Gamut |
Bt2020, DCI P3, PDCI p3 65, Sony SGamut / SGamut3 / SGamut3.cine / Canon Cinema / DCI P3 / DCI P3+ / BT2020, Panasonic V Gamut, Arri Alexa Wide Gamut Rec709, JVC LS300, Red DragonColour / DragonColour2 / RedColour2 / RedColour3 / RedColour4 / RedWideGamut |
|
3D LUT Display |
.Cube Format |
|
3D LUT Down Stream |
Loop out |
|
3DLUT 50/50 |
Yes |
|
Monitoring Modes |
Native / HLG / PQ / 3D LUT |
|
HDR output Conversion |
HLG / PQ |
|
Video Input |
|
|
HDMI |
1 x HDMI (2.0) 4Kp60 |
|
SDI |
1 x 3G SDI - 2k p60 |
|
Bit Depth |
8/10-bit Video |
|
Video Chroma Subsampling |
YCbCr 420 & 422 |
|
Video Output |
|
|
HDMI |
1 x HDMI (2.0) 4Kp60 |
|
SDI Play out |
1 x 3G SDI - 2Kp60 |
|
Video Signal Conversion |
|
|
HDMI to SDI |
Yes |
|
SDI to HDMI |
Yes |
|
Audio In/Out |
|
|
HDMI |
2ch 24-bit, input dependent |
|
SDI |
8ch 24-bit, input dependent |
|
Headphone out |
3.5mm 2ch. |
|
Timecode / Sync |
|
|
Embedded |
HDMI and SDI |
|
Resolution and Frame Rates (Record, Monitor & Playback) |
|
|
4k DCI |
Monitor Only: DCI: HDMI: 23.98p, 24p, 25p, 29.97p, 50p, 59.94p |
|
4k UHD |
Monitor Only: UHD: HDMI: 23.98p, 24p, 25p, 29.97p, 50p, 59.94p |
|
2K DCI 2046 x 1080 |
Monitor Only: DCI 2046 x 1080: SDI: 23.98p, 24p, 25p, 29.97p, 50p, 59.94p |
|
FHD 1920 x 1080 Progressive |
Monitor Only: HDMI and SDI : 23.98/24/25/29.9/30/50/59.94/60p |
|
FHD 1920 x 1080 Interlaced |
Monitor Only: 50/59.94/60i 1280 x 720p: 50/59.94/60p |
|
Recording CODEC |
|
|
CDNG |
No - Monitor only |
|
Apple ProRes RAW |
|
|
Apple ProRes |
|
|
Avid DNxHD |
|
|
Avid DNxHR |
|
|
H.265 |
|
|
H.264 |
|
|
Playback |
|
|
Playlist |
No - Monitor only |
|
Recording functions |
|
|
Pre-roll record |
No - Monitor only |
|
ISO Record |
|
|
Switched Program Record |
|
|
Timelapse |
|
|
RAW to Video Record |
|
|
Simultaneous proxy record |
|
|
4k to HD |
|
|
Supported media |
|
|
SD |

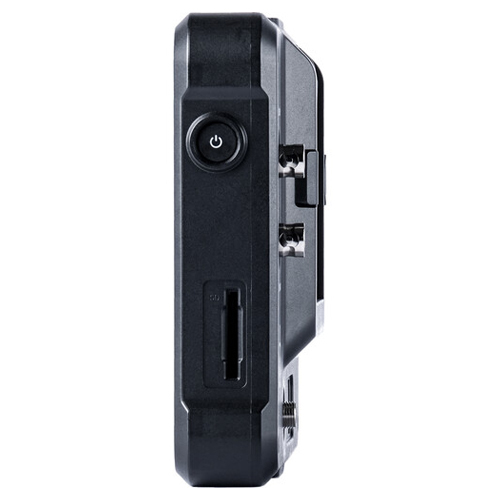

SD Card slot for LUTs / Firmware |
|
File System |
ExFAT |
|
On screen tools |
|
|
MultiScope Analysis View |
Image, selectable Waveform, Histogram, Vectorscopes and Audio bars |
|
Waveform |
Yes, 3 size / Position |
|
Histogram |
Luma and RGB |
|
RGB parade |
Yes, 3 size / position |
|
Vector scope |
Yes, 2 size / position and zoom |
|
1 x Zoom |
Yes. 1:1 Pixel mapping for 4K |
|
2 x Zoom |
Yes |
|
4 x Zoom |
Yes |
|
Focus peaking |
Colour selected / focus assist sharpening / threshold setting / Colour / mono / edges only |
|
False colour |
Yes |
|
Zebra |
Yes, adjustable |
|
Isolate Colour channel |
Blue only |
|
Cine Frame Guides |
2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3 |
|
Social Frame guides |
9:16, 1:1, 191:1, 4:5 |
|
Safe areas |
Action and Graphic |
|
Grid markers |
9 Grid |
|
Anamorphic desqueeze |
1.25x, 1.33x, 1.5x, 1.8x, 2x |
|
Display Flip |
Vertical and Horizontal selfie mode |
|
Onboard Signal Processing |
|
|
4K UHD Downscale for HD |
Yes |
|
DCI Crop |
Yes |
|
External Device Control |
|
|
Serial 2.5mm Jack |
USB-C to Serial (ATOMCAB018) |
|
USB |
Camera control for supported cameras in future firmware release |
|
RJ45 |
Camera control for supported cameras in future firmware release |
* Specifications subject to change by the manufacturer without notice
- Shinobi 7
- DC power adaptor
- Quickstart guide
