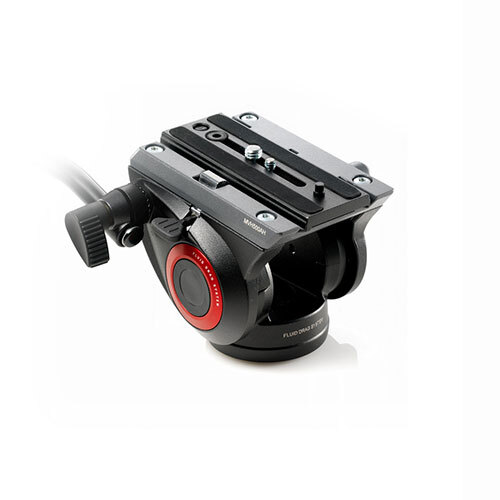

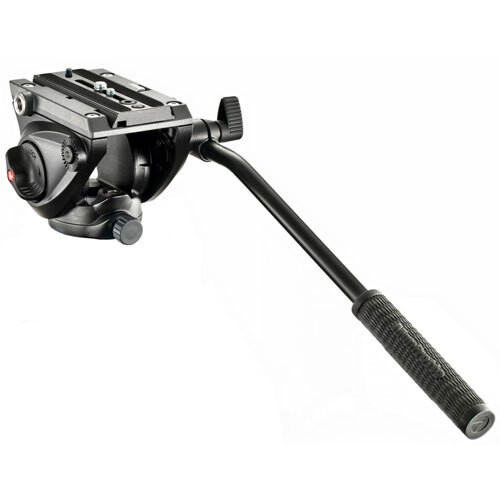

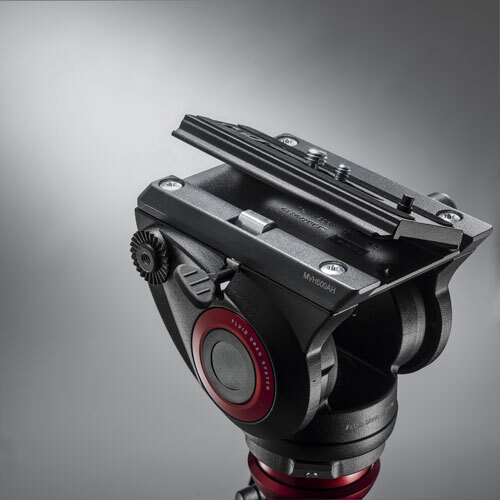

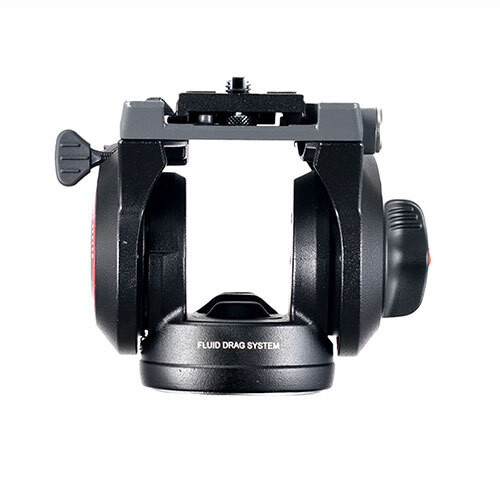

The Manfrotto MVH500AH Fluid Video Head with flat base has been optimally designed for DSLR filmmakers. The flat, wide base provides a sturdy platform for DSLR camera bodies and supports a counter-balance weight of 2.4kg (with 5kg max. weight capacity) while a sliding plate caters for larger lenses by allowing you to adjust the centre balance accordingly.

Fluid cartridges on both the pan and tilt axes feature a fixed drag design to deliver consistent, silky smooth, 360° panning and a spring loaded -70°/+90° range of lateral tilt. An updated quick-release design features a side-lock system which allows the QR plate to be conveniently inserted and released from the top rather than slid into place from behind. The head also features an Easy Link 3/8” connector to allow an external monitor, light or microphone to be securely attached for even greater artistic freedom. The aluminium alloy construction combined with Manfrotto’s Bridging Technology reduces the weight of the Manfrotto MVH500AH Fluid Video Head to only 930 grams, making it an ideal addition to any videographer’s kit.

Attaches By ¼” and 3/8” attachment type
Attachment 3/8" screw attachment type
Bubble spirit level (no.) 1 number
Centre of Gravity 55 mm
Colour Black colour
Counter Balanced Weight 2.4 kg
Independent Pan Lock Yes
Independent Tilt Lock Yes
Lateral Tilt -70° / +90° tilt range
Material Aluminium
Maximum Working Temperature 60.0 °C
Minimum Working Temperature -20.0 °C
Pan Bar Positions 2 number
Pan Bars Included (no.) 1 number
Pan Drag Fluid cartridge with fixed drag
Panoramic Rotation 360 degrees
Plate Type 500PLONG
Quick Release Yes
Safety Payload Weight 5.0 kg
Secondary Safety System Yes
Spring Loaded Counter Balance Yes
Tilt Drag Fluid cartridge with fixed drag
Weight 0.93 kg
Working height 9.5 cm


* Specifications subject to change by the manufacturer without notice
