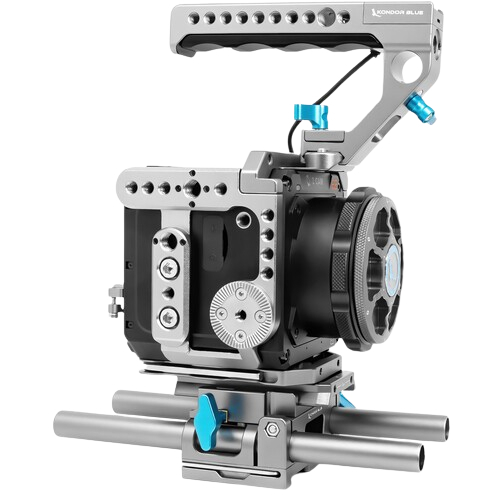

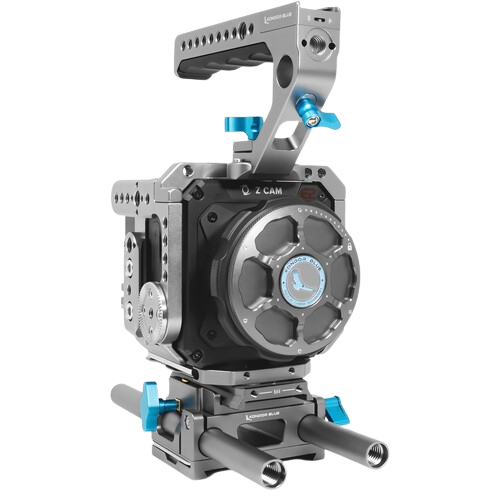

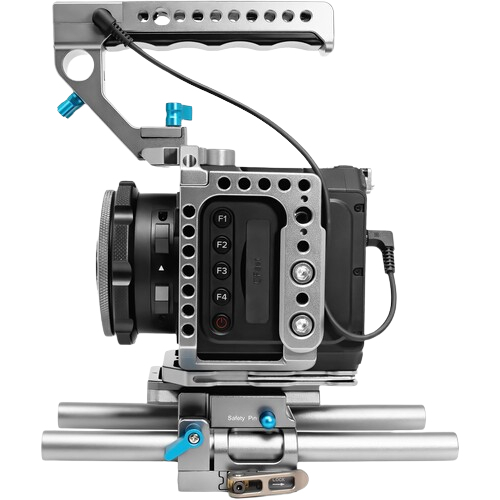

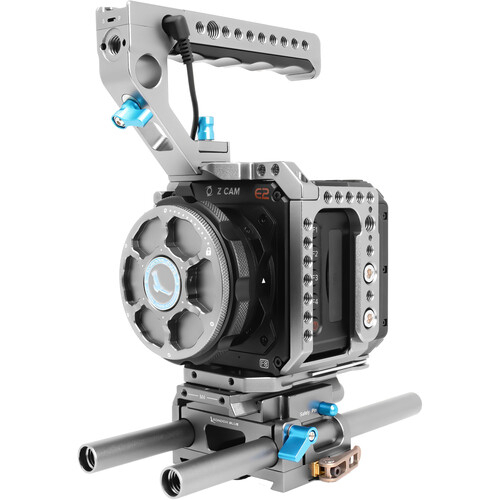

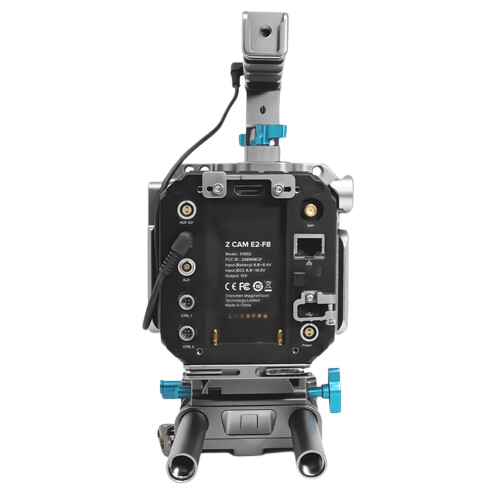

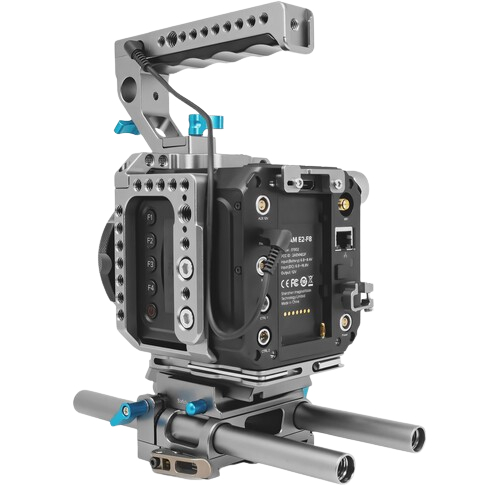

Kondor Blue Z Cam E2 Flagship Base Rig for M4/S6/F6/F8
Give your Z Cam E2 series (M4/S6/F6/F8) a solid upgrade with the space grey Z Cam E2 Flagship Base Rig from Kondor Blue. This all-inclusive kit has got you covered with a modular camera cage built specifically for your camera, a sturdy top handle for easy grip, a universal baseplate for secure mounting, a quick release camera plate for hassle-free setup, and two 8" long 15mm rods with female threaded ends for extra versatility. The cage provides a range of mounting options including ARRI-style rosettes, 1/4"-20 threads, 3/8"-16 ARRI-style anti-twist threads, NATO rails, and front lens support threads, while it mates perfectly onto the baseplate featuring an ARRI-type/501 quick release plate and 15mm rods. Give your Z Cam E2 the protection and functionality it deserves with this top-notch rig!
Kondor Blue Cage for Z Cam E2-M4/S6/F6/F8 (Space Grey)
In space grey, the Kondor Blue Cage for Z Cam E2-M4/S6/F6/F8 features a baseplate that separately attaches to the bottom of the camera, and the rest of the cage secures to the top and sides of the camera. The baseplate also offers dedicated slots on the sides for keeping an included Allen key hidden away but handy.
A rosette mount is provided on one side of the cage, and an optional second one can be attached to the other side to allow upgrading the cage with two handgrips or handgrip extensions. Three NATO rails are provided, integrated on the top, left, and right of the cage. A blue bubble level is also built-in near the top rail. HDMI and USB cable clamps are included for securing your cable connections.
The cage has numerous standard 1/4"-20 accessory threads, ARRI 3/8"-16 anti-twist threads, and 1/4"-20 and 3/8"-16 tripod mount threads. Additionally, it has four front-facing M4 threads for mounting the optional Kondor Blue Speedbooster Bracket.
Kondor Blue Cage Top Handle with Start/Stop Camera Control for Select Cameras (Space Grey)
This space grey Cage Top Handle with Start/Stop Camera Control from Kondor Blue mounts on top of your cage or top plate using its NATO clamp. This universal cheese-style handle features multiple 1/4"-20, 3/8"-16, and ARRI-style anti-twist threads, two shoe mounts, and a single 15mm rod port. The ARRI-style threads on the top feature pre-inserted 3/8"-16 to 1/4"-20 bushings so you have additional options for mounting your accessories.
The handle also features a start/stop button and a LANC port that can connect to a wide variety of camera models, such as those from Z CAM, Blackmagic, Sony, Canon, Panasonic, JVC, and more, using a separately available cable. The grip of the aluminium handle features a smooth, ergonomic design for added comfort and grip.
Quick Features
- Multiple 1/4"-20, 3/8"-16, and ARRI-style accessory threads
- Handle mounts with NATO clamp
- LANC trigger port with start/stop button
- Two shoe mounts and a single 15mm rod port for additional accessories
- Made from durable aluminium with an ergonomic grip
- Comes in space grey colour
Compatibility
- Start/stop control via Sony LANC/Panasonic protocol for Z CAM, Blackmagic, Sony, Canon, Panasonic, JVC, and more
- Cage or plate with NATO rail
- Magic arms, handles, and 15mm rod system
- Kondor Blue Mini Quick Release Plate
Kondor Blue 15mm ARRI-Standard Baseplate for BMPCC 4K/6K Cage (Space Grey)
Although featuring a fairly universal design, the space grey Kondor Blue 15mm ARRI-Standard Baseplate is designed for Kondor's Blackmagic Pocket Cinema Camera 4K/6K cages. It features an ARRI-standard dovetail and supports 15mm LWS rods. This baseplate has a side-load camera plate system, which lets you easily mount your camera from the top instead of having to slide it in from the front.
A Manfrotto 501-standard camera plate is included. It comes with 1/4"-20 and 3/8"-16 mounting screws and offers 1/4"-20 and 3/8"-16 tripod mount threads on the bottom. It's also rubber-padded to minimize twisting and prevent scratching.
Additional Features
- ARRI-standard dovetail
- 15mm LWS rod support
- Side-load camera plate system
- Manfrotto 501 standard camera plate
- 1/4"-20 and 3/8"-16 mounting screws
- 1/4"-20 and 3/8"-16 tripod mount threads
KONDOR BLUE CAGE FOR Z CAM E2-M4/S6/F6/F8 (SPACE GREY) | |
Support Type
|
Cage
|
MOUNTING | |
Accessory Mounting |
Multiple 1/4"-20 Female Thread
|
Multiple ARRI Anti-Twist 3/8"-16 Female Thread | |
4x M4 Female Thread | |
Tripod Mounting |
1/4"-20 Female Thread, 3/8"-16 Female Thread
|
Rosettes |
1x ARRI Rosette w/ M6 Female Thread
|
Rail Mounting |
3x NATO Rail
|
GENERAL | |
Weight |
0.278 kg
|
KONDOR BLUE CAGE TOP HANDLE WITH START/STOP CAMERA CONTROL FOR SELECT CAMERAS (SPACE GREY) | |
|
|
Built-In Controls
|
Remote Trigger
|
MOUNTING | |
Attachment Method |
Attaches via Rail Clamp
|
Rod Standard |
15 mm Single Rod
|
Rod Ports |
1x 15 mm Rod Port
|
Accessory Mounting |
Handle Shaft
|
Multiplex 1/4"-20 Thread | |
Multiplex 3/8"-16 Thread | |
Multiplex ARRI Anti-Twist 3/8"-16 Thread | |
Shoe Mounting |
2x Built-In Cold Shoe Slot
|
Rail Mounting |
1x NATO Rail Clamp
|
GENERAL | |
Inputs/Outputs |
1x LANC
|
Materials |
Aluminium
|
Dimensions |
12.7 x 7.6 x 2.5 cm
|
Weight |
0.170 kg
|
KONDOR BLUE 15mm ARRI-STANDARD BASEPLATE FOR BMPCC 4K/6K CAGE (SPACE GREY) | |
MOUNTING | |
Rod Standard |
15 mm LWS / 60 mm Spacing
|
Camera Mounting |
ARRI Dovetail with 1/4"-20 Male Screw, 3/8"-16 Male Screw
|
Tripod Mounting |
Baseplate
|
1/4"-20 Female Thread, 3/8"-16 Female Thread, Manfrotto 501 | |
Rod Ports |
2x 15 mm Rod Port
|
GENERAL | |
Materials |
Aluminium
|
Dimensions |
12.7 x 10.16 x 8.89 cm
|
Weight |
0.323 kg
|
PHYSICAL | |
Support Type |
Baseplate
|
Camera Compatibility |
Blackmagic Pocket Cinema Camera 4K, Blackmagic Pocket Cinema Camera 6K
|
* Specifications subject to change by the manufacturer without notice.
- Kondor Blue Cage for Z Cam E2-M4/S6/F6/F8 (Space Grey)
- Set of Attachment Screws
- HDMI Cable Clamp
- USB Cable Clamp
- Allen Key
- Flat Head Tool
- Kondor Blue Cage Top Handle with Start/Stop Camera Control for Select Cameras (Space Grey)
- 3/8"-16 to 1/4"-20 Bushing
- Kondor Blue 15mm ARRI-Standard Baseplate for BMPCC 4K/6K Cage (Space Grey)
- Brand Sticker
- 15mm Rod (8")
