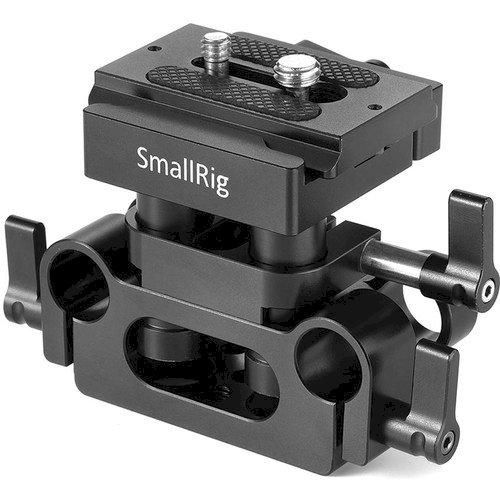

SmallRig Universal 15mm Rail Support System Baseplate 2272

This dedicated baseplate is designed for mirrorless and DSLR cameras and is adjustable in height to ensure different cameras comply with the LWS standard. To adjust the height, simply unscrew the wingnut on the side, make the adjustment and then tighten the wingnut. On the top, there is an Arca compatible QR plate and receiver; attach the QR plate to the SmallRig cage or camera tripod socket, drop it into the receiver and then tighten the knob screw. The baseplate holds SmallRig 15mm Rods 1053, where accessories like the SmallRig Lens Support 2152, SmallRig Shoulder Pad 2077, Matte Box and follow focus can be attached. Additionally, there are multiple 1/4"-20 and 3/8"-16 threaded holes on the bottom of the baseplate so tripod plates can be attached.

Compatibility:

Sony A6000/A6300/A6400/A6500/A7/A7II/A7SII/A7RII/A9/A7III/A7RIII

Panasonic GH3/GH4/GH5/G80/GX85/G7/G85/G9

Canon 5D Mark IV/M50/M5/M3/M6/EOS R/EOS RP

Fujifilm X-H1/X-T1/X-T2/X-T20

Olympus E-M1 Mark II

Nikon Z6/Z7

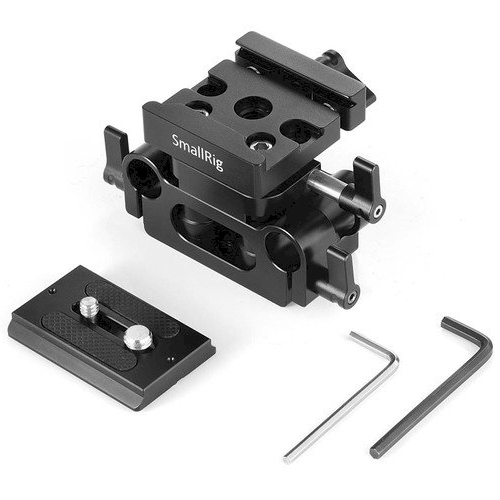

  • SmallRig Universal Baseplate with 15mm LWS Rod Support
  • 1 x Baseplate 2272
  • 2 x Hex Spanner
