Lightweight and Compact Matte Box

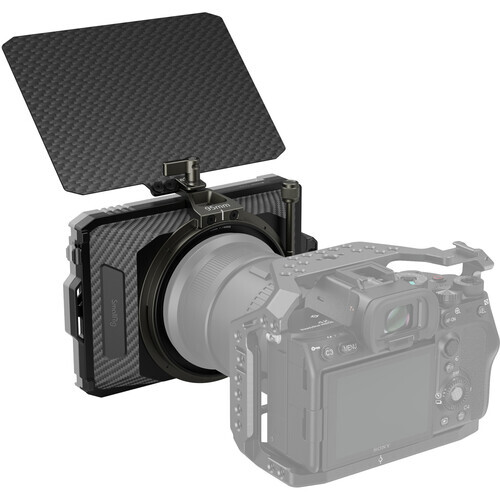

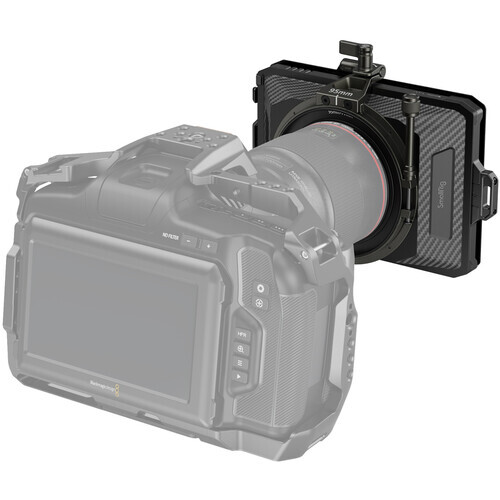

Add an even lighter and more compact matte box to your rig with the Mini Matte Box Lite from SmallRig. This clamp-on matte box weighs only 0.10 kg and is designed to fit small mirrorless or DSLR cameras. It is made from durable yet lightweight carbon fibre material, as well as plastic and aluminium components. It can accommodate multiple 4 x 5.65" filters and comes with one filter tray and four adapter rings to attach the matte box to a variety of lenses. The maximum load capacity of the matte box is 0.99 kg.

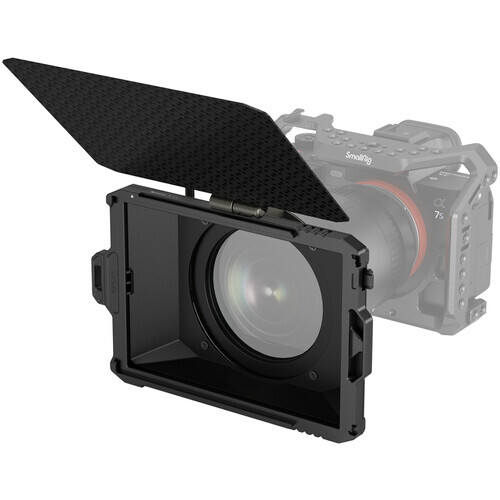

The included carbon fibre top flag helps block veiling glare or bright reflections from striking your lens, and it can be folded down to cover the front of the matte box and provide protection to the front of your lens. The matte box features a 95mm diameter opening, and the included 67, 72, 77, and 82mm threaded adapter rings allow you to use the matte box with lenses of different sizes and diameters. A separately available adapter ring kit can be used for additional lens sizes, and it also accepts circular filters up to a 92.5mm diameter.

  • Made from durable and lightweight carbon fibre, plastic, and aluminium
  • The matte box has a 95mm opening and attaches directly to the front of a lens using the included 82, 77, 72, and 67mm adapter rings
  • Multiple 4 x 5.65" filters can be added to the front of the matte box with filter trays (one is included)

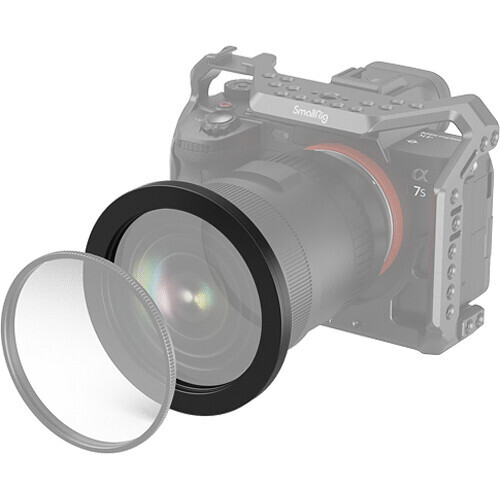

  • A circular filter up to 92.5mm can also be added, along with a filter tray
  • A carbon fibre top flag is included to block unwanted glare
  • The maximum load capacity of 0.99 kg
  • The optional adapter ring set with 52, 55, 58, 62, and 86mm rings (SmallRig 3383) is available for additional lenses
Attachment Method Lens Clamp
Filter Stages 1 x Fixed Stage (4 x 5.65")
Lens Compatibility 95 mm Opening
86 mm Opening (via Optional Adapter)
82 mm Opening (via Included Adapter)
77 mm Opening (via Included Adapter)
72 mm Opening (via Included Adapter)
67 mm Opening (via Included Adapter)
62 mm Opening (via Optional Adapter)
58 mm Opening (via Optional Adapter)
55 mm Opening (via Optional Adapter)
52 mm Opening (via Optional Adapter)
Flags 1 x Top Flag
Material Flag: Carbon Fiber
Hood: ABS, Aluminium, Carbon Fiber
Vertical Adjustment Yes
Horizontal Adjustment Yes
Tilt Adjustment Yes
Dimensions 17.6 x 13.4 x 4.65 cm
Weight 0.108 kg

* Specifications subject to change by the manufacturer without notice

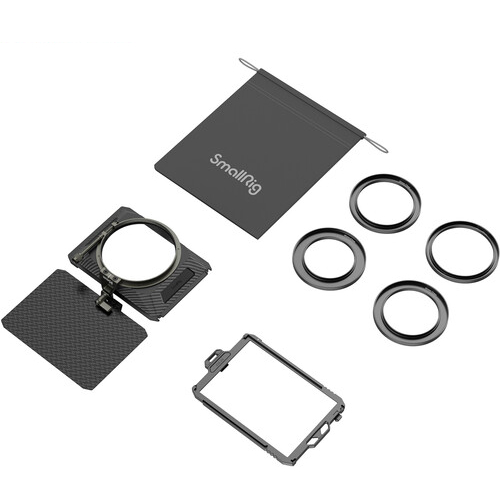

  • SmallRig Mini Matte Box Lite
  • Carbon Fiber Top Flag
  • 67mm Adapter Ring
  • 72mm Adapter Ring
  • 77mm Adapter Ring
  • 82mm Adapter Ring

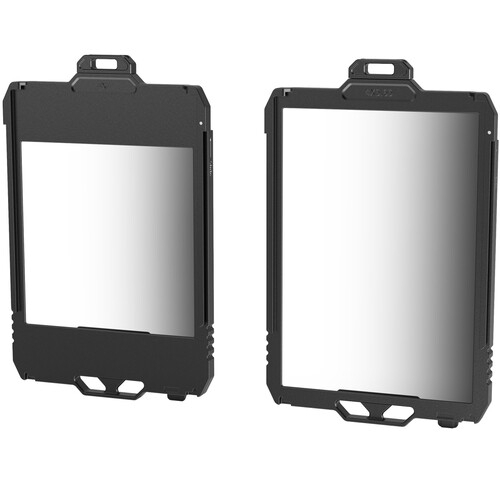

  • SmallRig Filter Tray for Mini Matte Box (4 x 5.65")
  • Storage Pouch
