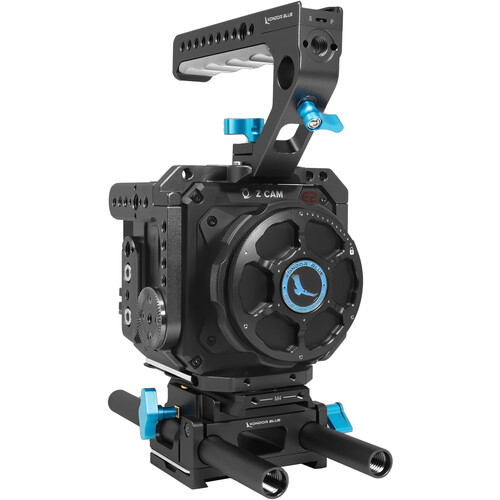

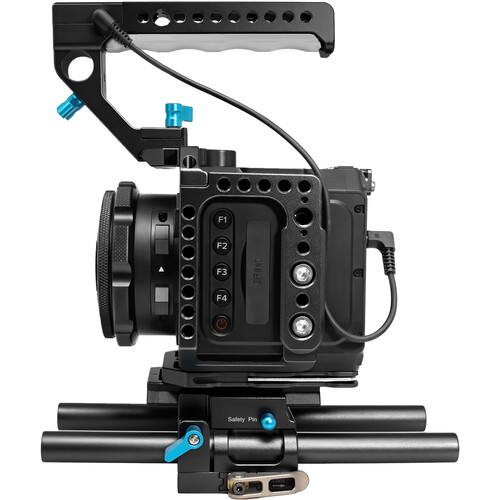

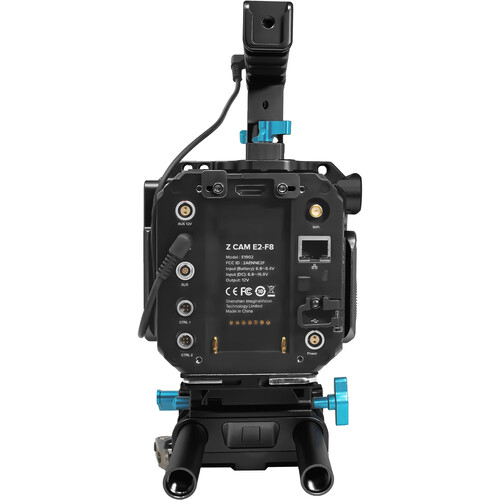

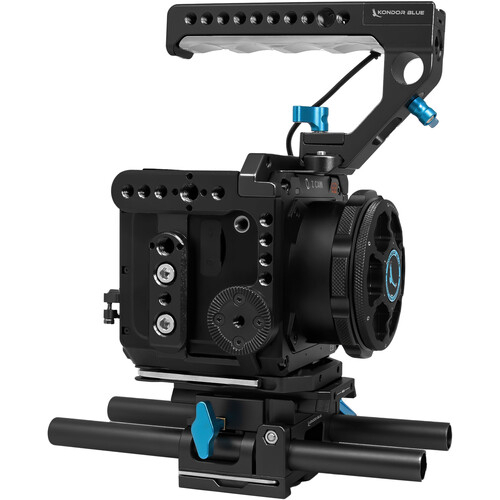

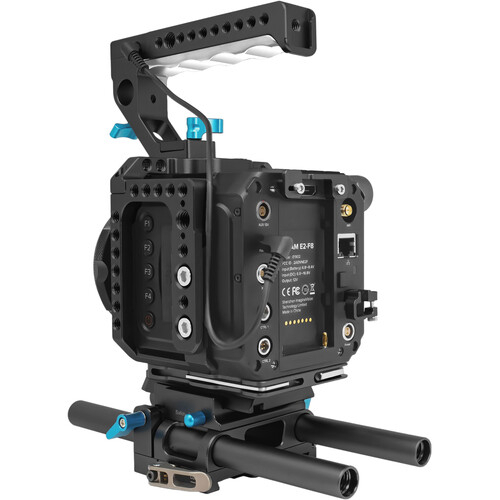

Kondor Blue Z Cam E2 Flagship Base Rig for M4/S6/F6/F8 - Black

Get your Z Cam E2 flagship cinema cameras (M4/S6/F6/F8) geared up and guarded with the raven black Z Cam E2 Flagship Base Rig from Kondor Blue. This top-of-the-line rig includes a modular camera cage, a ripper top handle, a universal baseplate, a quick release camera plate, and two 8" long 15mm rods with female threaded ends, so you can easily extend them if needed. The cage is packed with mounting options like ARRI-style rosettes, 1/4"-20 threads, 3/8"-16 ARRI-style anti-twist threads, NATO rails, and front lens support threads, while it mates onto the baseplate featuring an ARRI-type/501 quick release plate and 15mm rods. With this kit, you're all set to protect your Z Cam E2 and expand its capabilities down under!

Kondor Blue Cage Top Handle with Start/Stop Camera Control for Select Cameras (Black)

This black Cage Top Handle with Start/Stop Camera Control from Kondor Blue mounts on top of your cage or top plate using its NATO clamp. This universal cheese-style handle features multiple 1/4"-20, 3/8"-16, and ARRI-style anti-twist threads, two shoe mounts, and a single 15mm rod port. The ARRI-style threads on the top feature pre-inserted 3/8"-16 to 1/4"-20 bushings so you have additional options for mounting your accessories.

The handle also features a start/stop button and a LANC port that can connect to a wide variety of camera models, such as those from Z CAM, Blackmagic, Sony, Canon, Panasonic, JVC, and more, using a separately available cable. The grip of the aluminium handle features a smooth, ergonomic design for added comfort and grip.

Quick Features

  • Multiple 1/4"-20, 3/8"-16, and ARRI-style accessory threads
  • Handle mounts with NATO clamp
  • LANC trigger port with start/stop button
  • Two shoe mounts and a single 15mm rod port for additional accessories
  • Made from durable aluminium with an ergonomic grip
  • Comes in black colour

Compatibility

  • Start/stop control via Sony LANC/Panasonic protocol for Z CAM, Blackmagic, Sony, Canon, Panasonic, JVC, and more
  • Cage or plate with NATO rail
  • Magic arms, handles, and 15mm rod system
  • Kondor Blue Mini Quick Release Plate

Kondor Blue 15mm ARRI-Standard Baseplate for BMPCC 4K/6K Cage (Raven Black)

Although featuring a fairly universal design, the raven black Kondor Blue 15mm ARRI-Standard Baseplate is designed for Kondor's Blackmagic Pocket Cinema Camera 4K/6K cages. It features an ARRI-standard dovetail and supports 15mm LWS rods. This baseplate has a side-load camera plate system, which lets you easily mount your camera from the top instead of having to slide it in from the front.

A Manfrotto 501-standard camera plate is included. It comes with 1/4"-20 and 3/8"-16 mounting screws and offers 1/4"-20 and 3/8"-16 tripod mount threads on the bottom. It's also rubber-padded to minimize twisting and prevent scratching.

Additional Features

  • ARRI-standard dovetail
  • 15mm LWS rod support
  • Side-load camera plate system
  • Manfrotto 501 standard camera plate
  • 1/4"-20 and 3/8"-16 mounting screws
  • 1/4"-20 and 3/8"-16 tripod mount threads
KONDOR BLUE CAGE TOP HANDLE WITH START/STOP CAMERA CONTROL FOR SELECT CAMERAS (BLACK)

Built-In Controls
Remote Trigger

MOUNTING

Attachment Method
Attaches via Rail Clamp
Rod Standard
15 mm Single Rod
Rod Ports
1x 15 mm Rod Port
Accessory Mounting
Multiplex 1/4"-20 Thread
  Multiplex 3/8"-16 Thread
  Multiplex ARRI Anti-Twist 3/8"-16 Thread
Shoe Mounting
2x Built-In Cold Shoe Slot
Rail Mounting
1x NATO Rail Clamp

GENERAL

Inputs/Outputs
1x LANC
Materials
Aluminium
Dimensions
12.7 x 7.6 x 2.5 cm
Weight
0.170 kg

KONDOR BLUE 15mm ARRI-STANDARD BASEPLATE FOR BMPCC 4K/6K CAGE (RAVEN BLACK)

Support Type
Baseplate
Camera Compatibility
Blackmagic Pocket Cinema Camera 4K, Blackmagic Pocket Cinema Camera 6K

MOUNTING

Rod Standard
15 mm LWS / 60 mm Spacing
Camera Mounting
ARRI Dovetail with 1/4"-20 Male Screw, 3/8"-16 Male Screw
Tripod Mounting
Baseplate
  1/4"-20 Female Thread, 3/8"-16 Female Thread, Manfrotto 501
Rod Ports
2x 15 mm Rod Port

GENERAL

Materials
Aluminium
Dimensions
12.7 x 10.16 x 8.89 cm
Weight
0.323 kg


* Specifications subject to change by the manufacturer without notice.

  • Kondor Blue Cage Top Handle with Start/Stop Camera Control for Select Cameras (Black)
  • 3/8"-16 to 1/4"-20 Bushing
  • Kondor Blue 15mm ARRI-Standard Baseplate for BMPCC 4K/6K Cage (Raven Black)
  • Brand Sticker
  • Cage for Z Cam (Raven Black)
  • 15mm Rod (8")
