Kondor Blue Sony A7 Series Base Rig for A7S3/A7R4 - Black
SKU code: 52139
- For Sony a7S II/III, a1, a7 IV, & a7R IV
- Full Cage with Remote Trigger Top Handle
- ARRI/Manfrotto 501 Universal Baseplate
- Sony E-Mount Cine Body Cap
- Two 8" PPSh 15mm Aluminium Rods
You May Also Like
The Essentials:
Miller CX8 Fluid Head with Toggle 2-Stage Alloy Tripod System
$4,795.00
1300 365 220
Action Mounts:
Bags, Cases & Straps:
Batteries & Chargers:
Tripods & Monopods:
Gimbals & Stabilisers:
Flashes & Lighting:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Audio Equipment:
Studio Lighting:
Cables & Connectivity:
Storage:
Other:

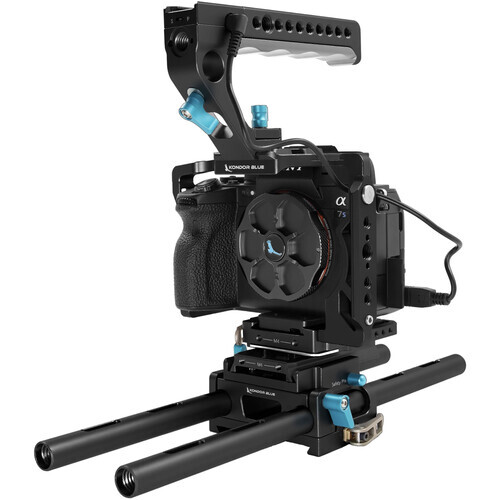

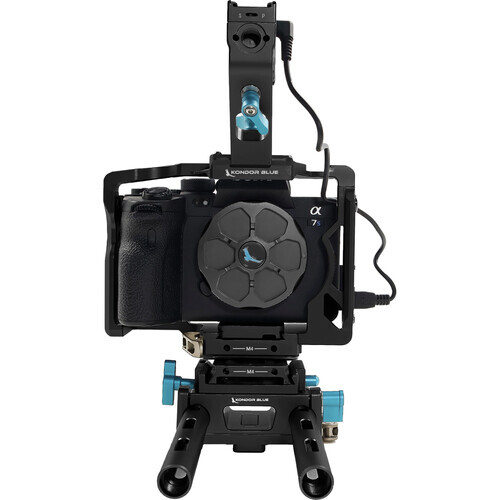

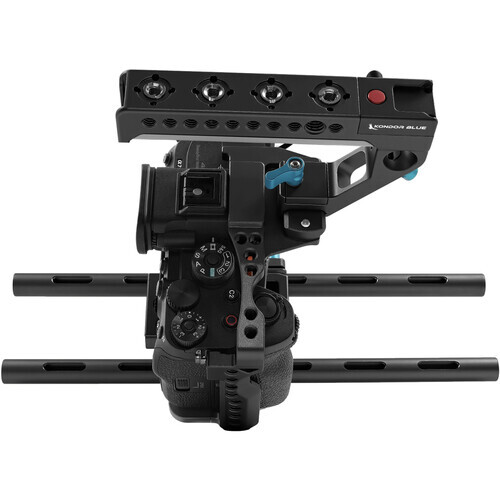

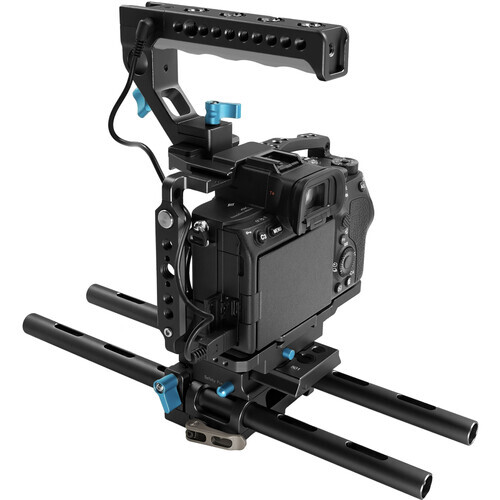

Kondor Blue Sony A7 Series Base Rig for A7S3/A7R4 - Black
Forge a sturdy foundation for your Sony Alpha series mirrorless camera cinema kit with the Raven Black Base Rig from Kondor Blue. This rig comprises a full cage with a remote trigger top handle, an ARRI/Manfrotto 501-compatible universal baseplate, a body cap, and a pair of 8" 15mm aluminium rods.
Kondor Blue Full Camera Cage with Top Handle for Sony a1/a7 Series (Raven Black)
Custom-fit to select Sony a1 and a7 cameras, this raven black Full Camera Cage with Top Handle from Kondor Blue adds multiple mounting points for configuring your rig. The cage still maintains access to your camera's ports and controls. Multiple 1/4"-20 and 3/8"-16 threads with ARRI locating pins all around the cage allow you to attach articulating arms and adapters.
A cold shoe at the top of the cage can accommodate a wireless receiver or shotgun microphone. Two NATO rails can attach other accessories like the included top handle for even more mounting options and a start-stop record button. A built-in Arca-Swiss plate system secures the camera in the cage and offers a quick release configuration.
Camera Compatibility
- Sony a1
- Sony a7, a7 IV, a7R IV, a7S III
Kondor Blue 15mm ARRI-Standard Baseplate for BMPCC 4K/6K Cage (Raven Black)
Although featuring a fairly universal design, the raven black Kondor Blue 15mm ARRI-Standard Baseplate is designed for Kondor's Blackmagic Pocket Cinema Camera 4K/6K cages. It features an ARRI-standard dovetail and supports 15mm LWS rods. This baseplate has a side-load camera plate system, which lets you easily mount your camera from the top instead of having to slide it in from the front.
A Manfrotto 501-standard camera plate is included. It comes with 1/4"-20 and 3/8"-16 mounting screws and offers 1/4"-20 and 3/8"-16 tripod mount threads on the bottom. It's also rubber-padded to minimize twisting and prevent scratching.
Kondor Blue Aluminium Body Cap for Sony E-Mount Cameras (Black)
Protect your camera's mount and sensor with this Aluminium Body Cap for Sony E-Mount Cameras, in black, from Kondor Blue. The engraved mounting indicators show you which way to turn the cap while holding it by its edge-gripping ridges. The cap locks into place in the camera's mount, and the anodized finish protects the cap from scratches and scuffs.
Kondor Blue PPSH 15mm Rods (Pair, Black, 8")
Add a pair of standard 15mm rods to your rig with this two-pack of 8" PPSH 15mm Rods from Kondor Blue. These black aluminium threaded rods feature PPSH cutouts throughout as part of the design, making them lighter yet still durable.
Each 15mm rod can be used to support various accessories such as follow focus systems, servo motors, lens supports, battery mounts, and more. For custom lengths, multiple units can be combined using optional Kondor M12 rod extension screws.
KONDOR BLUE FULL CAMERA CAGE WITH TOP HANDLE FOR SONY A1/A7 SERIES (RAVEN BLACK) | |
Support Type
|
Cage
|
Grip Type |
Topside Handgrip
|
Camera Compatibility |
Sony a1, Sony a7, Sony a7 IV, Sony a7R IV, Sony a7S III
|
MOUNTING | |
Rod Standard |
15 mm Single Rod
|
Accessory Mounting |
Cage
|
Multiple 1/4"-20 Female Thread | |
Multiple ARRI Anti-Twist 3/8"-16 Female Thread | |
M4 Female Thread | |
Top Handle | |
Multiple 1/4"-20 Female Thread | |
ARRI Anti-Twist 3/8"-16 Female Thread | |
Camera Mounting |
Arca-Type Plate
|
Tripod Mounting |
1/4"-20 Female Thread, 3/8"-16 Female Thread
|
Rod Ports |
Top Handle
|
15 mm Rod Port | |
Shoe Mounting |
Cage
|
Cold Shoe | |
Top Handle | |
Cold Shoe | |
Rail Mounting |
NATO Rail
|
GENERAL | |
Dimensions |
12.7 x 7.6 x 2.5 cm (Cage)
|
Weight |
0.170 kg
|
KONDOR BLUE 15mm ARRI-STANDARD BASEPLATE FOR BMPCC 4K/6K CAGE (RAVEN BLACK) | |
Support Type
|
Baseplate
|
Camera Compatibility |
Blackmagic Pocket Cinema Camera 4K, Blackmagic Pocket Cinema Camera 6K
|
MOUNTING | |
Rod Standard |
15 mm LWS / 60 mm Spacing
|
Camera Mounting |
ARRI Dovetail with 1/4"-20 Male Screw, 3/8"-16 Male Screw
|
Tripod Mounting |
Baseplate
|
1/4"-20 Female Thread, 3/8"-16 Female Thread, Manfrotto 501 | |
Rod Ports |
15 mm Rod Port
|
GENERAL | |
Materials |
Aluminium
|
Dimensions |
12.7 x 10.16 x 8.89 cm
|
Weight |
0.323 kg
|
KONDOR BLUE ALUMINIUM BODY CAP FOR SONY E-MOUNT CAMERAS (BLACK) | |
GENERAL | |
Camera Body Mount |
Sony E
|
Material |
Aluminium
|
KONDOR BLUE PPSH 15mm RODS (PAIR, BLACK, 8") | |
Diameter
|
1.5 cm
|
Length |
20.3 cm
|
Material |
Aluminium
|
Thread Type |
Female / Female
|
Thread Size |
12 mm
|
Number of Rods |
2
|
* Specifications subject to change by the manufacturer without notice.
- Kondor Blue Full Camera Cage with Top Handle for Sony a1/a7 Series (Raven Black)
- Top Handle
- Quick Release Plate
- Kondor Blue 15mm ARRI-Standard Baseplate for BMPCC 4K/6K Cage (Raven Black)
- Brand Sticker
- Kondor Blue Aluminium Body Cap for Sony E-Mount Cameras (Black)
- Kondor Blue PPSH 15mm Rods (Pair, Black, 8")
Manufacturer Warranty
This product comes with a
12 month Australian warranty
from Kondor Blue Australia
Want to read more about warranties?
