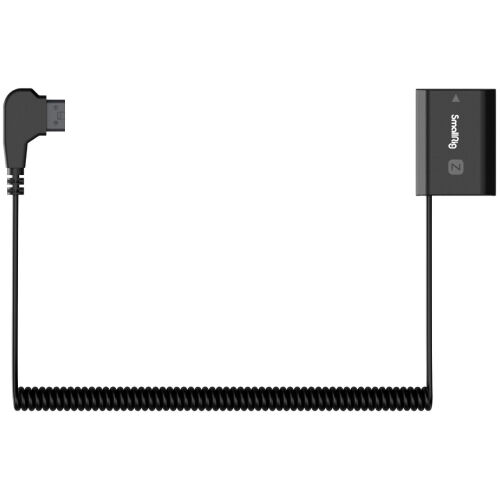

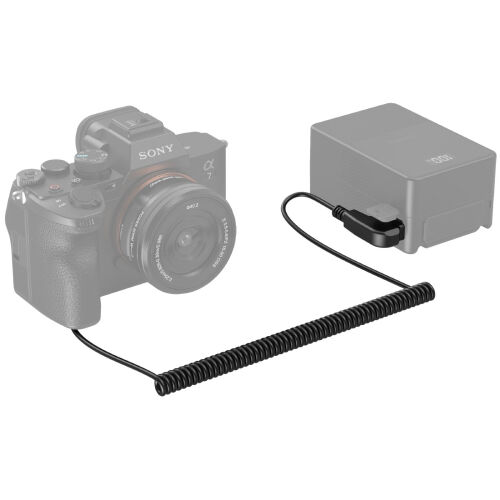

SmallRig D-Tap to NP-FZ100 Dummy Battery Power Cable 4253B

The SmallRig D-Tap to NP-FZ100 Dummy Battery Power Cable 4253B provides a continuous power supply, eliminating the need to change batteries during recordings. Featuring an upgraded chip with full decoding and no pop-up window, it ensures high safety and is fully compatible with all cameras. Designed to match the size of the original NP-FZ100 battery, it allows for easy battery changes without issues. With overvoltage, overheating, and overcharge short-circuit protection, as well as fire-resistant PVC and ABS materials, this power cable offers a safe and reliable solution for your filming needs.

Barcode (UPC / EAN): 6941590014906

Items Parameters
Output Voltage (Max.) 8.4V
Output Voltage (Min.) 8.0V
D-tap Input Voltage 9.6-20V
D-tap Input Current 2A (Min.)
Output Current 2A Constant Current Output (Max.)
Output Current (Max.) ≤3.0A
Overcurrent Protection 3.8~4.9A
Operating Temperature 0°C~45°C
Storage Temperature -20°C~+6°C
Material ABS 50%, PVC 50%
Inputs D-Tap Male, Cable Length 2m ± 50mm (Extended)
Product Size 50.8×3.87×2.27cm
Product Weight 0.071 ± 0.005kg


* Specifications subject to change by the manufacturer without notice.

  • SmallRig D-Tap to NP-FZ100 Dummy Battery Power Cable 4253B
  • D-tap to NP-FZ100 Dummy Battery Power Cable
  • User Manual

Manufacturer Warranty

This product comes with a

12  month Australian warranty

from SmallRig Australia
