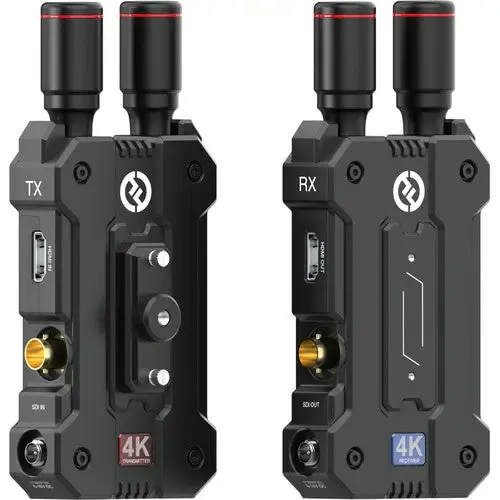

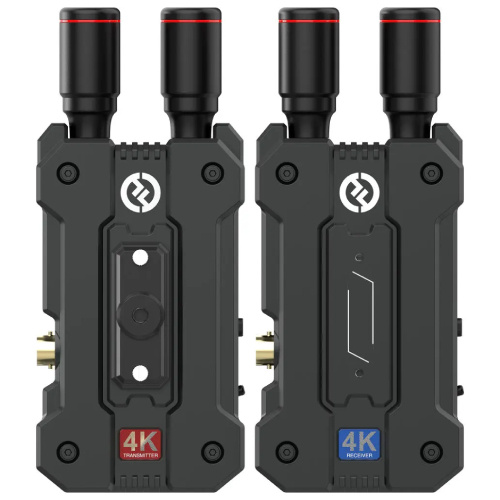

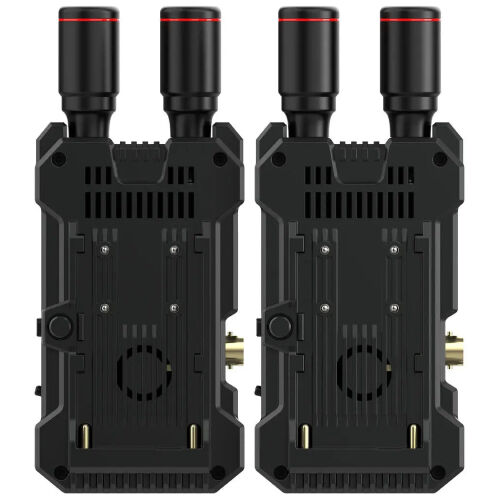

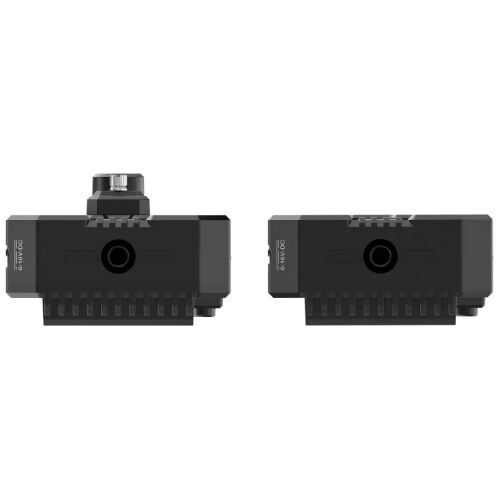

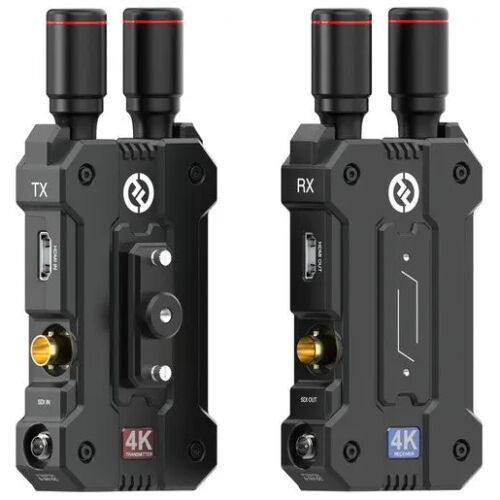

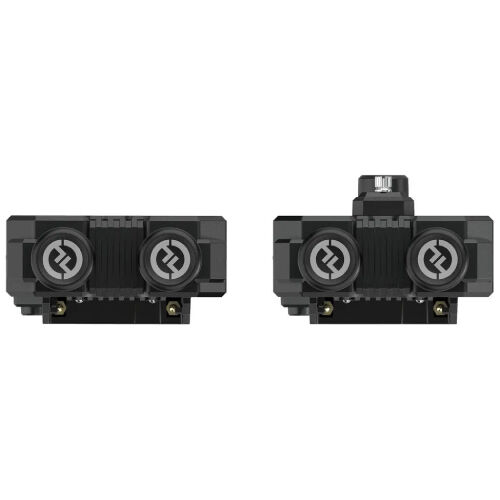

Hollyland Mars 4K Video Wireless Transmission System

The Hollyland Mars 4K Wireless Video Transmission System delivers up to 150m line-of-sight range with an ultra-low latency of just 0.06 seconds. Designed to offer the high performance and reliability you expect from Hollyland at a highly competitive price, it supports 4K resolutions up to 3840 x 2160 via HDMI in and out, alongside industry-standard 3G-SDI in and out for versatile wireless video operations.

The Mars 4K supports UHD 4K30 video transmission for the discerning videographer looking for high-resolution production capability. The Mars 4K also supports FHD and HD formats at varying frame rates such as 24, 30, and 60p.

The Mars 4K achieves a long line-of-sight range of 150m and an ultra-low latency of 0.06s. Its upgraded dual-core codec chip is capable of a 12 Mb/s data transfer rate.

The Mars 4K supports HDMI and SDI input and output for expanded connectivity and compatibility. The SDI ports provide expanded frame rate flexibility for broadcast and production frame rate standards and compatibility through production and postproduction.

The Mars 4K features corrosion and wear resistance for durability. The design form factor optimises operational functionality for fast configurations with wiggle-free, bullet-styled antennas attached.

Channel assignment options allow for interference-free transmission. A stable connection is possible automatically upon startup. An intelligent channel scan helps determine which ones are occupied and selectable.

The Mars 4K features a colour touch LCD with a user-friendly UI design that enables quick configuration and status checks. Its gamepad-styled button dramatically improves the operational setup experience.

The Mars 4K supports various DC power options: 6 to 16 VDC coax input, L-series/NP-F batteries, and USB Type-C chargers.

Antenna Ports
 Transmitter/Receiver: 2 x RP-SMA Female
Video Transmitter: 1 x HDMI Type A Input
  Transmitter: 1 x BNC Input
  Receiver: 1 x HDMI Type A Output
  Receiver: 1 x HDMI Type A Output
Embedded Audio HDMI/SDI
Power Transmitter/Receiver: 1 x Coax Input
  Transmitter/Receiver: 1 x USB Type-C Input
Wireless Range 150m (Line-of-Sight)
Channel Bandwidth 20 MHz
Latency 0.06 sec
Video Format HDMI
  UHD 4K: 30
  1080p: 60/30/24
  SDI
  1080p: 60/59.94/30/29.97/24/23.98
Timecode Support Yes
DC Input Power 6 to 16 VDC


* Specifications subject to change by the manufacturer without notice.

  • Hollyland Mars 4K Video Wireless Transmission System
