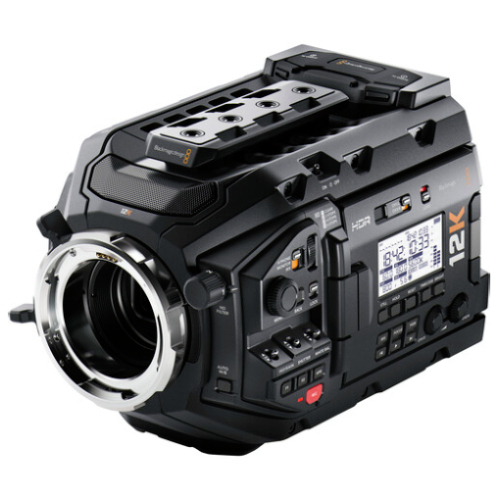

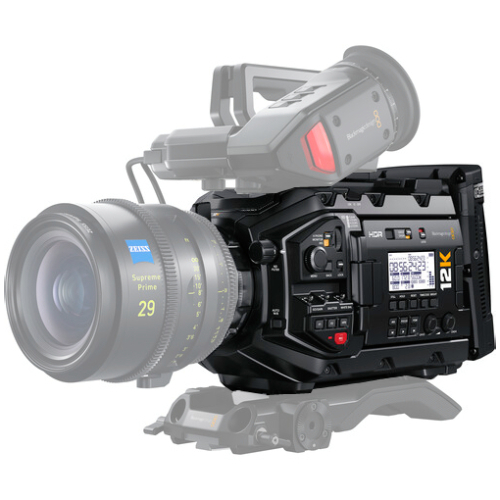

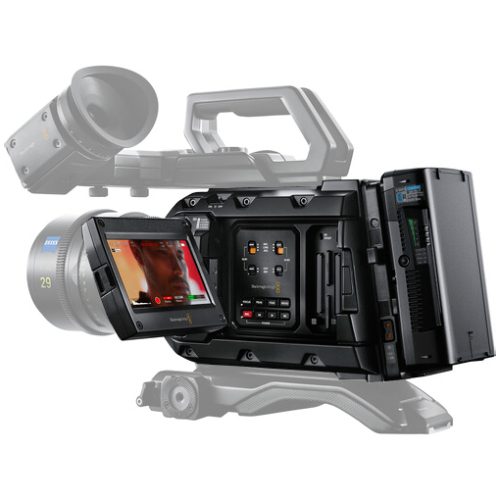

Blackmagic Design URSA Mini Pro 12K Overview

URSA Mini Pro 12K: Digital Film Revolution

Achieve cine-style video recording at 12K with the URSA Mini Pro 12K Digital Cinema Camera from Blackmagic Design. This pro video camera features a 12,288 x 6480 12K Super35 sensor, a new colour science, and up to 14 stops of dynamic range to create incredibly detailed images. The URSA Mini Pro 12K records up to 80MP per frame in Blackmagic Raw and offers a range of recording options, including dual CFast 2.0 card capture and high-speed USB Type-C output. You can record up to 60 fps in 12K 17:9 full sensor, up to 75 fps in 12K 2.4:1, 120 fps in 8K, and up to 240 fps in 4K Super16.

Rich Film Look with Digital Definition

The URSA Mini Pro 12K's massive resolution gives you the immersive detail, wide dynamic range, and deep Colour of film combined with an incredible definition around objects that is perfect for chromakeying, VFX, and IMAX imaging. Oversampling from 12K down to 8K or 4K both improves Colour and eliminates aliasing for an ultra-smooth look.

Super35 12K Sensor Delivers a Cinematic View

The URSA Mini Pro 12K's new sensor has a native resolution of 12,288 x 6480 that produces a whopping 80 MP per frame. This sensor is designed with equal representations of red, green, and blue pixels, an 800 native ISO, and 14 stops of dynamic range. In-sensor scaling provides 8K and 4K rates up to 110 fps without cropping or a change in the field of view. The 12K sensor also enables you to reframe shots in the post to get an 8K or 4K multicamera look using a single camera.

Interchangeable PL Lens Mount

  • The front of the URSA Mini Pro 12K sports an interchangeable PL lens mount, enabling you to choose from an array of current and vintage pro cine lenses from multiple manufacturers.
  • Canon EF and Nikon F mounts are available separately for shooters who have their own glasses.

Generation 5 Colour Science

The Gen 5 Colour Science's new film curve takes advantage of the huge amounts of Colour data produces by the URSA Mini Pro 12K's sensor. The result is more attractive skin tones and improved Colour saturation for images like neon signs and car taillights.

Efficient 12-Bit Raw Workflow in 12K with Blackmagic Raw

A new codec enables you to use Blackmagic Raw to edit your URSA Mini Pro 12K footage on a laptop and to edit in any resolution without needing to render before your final version.

Lightweight, Ergonomic Form

  • An evenly weighted, lightweight yet robust magnesium alloy design makes the URSA Mini Pro 12K perfect for either handheld work or tripod-based shots.
  • Additional camera features include 12G-SDI input and output, a 4" fold-out display, built-in ND filters, ergonomic controls, timecode and reference input, and 48V phantom power XLR audio.
  • A digital slate function and lens metadata capture ease your URSA Mini Pro 12K workflow transition from capture to post.
  • Camera setup 7.0 includes Blackmagic Raw stills capture and broadcast lens support.

Two Encoding Methods

Choose between Constant Quality and Constant Bitrate encoding as best suits your need. Use constant quality Q0 or Q5 options or the new Q1 and Q3 choices to lock the quality level and enable compression levels to adapt, matching the detail levels of each scene. Turn to Constant Bit Rate 5:1, 8:1, and 12:1 options or the new 18:1 choice when you prefer optimal imaging with predictable and consistent file sizes.

Flexible, High-Bandwidth Recording Options

  • Dual built-in CFast 2.0 and UHS-II SD card slots and a SuperSpeed USB Type-C expansion port provide three methods for capturing 12K video.
  • A "Record Raw on 2 Cards" option enables you to record across two cards simultaneously at speeds up to an impressive 900 MB/s to two CFast 2.0 cards, or to 500 MB/s to two UHS-II SD cards.
  • The third option is capturing to NVMe SSD drives via a USB Type-C 3.2 Gen 2 port at rates up to 10 Gb/s.
Lens Mount ARRI PL
Lens Communication Yes
Sensor Resolution Effective: 79.6 Megapixel (12,288 x 6480)
Sensor Type 27.03 x 14.25 mm (Super35) CMOS
Built-In ND Filter Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters
Capture Type Stills & Video
Shutter Type Electronic Rolling Shutter
ISO Sensitivity 125 to 3200
Advertised Dynamic Range 14 Stops
Internal Recording Modes Blackmagic RAW 12-Bit
12288 x 6480 up to 60.00 fps [72 to 578 Mb/s]
11520 x 6480 up to 60.00 fps
12288 x 5112 up to 75 fps
7680 x 6408
8192 x 4320 [32 to 258 Mb/s]
7680 x 4320
8192 x 3408 up to 160 fps
5120 x 4272 up to 160 fps
6144 x 3240 [18 to 145 Mb/s]
4096 x 2160 up to 240 fps [8 to 65 Mb/s]
3840 x 2160
4096 x 1704 up to 160 fps
2560 x 2136 up to 160 fps
External Recording Modes Raw via USB
12288 x 6480
8192 x 4320
6144 x 3240
4096 x 2160
Sensor Crop Modes Super35 / APS-C
Fast-/Slow-Motion Support Yes
Broadcast Output NTSC/PAL
Built-In Microphone Type Stereo
Audio Recording 2-Channel 24-Bit 48 kHz
Aspect Ratio 1:1, 2:1, 4:3, 4:5, 16:9
Image File Format Raw
Media/Memory Card Slot Dual Slot: CFast (CFast 2.0)
Video I/O 1 x BNC (12G-SDI) Input
1 x BNC (12G-SDI) Output
1 x BNC (3G-SDI) Output
Audio I/O 2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Output
1 x 1/8" / 3.5 mm TRRS Headphone/Mic Input/Output
Power I/O 1 x XLR 4-Pin Input
1 x Molex 12-Pin Input/Output
1 x XLR 4-Pin (12VDC) Output
Other I/O 1 x USB-C (USB 3.2 / 3.1 Gen 2)
1 x USB-C Data Input
Mobile App Compatible Yes
*As of January 2023: Check with the manufacturer for the most up-to-date compatibility
Size 10.16 cm
Display Type Articulating Touchscreen LCD
Secondary Display Side: Status Display
Focus Type Auto and Manual Focus
Focus Mode Automatic, Manual Focus
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 113°F / -20 to 45°C
Operating Humidity 0 to 90%
Accessory Mount 4 x 1/4"-20 Female
1 x ARRI/Hirth Rosette
Dimensions (W x H x D) 23.4 x 15.04 x 14.91 cm
Weight 2.55 kg

* Specifications subject to change by the manufacturer without notice

  • Blackmagic Design URSA Mini Pro 12K PL Mount
  • PL Lens Mount
  • Port Cap
  • Power Supply
  • DaVinci Resolve Studio Activation Key
