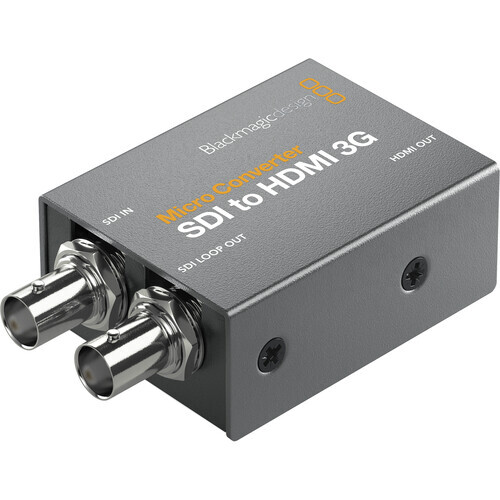

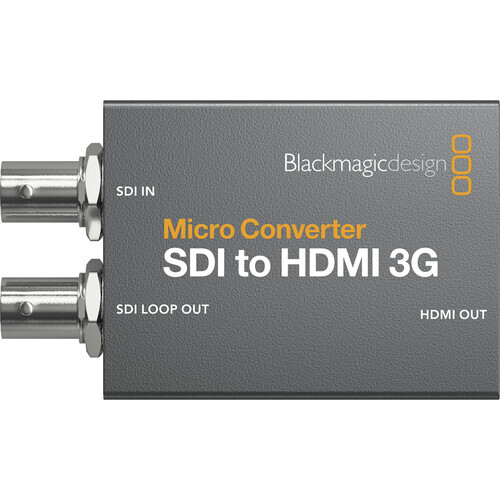

SDI to HDMI 3G Micro Converter

This ultra-compact and robust Blackmagic Design Micro Converter SDI to HDMI 3G allows you to use HDMI-input monitors and TVs for production monitoring. It features one SD/HD/3G-SDI input, one HDMI output, and one SD/HD/3G-SDI loop output. It also has a 17-point 3D LUT to calibrate HDMI- or SDI-input monitors and can output a LUT for viewing via the SDI loop output. Plus, it has automatic SD, HD, and Level A and B SDI detection and supports a wide range of pro broadcast resolutions including cine-style 48 fps.

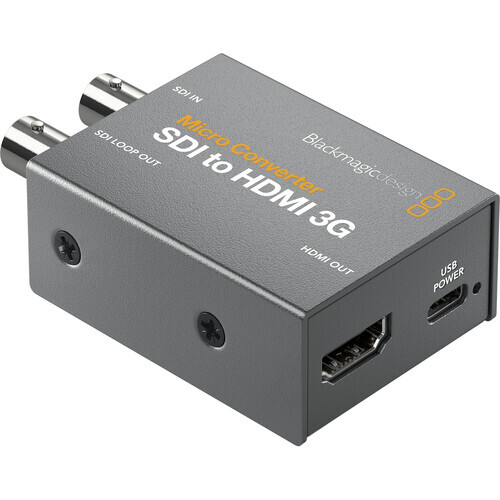

This pocket-sized converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the SDI to HDMI 3G converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. You can also power this converter using the included 100-240 VAC power supply, complete with four international socket adapters.

Features

HDMI & SDI Outputs

  • One SD/HD/3G-SDI input
  • One HDMI output and one SD/HD/3G-SDI loop output

Compact, Rugged Design

  • Robust metal housing and rugged connectors
  • USB Type-C port for powering via a compatible component like a monitor or laptop
  • Updatable via the USB Type-C port and your Mac or PC

3D LUT Support

  • Supports a 7-point 3D LUT for colour calibrating your monitor, television, or projector
  • Outputs LUT for monitoring via SDI loop output

Wider Resolution Support

  • SDI support up to DCI 2Kp60
  • HDMI support up to 1080p60

Embedded Audio

  • Supports embedded HDMI input and embedded SDI output

LED Indicators

  • LED indicators for video and power signals

Versatile Power Options

  • Power from a monitor, laptop, or other component using the USB Type-C port
  • Includes a 100-240 AC power supply with four socket adapters

Barcode (UPC / EAN): 9338716007183

Video Inputs 1 x BNC (3G-SDI)
Video Outputs 1 x BNC (3G-SDI) (Loop Output)
1 x HDMI
Other I/O 1 x USB-C Input
Input Video Format SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF 25/29.97/30 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 59.94 fps
576i / 625 lines 50 fps
Output Video Format SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF 25/29.97/30 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
HDMI (8/10-Bit 4:2:2 RGB, YUV)
1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
Embedded Audio HDMI/SDI

STANDARDS

Video Standard Compliance SMPTE 259M/292M/296M/424M/425M-A/425M-B
HDCP Support Version 2.2

HARDWARE

Tally Light Yes
OS Compatibility macOS 10.14.15 or Later
Windows 10

POWER

Power I/O 1 x USB-C (4.4 to 5.2 VDC) Input
Power Consumption 2.5 W

ENVIRONMENTAL

Operating Temperature 32 to 72°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Operating Humidity 0 to 90%

GENERAL

Dimensions 7.64 x 4.57 x 2.48 cm
Weight 0.15 kg



* Specifications subject to change by the manufacturer without notice

  • Blackmagic Design Micro Converter SDI to HDMI 3G (with Power Supply)

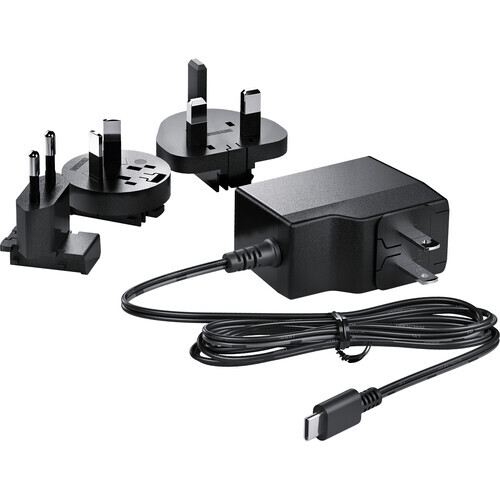

  • 100-240 VAC Power Supply
  • 4 x Socket Adapter
