Kondor Blue URSA Mini Ultimate Rig - 12K/4.6K/4K - Black

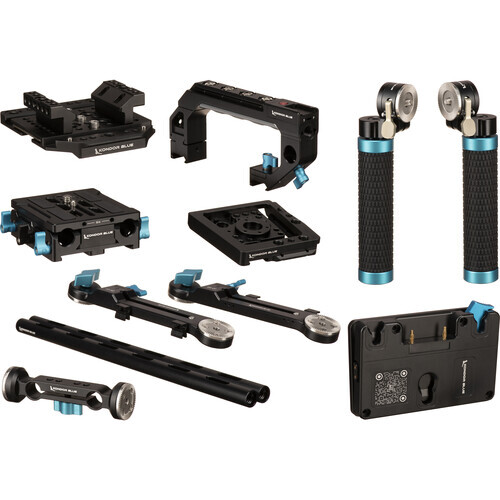

Add protection, handheld functionality, and a variety of accessories to your Blackmagic Design URSA Mini 12K, 4.6K, or 4K cinema camera with this Raven Black Ultimate Rig from Kondor Blue. This modular rig includes a two-piece camera cage, a trigger top handle, a 15mm ARRI bridge plate, a Gold mount battery plate, two rosette extension arms, two rubber handgrips, and two 12" long 15mm rods.
The cage mounts on two sides of the camera and allows you to access all the camera's ports and controls, while each piece can be used on its own or with the other components. It features an ARRI-style rosette, a shoe mount, and multiple mounting threads on the side, and the top plate features multiple threads, two NATO rails, and a bubble level. The durable metal Gold mount battery plate mounts onto the back of the camera and provides a slot for a high-capacity Gold mount battery to power your rig.

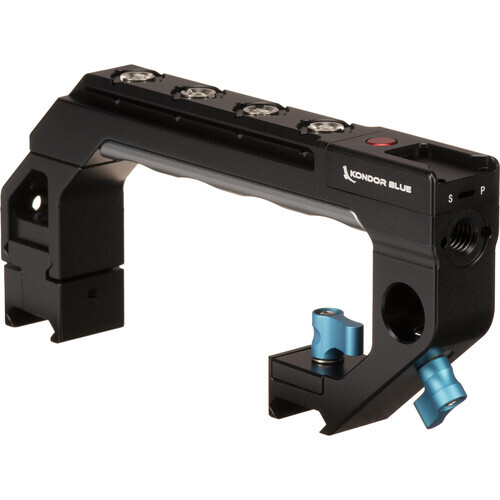

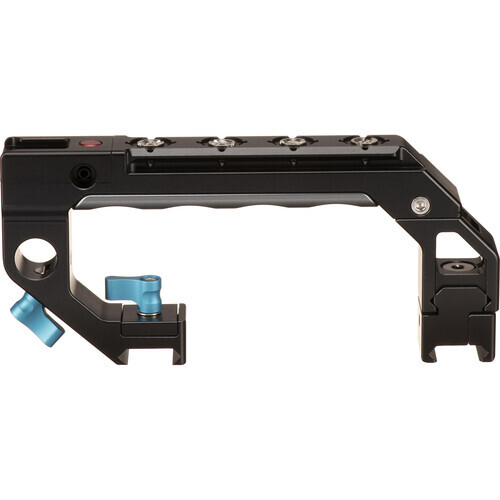

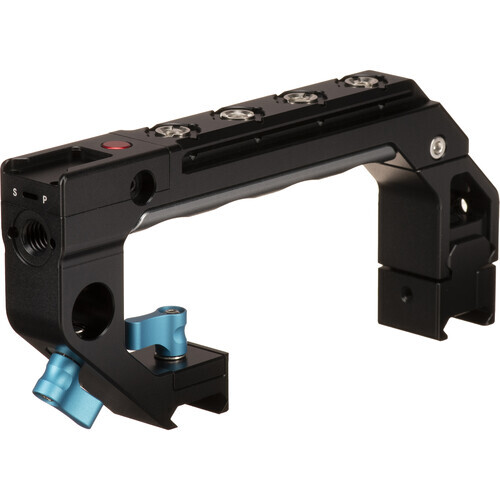

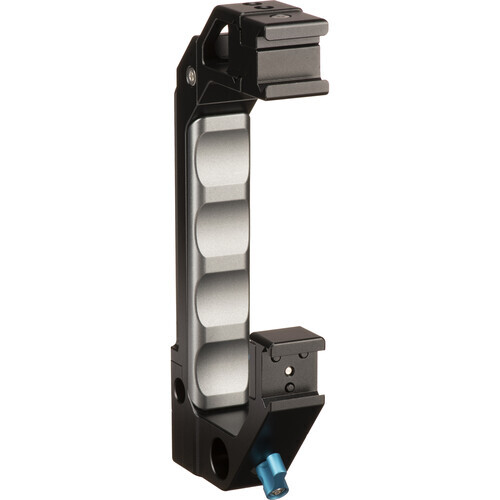

The top handle mounts onto the dual NATO rails using its dual NATO clamp system, and it provides start/stop trigger communication with the URSA Mini via a LANC cable. It also features a shoe mount and 1/4"-20 and 3/8"-16 ARRI-style accessory threads for additional accessories.

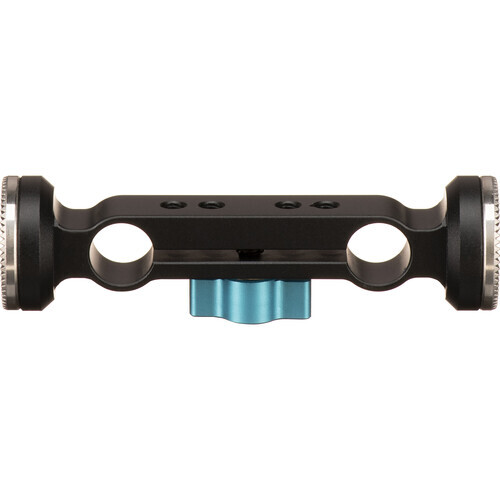

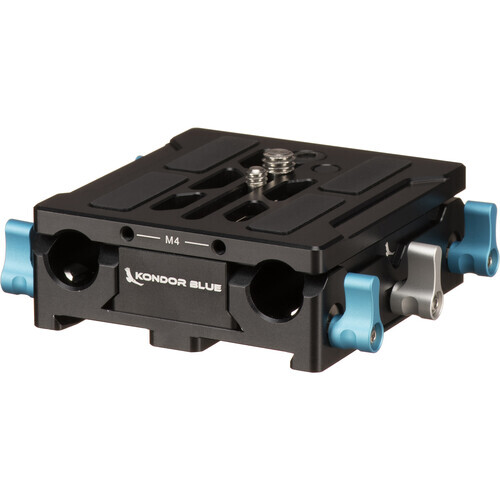

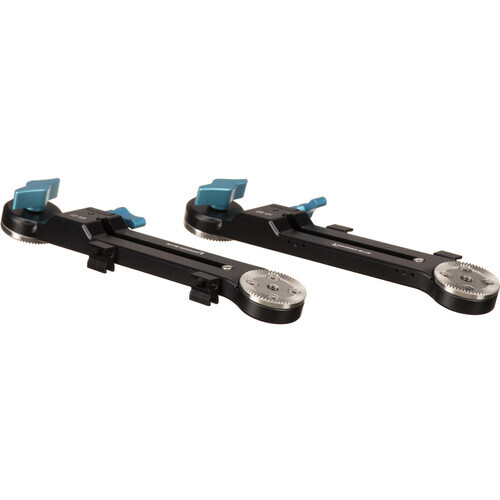

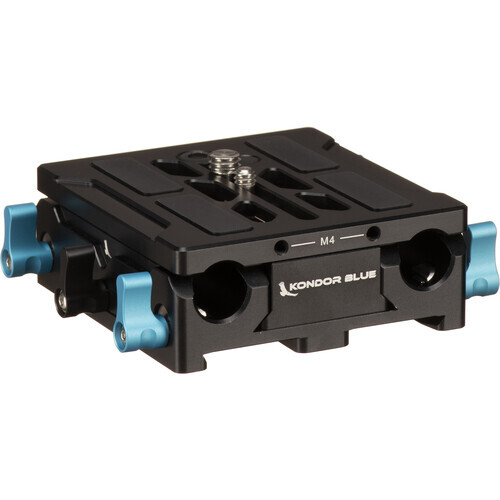

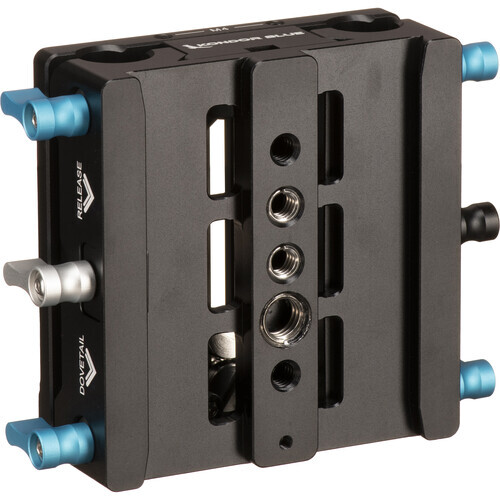

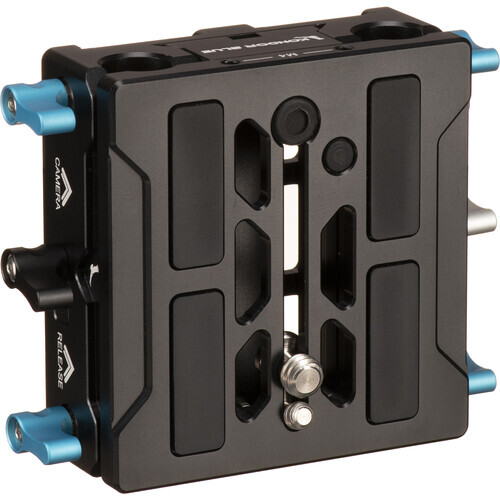

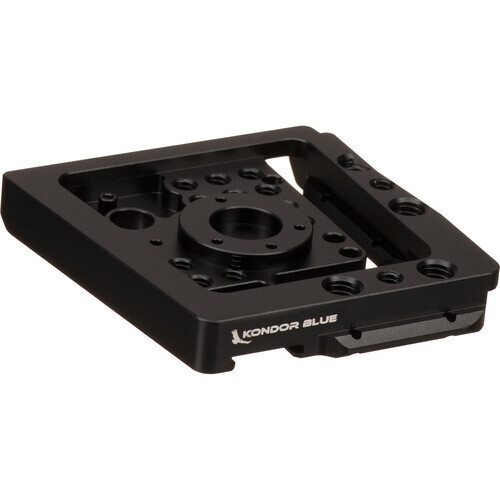

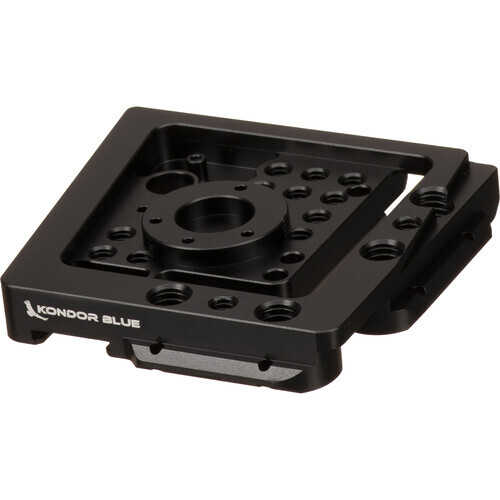

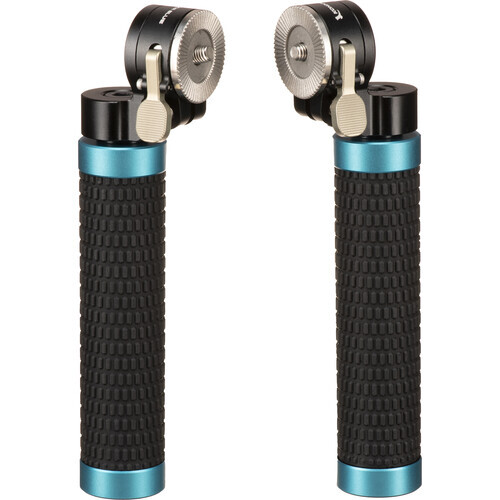

The bridge plate features a quick release ARRI-standard dovetail plate, standard 15mm LWS rod ports, 1/4"-20 and 3/8"-16 camera screws, and multiple 1/4"-20 and 3/8"-16 tripod mounting threads. The two included aluminium 15mm rods measure 12" in length and feature threaded ends. The two rosette arms mount onto the 15mm rod block, which mounts onto the 15mm rods to create a handheld shoulder rig. The rubber handgrips attach to the ends of the extension arms and can rotate, and the arms can extend for comfortable handheld operation.
Kondor Blue Camera Cage for Blackmagic Design URSA Mini 12K, 4.6K & 4K (Cage Only, Raven Black)
Add protection and a variety of accessories to your Blackmagic Design URSA Mini 12K, 4.6K, or 4K cinema camera with this raven black Camera Cage from Kondor Blue. The modular cage has an open, modular design that mounts on two sides of the camera and allows you to access all the camera's ports and controls, while each piece can be used on its own or with the other components.

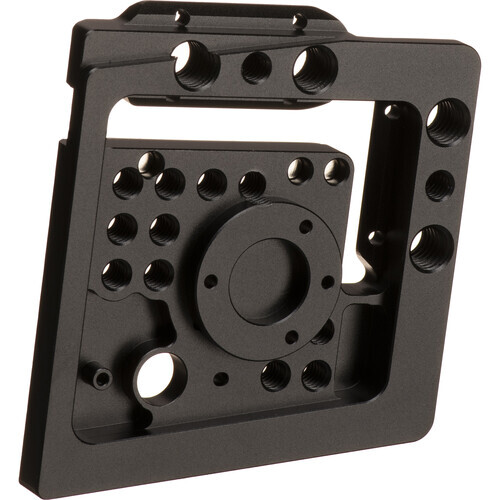

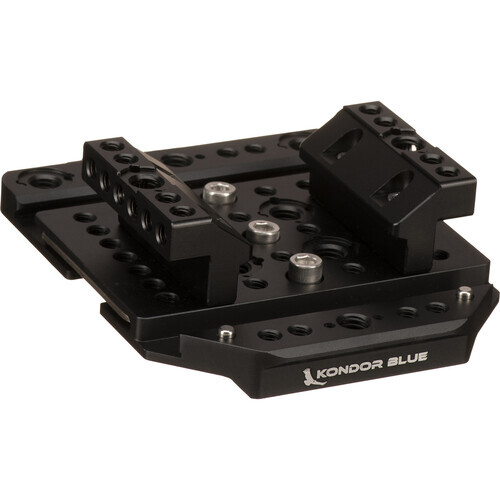

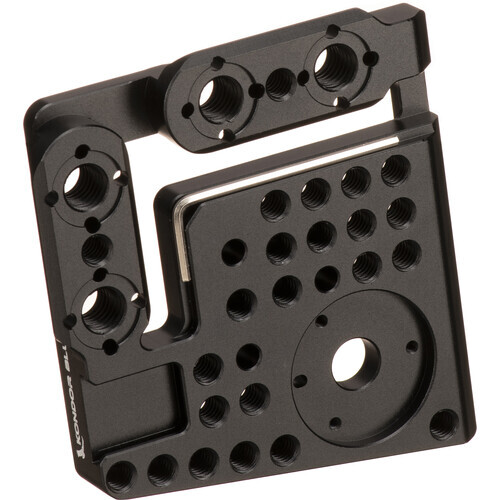

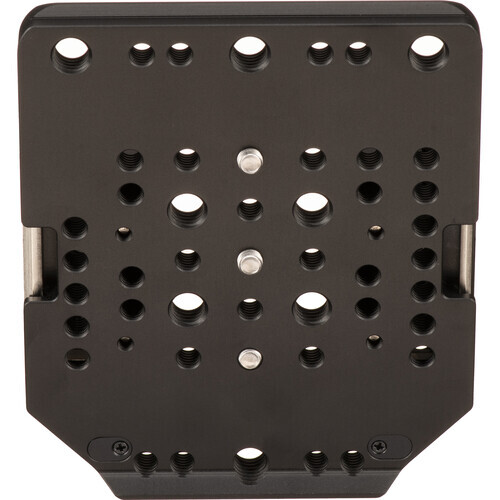

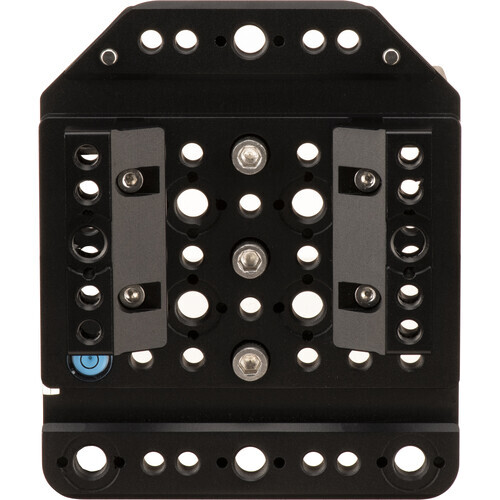

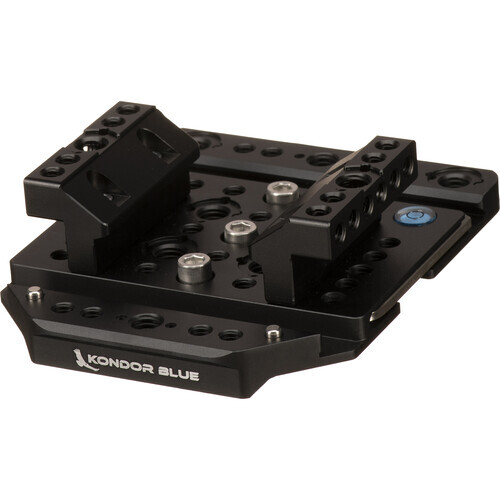

The cage offers an ARRI-style rosette on the side plate, so you can add optional side handgrips or extension arms for 360° rotation, and it also features a standard shoe mount. On the top plate, there are 1/4"-20 and 3/8"-16 ARRI-style accessory threads for mounting a top handle, monitor mount, or other accessories. There are also two integrated NATO rails and a bubble level to keep your camera balanced. A magnetic tool set stores in the cage.
Features
Compatibility
Blackmagic Design URSA Mini 12K, 4.6K, and 4K cinema cameras; removable EVF wings on the top plate accommodate URSA viewfinder
Modular Design
Constructed with one top and one side plate; each plate can be mounted independently of the other
Top Plate
Low-profile dual NATO rails with bubble level, 1/4"-20 threads, and 3/8"-16 ARRI-style threads
Side Plate
ARRI-style rosette, shoe mount, 1/4"-20 threads, and 3/8"-16 ARRI-style threads
Kondor Blue PPSH 15mm Rod (12", Black)

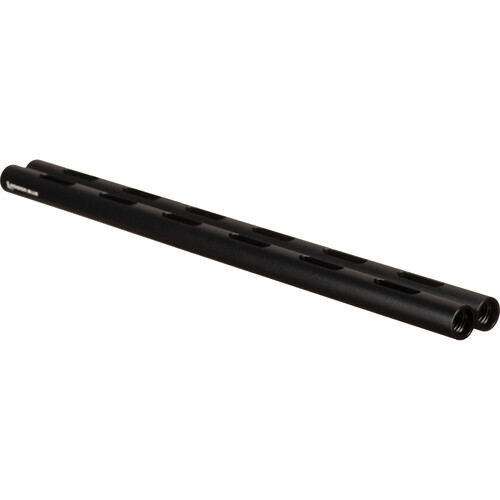

Add a standard 15mm rod to your tripod or shoulder rig to add a variety of accessories with the black 12" PPSH 15mm Rod from Kondor Blue. This single aluminium threaded rod features PPSH cutouts throughout as part of the design, making it lighter while maintaining its durability. The rod measures 12" in length.
The standard 15mm rod can be used to support various accessories, such as follow focus systems, servo motors, lens supports, extension arms, and more. Since the ends are threaded with 12mm threads, multiple units can be combined using optional Kondor M12 rod extension screws. You can also add an optional rod for use with standard 15mm LWS systems.
KONDOR BLUE CAMERA CAGE FOR BLACKMAGIC DESIGN URSA MINI 12K, 4.6K & 4K (CAGE ONLY, RAVEN BLACK) | |
Support Type
|
Cage
|
Camera Compatibility |
Blackmagic URSA Mini
|
MOUNTING | |
Accessory Mounting |
Cage
|
Multiple 1/4"-20 Female Thread | |
Multiple ARRI Anti-Twist 3/8"-16 Female Thread | |
Shoe Mounting |
Side Plate
|
Cold Shoe | |
Rosettes |
Cage, Side
|
ARRI Rosette w/ M6 Female Thread | |
Rail Mounting |
Cage, Top
|
NATO Rail | |
KONDOR BLUE PPSH 15mm ROD (12", BLACK) | |
Diameter
|
1.5 cm
|
Length |
30.5 cm
|
Material |
Aluminium
|
Thread Type |
Female / Female
|
Thread Size |
12 mm
|
Number of Rods |
1
|
Weight |
0.057 kg
|
* Specifications subject to change by the manufacturer without notice.
- Kondor Blue Camera Cage for Blackmagic Design URSA Mini 12K, 4.6K & 4K (Cage Only, Raven Black)
- Set of Attachment Screws
- Magnetic Tool Set
- Kondor Blue PPSH 15mm Rod (12", Black)
- Kondor Blue Rosette Arms, Grips, and 15mm Rod Block Bundle (Raven Black)
- Dual Rod Clamp
- Kondor Blue Quick Release Rosette Handgrip (Right, Raven Black)
- Kondor Blue Quick Release Rosette Handgrip (Left, Raven Black)
- Kondor Blue Adjustable Rosette Extension Arm (Right, Raven Black)
- Kondor Blue Adjustable Rosette Extension Arm (Left, Raven Black)
- 15mm LWS ARRI Bridge Plate
- Gold Mount Battery Plate
- Trigger Top Handle
