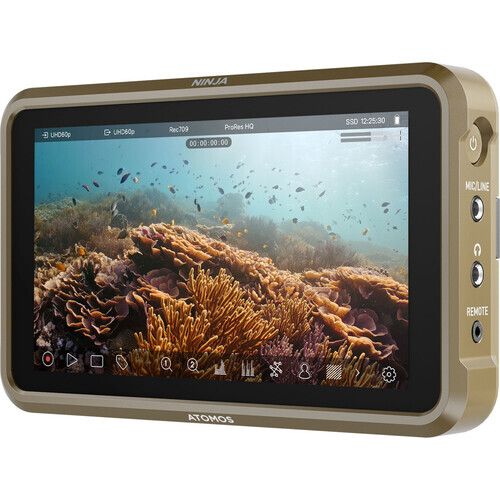

Atomos Ninja 5.2" 4K HDMI Recording Monitor

The Atomos Ninja 5.2" 4K HDMI Recording Monitor is the perfect on-camera monitor and recorder for your next shoot. It has a DCI 4K HDMI input and can record ProRes RAW up to 6K with compatible cameras. With its updated operating system, HDR monitoring, and RAW recording capabilities, you'll have all the features you need. Plus, it has the same form factor as its predecessors, so it's compatible with most Atomos monitor accessories and will easily integrate with your existing equipment.
AtomOS 11 Operating System
Built for the new Ninja, the AtomOS 11 operating system equips your monitor with new features along with an improved icon interface for more intuitive operation. Focus Peaking, Zoom, Atomos and ARRI False Colour, EL Zone Colourized exposure, Safe Areas, RecordAssit, PlayBackAssist, SegmentPro, and Cine Guides are among the many monitor assist functions available. The AtomHDR processing engine allows for real-time Log to PQ/HLG previewing.

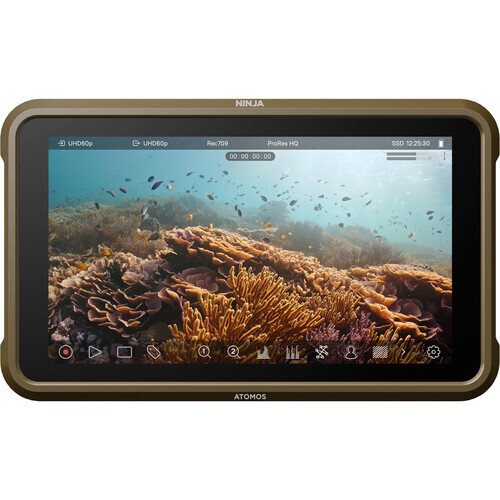

5.2" Touchscreen Display
The 5.2" IPS touchscreen of the Ninja offers a 1920 x 1080 resolution with 1000 cd/m² brightness for viewing in broad daylight. The 10-bit Colour processing, Rec.709 Colour gamut, and Calibrite ColourChecker Display Pro/Plus calibration support ensure Colour-accurate, high-quality monitoring of your footage.
Comprehensive Colour
The Ninja supports the use of select Sony, ARRI, JVC, RED, FUJIFILM, Nikon, Panasonic, and Canon log formats. Upload custom 3D LUTs to the monitor and output HDR conversion to Log, HLG, PQ, or Dolby Vision formats.

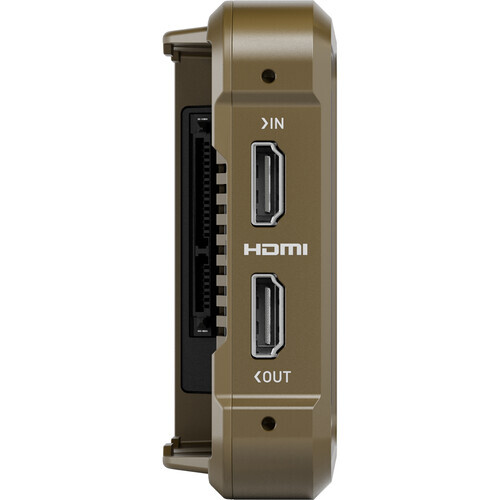

HDMI Interface, ProRes RAW Recording
  • The Ninja's HDMI input and output ports support up to DCI 4K video at 60 fps in monitoring, recording, and playback modes. 3.5K RAW at 60 fps footage is supported with select cameras.
  • Over 55 different cameras support RAW recording over HDMI with the Ninja up to 6K at 30 fps.
Record 4K HDR Gaming
The Ninja can be configured as a stand-alone system for UHD 4K, HDR, and high frame rate gaming capture. Record, monitor, and instantly review your gameplay for posting to YouTube or other platforms.

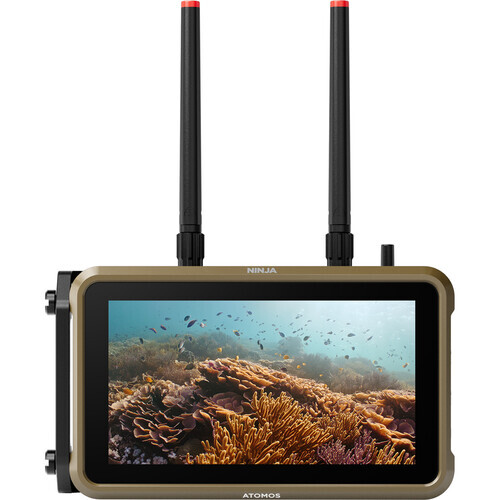

Optional Atomos CONNECT Module
The Ninja is compatible with the separately available Atomos CONNECT module to access cloud workflows like C2C, Atomos Edit, and Atomos RemoteView via Atomos Cloud Studio. The CONNECT module adds 12G-SDI connectivity, AirGlu wireless timecode and control, Wi-Fi 6, and GigE Ethernet to your monitor interface. This allows you to send video signals to live streaming platforms, via NDI, and to custom RTMP/S destinations. You can also convert HDMI to SDI and SDI to HDMI video using the CONNECT module.

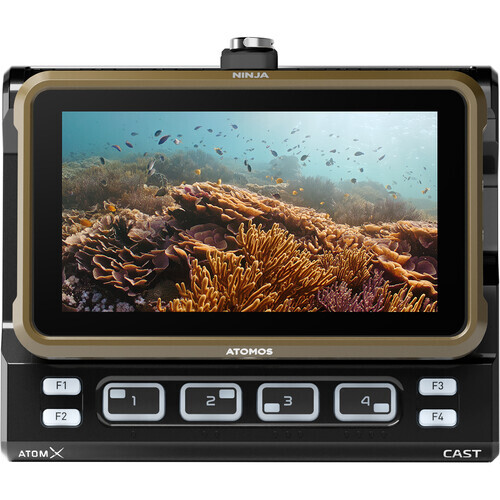

AtomX Cast
Use the AtomX CAST to transform your Ninja into a compact, fully featured production studio. This component enables advanced multi-input switching from four 1080p HDMI sources, the application of graphic overlays, and the ability to use a USB UVC webcam output for enhanced web conferencing and live streaming.
SSD Recording
The Ninja is compatible with the Atomos Master Caddy II and Master Caddy III 2.5" hard drive units which support direct recording to the drives. You can also record onto compact AtomX SSDmini drives and CFAST II cards using a separately available adapter.
Power Options

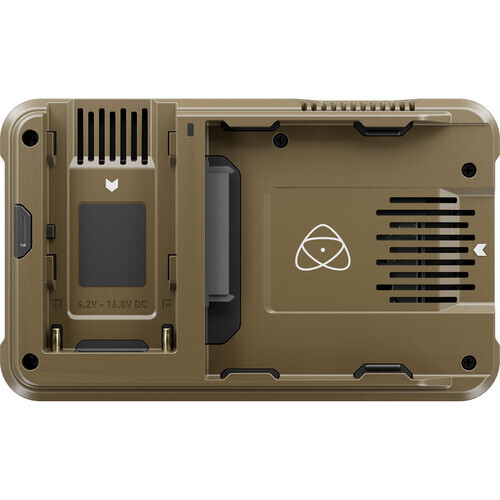

An L-series battery plate on the back of the Ninja can support NP-F L-series batteries outputting 5.8 to 7.2V. A USB-C port supports 30W PD power delivery with the included cable. Use the included dummy eliminator to power the monitor via DC power sources.
Control Options
  • Multifunction control buttons work in tandem with the touchscreen interface for intuitive onboard control.
  • Auto HDMI camera trigger is supported by Canon and Sony cameras using Atomos Open Standard.
  • Unlock Bluetooth and RF-driven remote control with the optional CONNECT module.
  • LANC control and calibration can be accessed using a separately available USB-C to serial connection cable.
DISPLAY

Panel Type
IPS-Type LCD
Display Size
5.2" / 13.2 cm
Resolution
1920 x 1080
Aspect Ratio
16:09
Touchscreen
Yes
Maximum Brightness
1000 nits / cd/m2
Bit Depth / Colour Support
8-Bit+FRC (1.07 Billion Colours)
HDR Compatibility
Hybrid Log Gamma
Pixels Per Inch (ppi)
427 ppi
Real-Time LUT Monitoring
HDR
Image Controls
Anamorphic De-Squeeze, Blue Only, False Colour, Focus Peaking, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra

INPUTS / OUTPUTS

Video I/O
1 x HDMI 2.0 Input
1 x HDMI 2.0 Output
Embedded Audio
HDMI

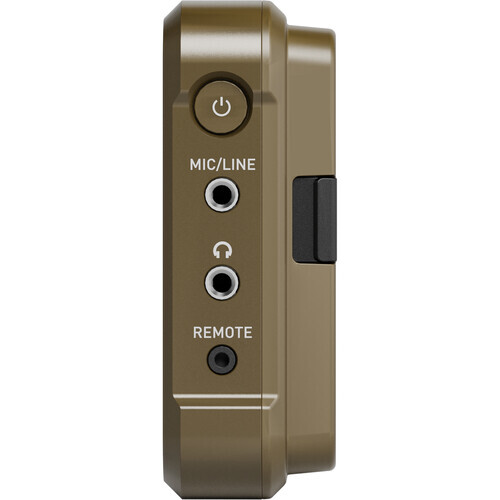

Audio I/O
1 x 1/8" / 3.5 mm Input
1 x 1/8" / 3.5 mm Headphone Output
Power I/O
1 x Barrel Input
Other I/O
1 x USB-C
File System Support
exFAT
Mobile App Compatible
Yes: iOS Only
  App Name: AtomRemote

FORMAT SUPPORT

Video Format
HDMI (8/10/16-Bit 4:2:2)
6K Raw: 30
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF
1080i: 120/100/60/59.94/50/30/29.97/25/24/23.98
720p: 60/59.94/50/30/29.97/25/24/23.98
Gamma Curve
ARRI Log C, Canon Log, Canon Log 2, Canon Log 3, FUJIFILM F-Log, HDR-HLG, HDR-PQ, JVC J-Log, Nikon N-Log, Panasonic V-Log, Rec709, Sony S-Log, Sony S-Log 2, Sony S-Log 3
Timecode Support
Yes

RECORDING

Pulldown Conversion
2:2, 3:2
Camera Trigger
HDMI
Pre-Roll Record
Full HD: 8 Seconds
4K: 2 Seconds
Encoding Formats
x
DNxHR
DNxHD
ProRes
Maximum Audio Tracks
8

POWER

DC Input Power
6.2 to 16.8 VDC
Battery Type
1 x L-Series
Power Consumption
30 W

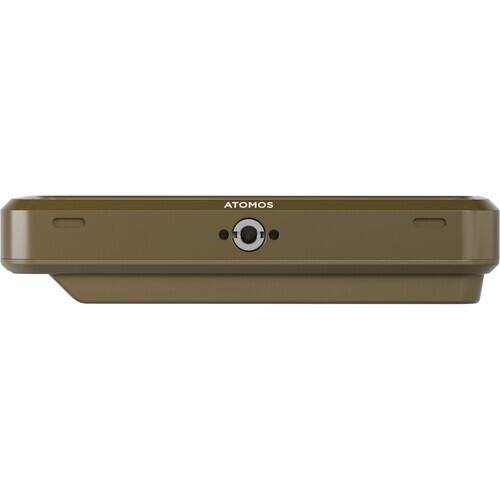

MOUNTING

Mounting
1 x ARRI Anti-Twist 1/4"-20
2 x 3/8"-16 Female

ENVIRONMENTAL

Operating Temperature
104°F / 40°C

GENERAL

Material of Construction
Aluminum, Plastic
Dimensions
15.1 x 9.15 x 3.1 cm
Weight
0.360 Kg


* Specifications subject to change by the manufacturer without notice

  • Atomos Ninja 5.2" 4K HDMI Recording Monitor
  • Battery Eliminator
  • USB-C PD to 2.1mm DC Power Cable
