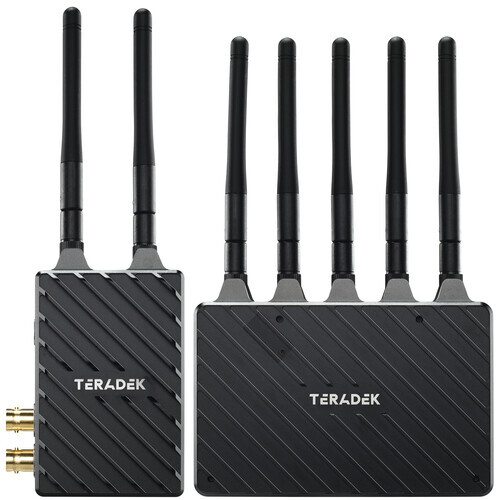

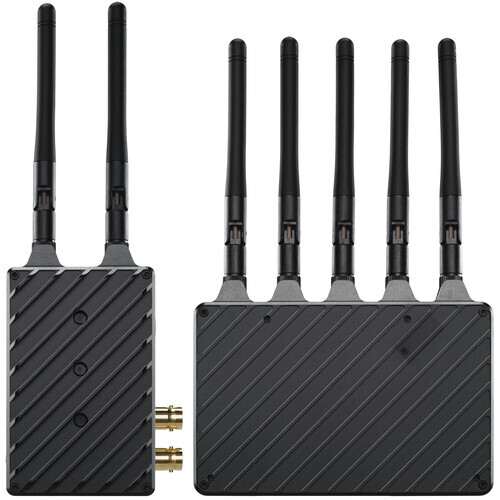

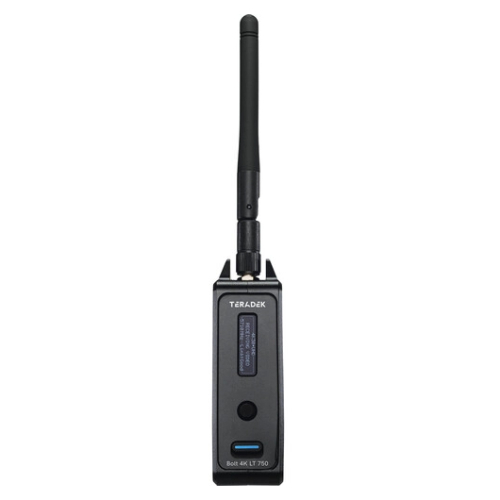

Teradek Bolt 4K LT 750 3G-SDI/HDMI Wireless Transmitter and Receiver Kit
SKU code: 48494
- Bolt LT 750 Transmitter & Receiver Set
- Transmits up to 750' Line of Sight
- Supports up to 4K30 Resolution Input
- HDMI/3G-SDI Inputs & Outputs
- 10-Bit 4:2:2 Support, No Delay
- Compatible with Bolt 4K Series TX/RX
- AES-256 Encryption, 7 x Antennas
- Bluetooth Mobile App, Spectrum Analyzer
You May Also Like
The Essentials:
Miller CX8 Fluid Head with Toggle 2-Stage Alloy Tripod System
$4,795.00
1300 365 220
Action Mounts:
Bags, Cases & Straps:
Batteries & Chargers:
Tripods & Monopods:
Gimbals & Stabilisers:
Flashes & Lighting:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Audio Equipment:
Studio Lighting:
Cables & Connectivity:
Storage:
Other:
Teradek LT 750 Overview
Transmit and receive lossless HD video from up to 750' line of sight with the Bolt 4K LT 750 3G-SDI/HDMI Wireless Transmitter and Receiver Kit from Teradek. This kit includes a wireless transmitter and receiver that feature bright OLED displays and can wirelessly receive up to 4K30 video with 10-bit 4:2:2 HDR support. The transmitter takes in up to 4K video over HDMI or up to 1080p60 video via 3G-SDI, and the receiver outputs video via HDMI and 3G-SDI.
The transmitter sends up to 4K30 video to the Bolt 4K LT receiver, and it can also simultaneously transmit to up to six receivers. The system features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption with RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt LT system also supports the transmission of timecodes and start/stop triggers from the camera.
The Bolt 4K series units are all cross-compatible, so you can transmit to different Bolt 4K series receiver models. The system also supports an iOS app that easily connects via Bluetooth, which provides a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4"-20 and M3 mounting threads to mount your transmitter and receiver on a variety of cameras, cages, or rigs.
- Transmitter/receiver set cross-compatible with all Bolt 4K series devices over the 5 GHz signal spectrum
- Transmitter input up to 4K via HDMI video; input 1080p via 3G-SDI, and transmit up to 4K30 video
- The receiver supports up to 4K30 video and outputs 1080p via 3G-SDI and 4K via HDMI
- Supports Rec 2020 HDR in 10-bit 4:2:2 colour gamut
- Smaller and lighter chassis design than other Bolt transmitters
- Transmit to up to six Bolt 4K series receivers
- AES-256 encryption support and RSA 1024 key pairing support
- Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration
DISPLAY | |
Embedded Audio | SDI: 2-Channel |
HDMI: 2-Channel | |
Encryption | 256-Bit AES |
WIRELESS | |
Wireless Range | 750' / 228.6 m (Line-of-Sight) |
# of Channels | 13 (40 MHz) |
25 (20 MHz) | |
Channel Bandwidth | 40 MHz, 20 MHz |
Frequency Range | Non-DFS Frequencies |
US: 5.19 to 5.23 GHz | |
US: 5.75 to 5.79 GHz | |
DFS Frequencies | |
US: 5.27 to 5.67 GHz | |
Latency | < 0.01 ms |
RF Power | 17 dBm |
FORMAT SUPPORT | |
Audio Format | 2-Channel 24-Bit 48 kHz LPCM Audio |
Wireless Video Compression | Uncompressed |
Timecode Support | Yes |
ENVIRONMENTAL | |
Operating Temperature | 32 to 72°F / 0 to 40°C |
* Specifications subject to change by the manufacturer without notice
- Teradek Bolt 4K LT 750 3G-SDI/HDMI Wireless Transmitter and Receiver Kit
- Bolt 4K LT 750 3G-SDI/HDMI Wireless Transmitter
- Bolt 4K LT 750 3G-SDI/HDMI Wireless Receiver
- 2-Pin to D-Tap Power Cable (18")
- Micro-USB to USB Type-A Cable (36")
- 18W AC Adapter Cable with 2-Pin Connector (6')
- 2 x BNC Cable (10")
- 7 x Antenna
- 1/4"-20 Light Stand Adapter
- Shoe Adapter
Manufacturer Warranty
This product comes with a
12 month Australian warranty
from Teradek Australia
