Key Features:
- Compact Anamorphic Lens for S35 Sensors
- T2.4 to T16 Aperture Range
- 1.5x Anamorphic Squeeze Ratio
- Blue Colour Anamorphic Lens Flare
- Interchangeable PL & EF Mounts
- 80mm Front Diameter, 77mm Filter Thread
- Short 23.6" Minimum Focus Distance
- 0.8 MOD Gears, Metric/Imperial Markings
- 13-blade Iris, 57.5° Field of View

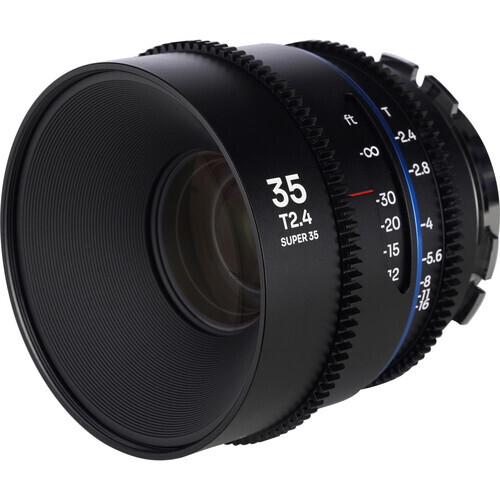

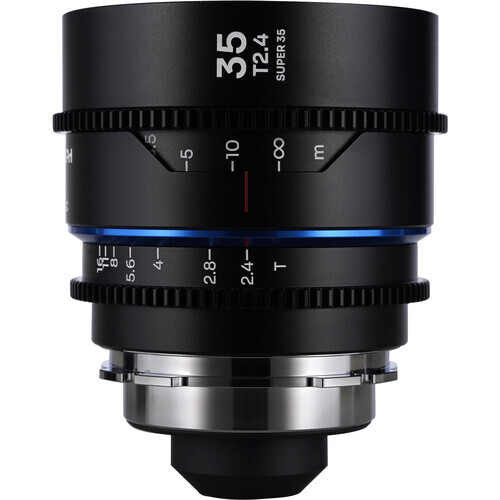

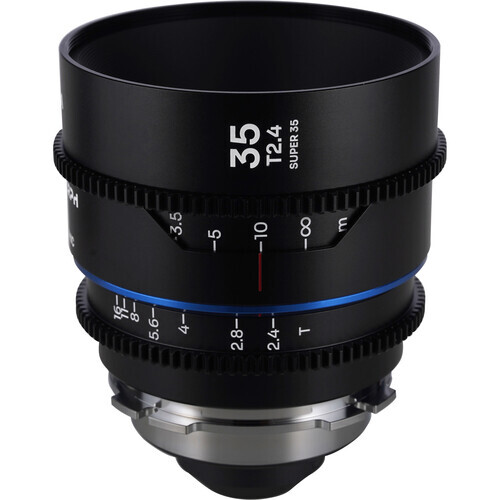

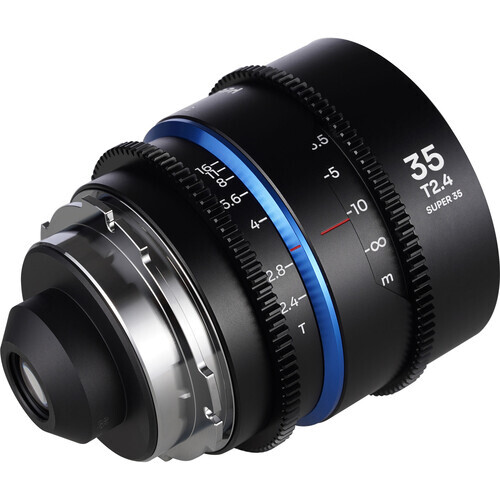

Laowa Nanomorph 35mm T2.4 1.5x S35 Anamorphic Lens - ARRI PL & Canon EF - Blue Flare
SKU code: 53942
Australian Owned, Online Since 2001
Local Contact Centre
Industry Experts, Knowledgeable Team
Australia Wide Delivery
From Beginner to Pro, Affordable Gear
Secure Payment Methods
Key Features:
- Compact Anamorphic Lens for S35 Sensors
- T2.4 to T16 Aperture Range
- 1.5x Anamorphic Squeeze Ratio
- Blue Colour Anamorphic Lens Flare
- Interchangeable PL & EF Mounts
- 80mm Front Diameter, 77mm Filter Thread
- Short 23.6" Minimum Focus Distance
- 0.8 MOD Gears, Metric/Imperial Markings
- 13-blade Iris, 57.5° Field of View
You May Also Like
The Essentials:
Miller CX8 Fluid Head with Toggle 2-Stage Alloy Tripod System
$4,795.00
1300 365 220
Action Mounts:
Bags, Cases & Straps:
Batteries & Chargers:
Tripods & Monopods:
Gimbals & Stabilisers:
Flashes & Lighting:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Audio Equipment:
Studio Lighting:
Cables & Connectivity:
Storage:
Other:
Laowa Nanomorph 35mm T2.4 1.5X S35 (Blue) - (Cine) Arri PL (Default) + EF
This Laowa Nanomorph 35mm T2.4 1.5x S35 Anamorphic Lens from Venus Optics is a slender, compact lens designed for high-definition video with 1.5x anamorphic squeeze on S35 sensors. Featuring a 35mm focal length, it comes with a PL lens mount and includes an EF-mount bayonet option for versatile use. The lens offers an aperture range of T2.4 to T22 for a deep depth of field, and its 13 iris blades create a shallow depth of field with a soft, aesthetically pleasing bokeh.
The prime lens has a very short minimum focus distance of 23.6" and offers anamorphic qualities such as high contrast, blue colour lens flares, and a 57.5° horizontal field of view. Other features include measurement markings in feet and meters, 0.8 MOD cine gears on focus and aperture rings, and a 77mm front filter thread. The lens comes default with an ARRI PL lens mount, and a Canon EF bayonet mount is included for compatibility with a wide range of cameras.
Constant 1.5x Squeeze Ratio
A 1.5x squeeze ratio is a perfect balance between the size and anamorphic intensity. With a 1.5x squeeze ratio, you will have a 2.66:1 on a 16:9 sensor after de-squeeze. There is also room for you to crop into a 2.4:1 widescreen ratio.
Artistic Oval Bokeh
A 1.5x squeeze ratio also renders oval bokeh that gives an artistic touch to the image. It also creates a blurry and creamy background that pops out the subject.
Blue Anamorphic Flare Colour
The traditional blue flare is common in the market, and it is suitable for sci-fi and cool vibe movies.
Short Focus Distance
The 23.6" close focus distance is short so users can create closer shots. It renders a shallower depth of field, so the sense of compression will be stronger and the bokeh will be more oval-shaped.
Unified Gear Position
The unified gear position allows users to switch lenses quickly and without readjustment on the focus gear.
77mm Filter Thread
A 77mm filter can be attached directly to the lens for a variety of handy setups. The small diameter is favorable when doing run-and-gun shots or utilising it with an aerial drone.
Dual Scales
Both imperial and metric scales are printed on the lens body.
0.8 MOD Gears
Industry-standard 0.8 MOD gears are installed on both the aperture and focus rings.
Flange Back Adjustment
The lens allows users to adjust the back focus easily.
Lens Mount |
ARRI PL & Canon EF
|
Lens Format Coverage |
Super35/APS-C
|
Image Circle |
25.6 mm
|
Focal Length |
35mm
|
Maximum Aperture |
T2.4
|
Minimum Aperture |
T16
|
Diagonal Angle of View |
Super35: 57.5°
|
Minimum Focus Distance |
From Unspecified Point in Lens: 23.6" / 60 cm
|
Optical Design |
15 Elements in 13 Groups
|
Diaphragm Blades |
13
|
Gear MOD & Pitch |
Focus: 0.8 MOD / 32 Pitch
|
Iris: 0.8 MOD / 32 Pitch | |
Front Diameter |
80 mm
|
Filter Thread |
77 mm
|
Focus Scales |
Metric, Imperial
|
Horizontal Squeeze (Anamorphic) |
1.5x
|
Dimensions (W x H) |
8.4 x 7.5 cm
|
Length |
7.5 cm
|
Weight |
0.520 kg
|
* Specifications subject to change by the manufacturer without notice.
- Laowa Nanomorph 35mm T2.4 1.5X S35 (Blue) - (Cine) Arri PL (Default) + EF
- EF-Mount Bayonet
- Front Cap
- Rear Cap
- Shim Set
- Allen Wrench (0.9mm)
