Teradek XT MAX Overview

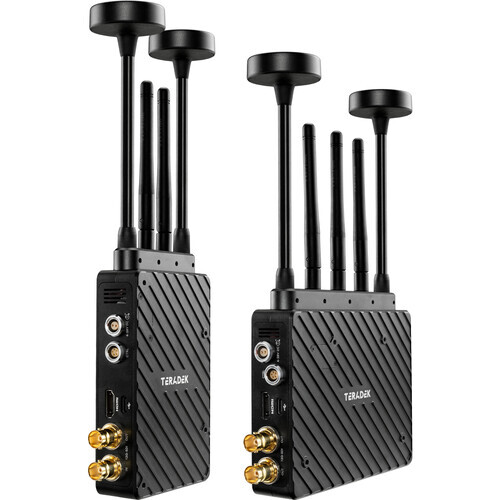

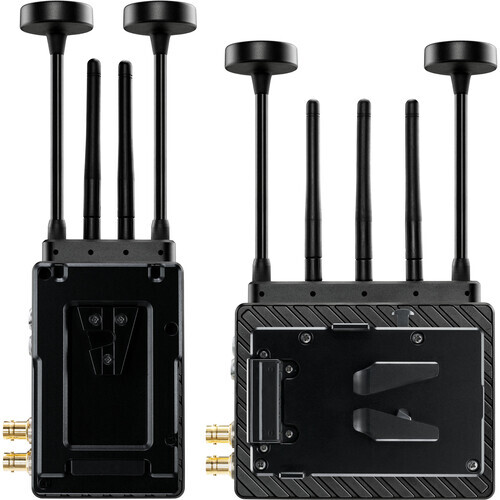

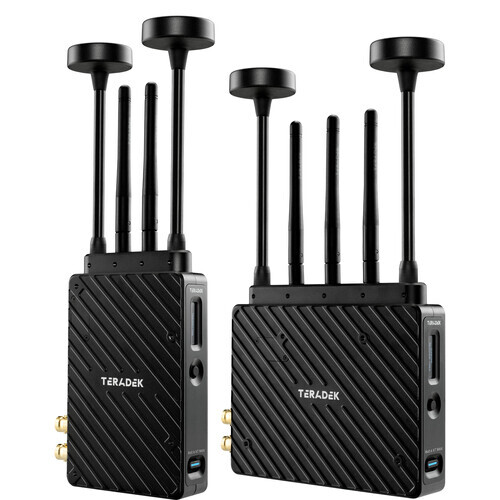

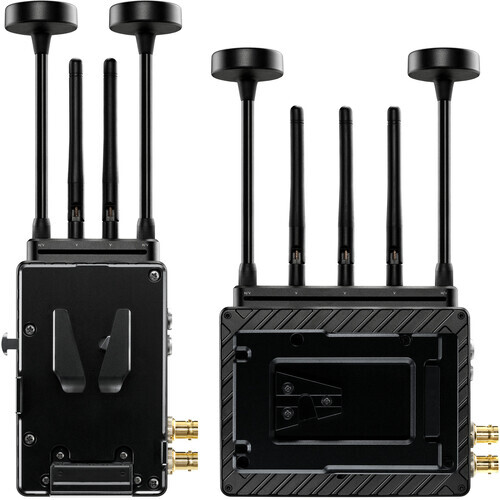

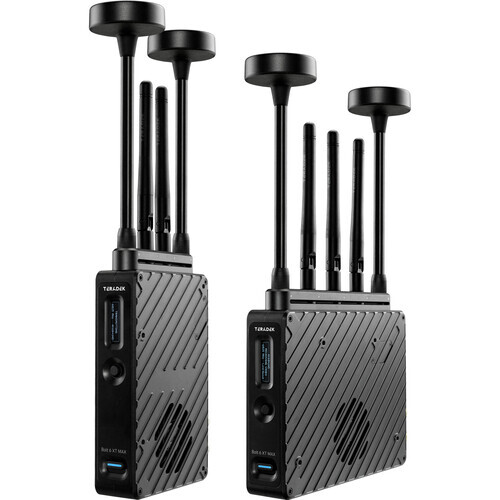

Enjoy lossless HD video up to 5000' line-of-sight with the Bolt 6 XT MAX 12G-SDI/HDMI Wireless RX/TX Deluxe Kit from Teradek. This kit includes a wireless transmitter and receiver that can wirelessly receive up to 4K60 video with 10-bit 4:2:2 HDR support, and this new line supports the 6 GHz wireless band, which is now freely available in Australia. The transmitter takes in up to 4K video over HDMI or 12G-SDI, and the receiver outputs video via HDMI and 12G-SDI. A V-mount battery plate is also included to power each unit with a professional V-mount battery.

The transmitter sends up to 4K60 video to any Bolt 4K series receiver, and it can also simultaneously transmit to up to six receivers. The system features improved metadata, range, and compatibility over its predecessors. Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delays using the 5 GHz bands, it requires a Bolt 6 device to transmit over the 6 GHz bands. The Deluxe kit includes a carry case as well as multiple cables and mounting options.

TERADEK XT MAX

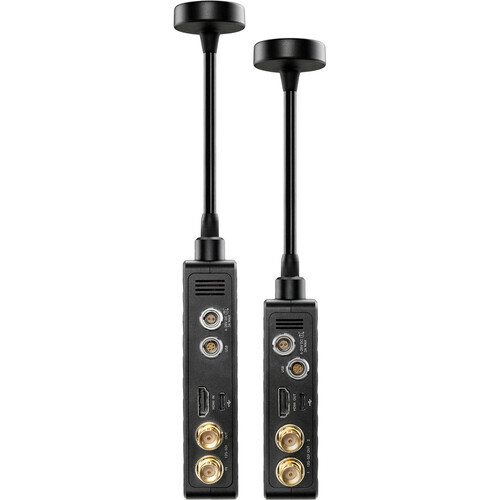

INPUTS / OUTPUTS

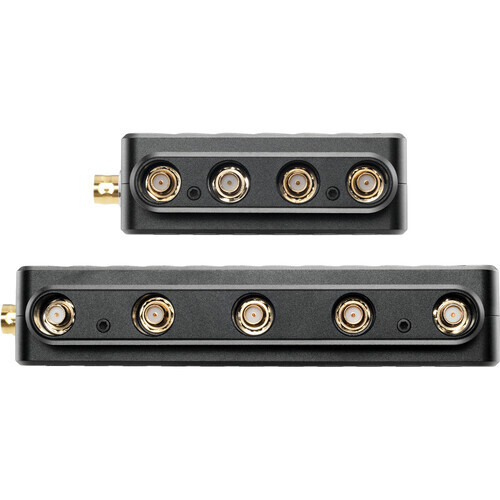

Antenna I/O Transmitter: 4 x RP-SMA Female
Receiver: 5 x RP-SMA Female
Video I/O Transmitter: 1 x HDMI 2.0 Input
Transmitter: 1 x BNC (12G-SDI) Input
Transmitter: 1 x BNC (12G-SDI) Loop Output
Receiver: 1 x HDMI 2.0 Output
Receiver: 1 x BNC (12G-SDI) Output
Embedded Audio HDMI: 2-Channel
SDI: 2-Channel
Power Transmitter/Receiver: 1 x LEMO 2-Pin (28 VDC) Input
Other I/O Transmitter/Receiver: 1 x USB-C 2.0 Input
Transmitter/Receiver: 1 x LEMO 5-Pin 2.0 Output
Encryption 256-Bit AES

WIRELESS

Wireless Range 5000' / 1524 m (Line-of-Sight)
Channel Bandwidth 40 MHz
Frequency Range Non-DFS Frequencies
US: 5.94 to 6.42 GHz
US: 5.19 to 5.23 GHz
US: 5.75 to 5.79 GHz
DFS Frequencies
US: 5.27 to 5.67 GHz
Latency < 0.01 ms
RF Power 23 dBm
Bluetooth Yes

FORMAT SUPPORT

Video Format HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 60
480i: 59.94
SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
Audio Format 2-Channel 24-Bit 48 kHz
Timecode Support Yes

POWER

DC Input Power 6 to 28 VDC
Power Consumption Transmitter: 20 W
Receiver: 18 W

ENVIRONMENTAL

Operating Temperature 32 to 72°F / 0 to 40°C

GENERAL

Material of Construction Aluminum, Polycarbonate
Dimensions Transmitter: 13.2 x 9.1 x 2.7 cm
Receiver: 13.9 x 11.2 x 2.7 cm
Weight Transmitter: 0.344 kg, Excluding Battery Plate
Receiver: 0.43 kg, Excluding Battery Plate

* Specifications subject to change by the manufacturer without notice

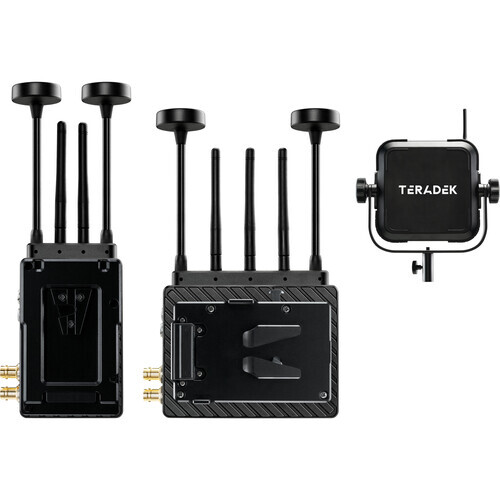

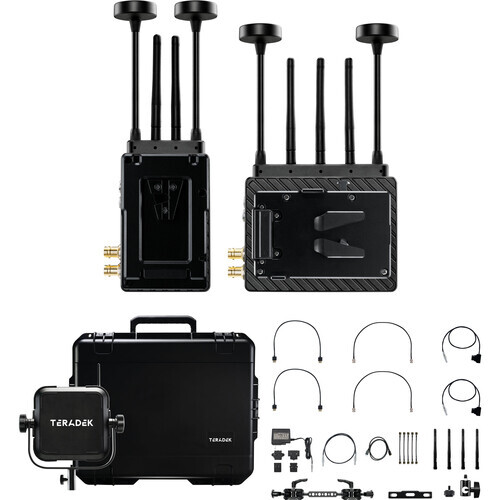

  • Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless RX/TX Deluxe Kit (V-Mount)
  • Bolt 6 XT MAX 12G-SDI/HDMI Transmitter (V-Mount)
  • Bolt 6 XT MAX 12G-SDI/HDMI Receiver (V-Mount)
  • Antenna Array
  • 2 x 2-Pin to D-Tap Power Cable (18")
  • Micro-USB to USB Type-A Cable (36")
  • 2 x HDMI Type A Cable (18")
  • 2 x BNC Cable (18")
  • 2-Pin Cable for ALEXA (18")
  • 18W AC Adapter with Cable (6')
  • 2 x Bolt Battery Cover (Front)
  • 2 x Bolt Battery Cover (Rear)
  • 5 x RP-SMA Cable (4")
  • 1/4"-20 Light Stand Adapter
  • Shoe Adapter
  • Screw Set
  • Allen Wrench
  • Wooden Camera Monitor Mount
  • Carry Case
  • 5 x Standard Antenna
  • 4 x Mushroom Antenna

Manufacturer Warranty

This product comes with a

12  month Australian warranty

from Teradek Australia
