SmallRig NP-F Battery Adapter Mount Plate (Advanced Edition) 3168B

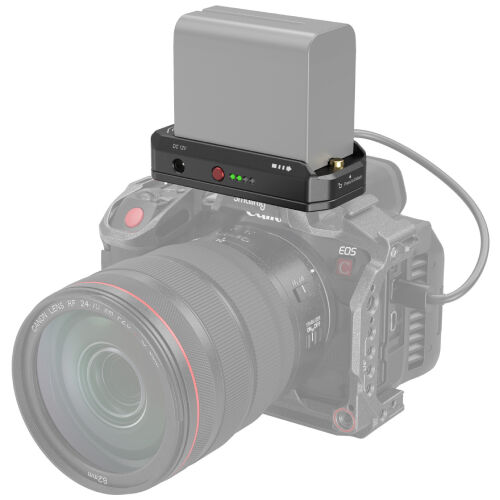

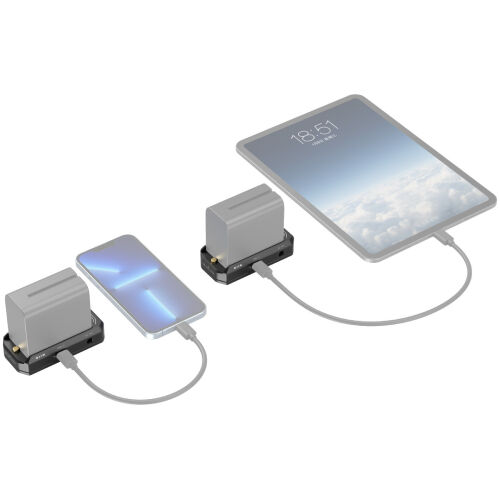

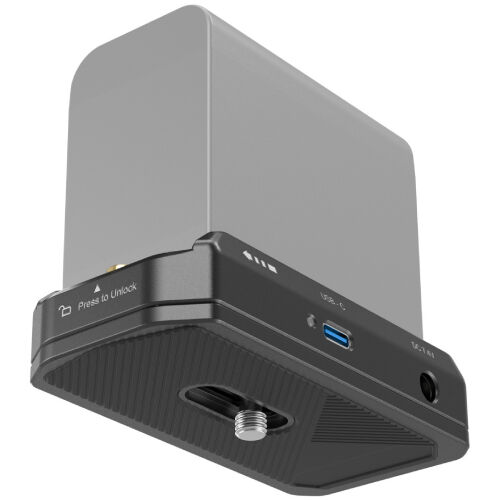

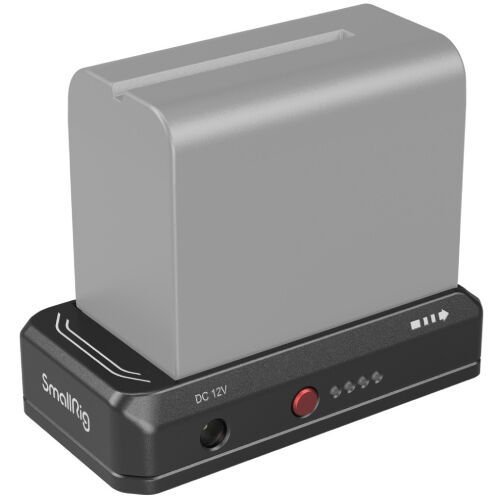

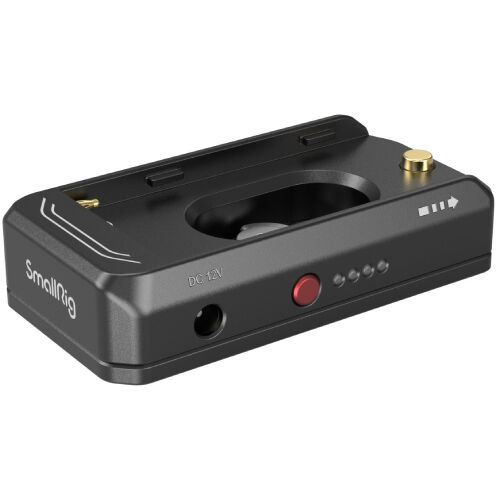

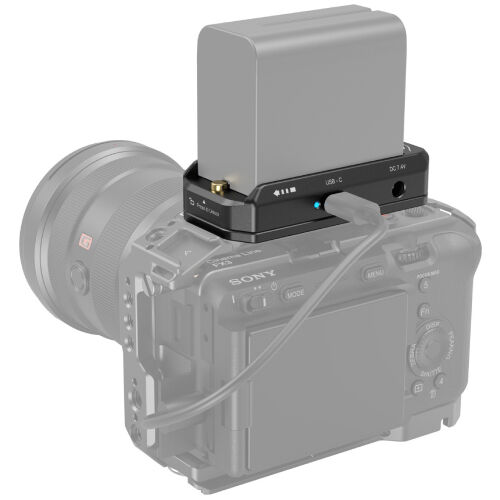

The SmallRig NP-F Battery Adapter Mount Plate 3168B allows NP-F batteries (including original Sony and third-party options) to power BMPCC 4K/6K/6K Pro, Canon R5 C, and other mirrorless cameras. Constructed from durable aluminium alloy with gold-plated electrical contacts, it ensures improved conductivity. The plate features a self-locking button for quick battery installation and a 1/4"-20 threaded hole for easy attachment to the cage. It provides 36W 7.4V / 12V DC output and a 36W USB-C port for charging or powering devices, with short circuit protection and automatic wake-up/sleep functions. LED indicators display USB charging, battery connection, and battery life status.

Button/Indicator Function Display

Power Display Button - Touch to check the battery level

Working Indicator Light

USB-C port charging and discharging indicator light: Orange - slow charge/slow discharge, ice blue light - fast charge/fast discharge

battery indicator: Four LEDs, one light flashes when below 10%, one light on when 10%-25%, two lights on when 25%-50%, three lights on when 50%-75%, four lights on when 75%-100%

Barcode (UPC / EAN): 6941590012605

Product Dimensions 9.4 x 4.7 x 2.3 cm
Product Weight 0.113 ±  0.005 kg
Material(s) CNC


* Specifications subject to change by the manufacturer without notice.

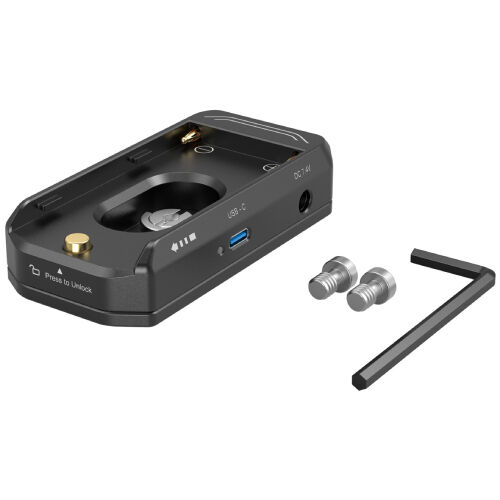

  • SmallRig NP-F Battery Adapter Mount Plate (Advanced Edition) 3168B
  • 1/4"-20 Screw
  • 5/32" L-Shaped Allen Wrench
  • User Manual

Manufacturer Warranty

This product comes with a

12  month Australian warranty

from SmallRig Australia
