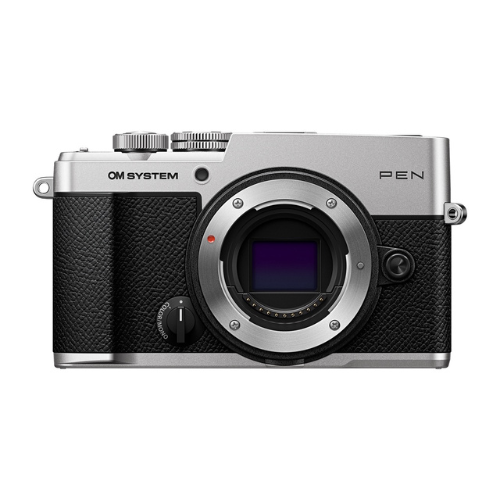

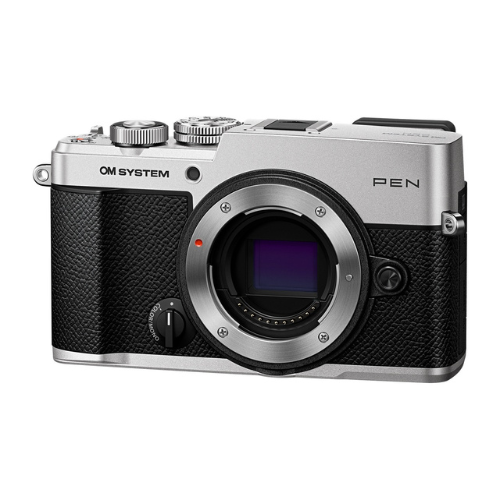

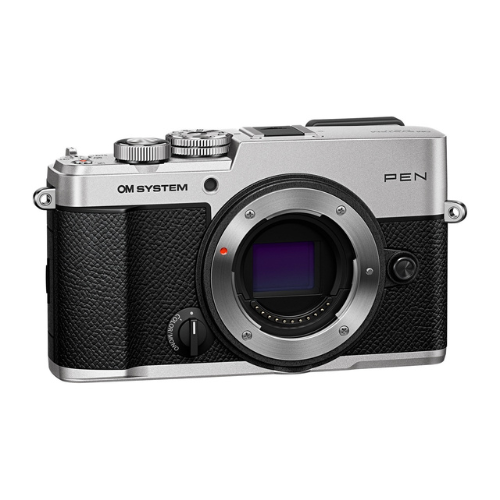

OM SYSTEM PEN Mirrorless Camera

Designed for photographers who want to travel light without giving up creative control, the OM SYSTEM PEN combines classic rangefinder-inspired styling with modern imaging technology in a compact Micro Four Thirds camera. Built for everyday photography, travel, street shooting and creative content, the PEN features a 20.4MP Live MOS sensor, electronic viewfinder, powerful 5-axis in-body image stabilisation and, for the first time in the PEN series, a dust- and splashproof design.

Whether you're documenting a trip, capturing everyday moments or experimenting with distinctive colour and monochrome looks, the OM SYSTEM PEN puts advanced photographic tools into a lightweight body designed to go wherever you do.

20.4MP Live MOS Sensor & TruePic IX Processor

At the heart of the OM SYSTEM PEN is an approximately 20.4-megapixel Live MOS sensor paired with the TruePic IX image processing engine. Together with the extensive range of M.Zuiko Digital Micro Four Thirds lenses, the camera delivers detailed images with rich colour and excellent image quality across a wide variety of shooting situations.

Its Micro Four Thirds lens mount also gives photographers access to a broad selection of compact lenses, making it easy to build a versatile camera kit without carrying unnecessary bulk.

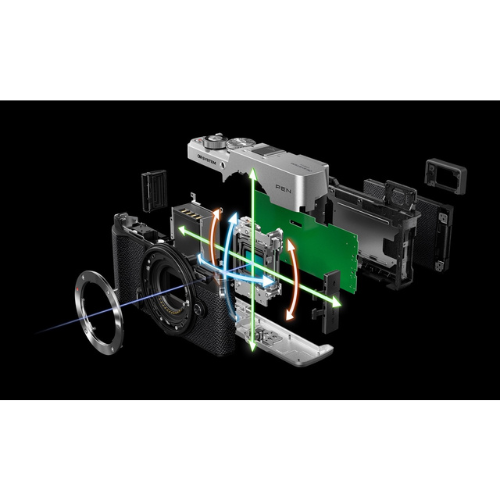

5-Axis In-Body Image Stabilisation

Shoot handheld with greater confidence thanks to the PEN's built-in 5-axis sensor-shift image stabilisation. The system provides up to 5.5 stops of stabilisation at the centre of the frame and up to 4.5 stops towards the edges, helping reduce the effects of camera shake when shooting handheld in low light, at slower shutter speeds or while travelling without a tripod.

Because the stabilisation system is built into the camera body, it can work with compatible Micro Four Thirds lenses mounted to the PEN. :contentReference[oaicite:0]{index=0}

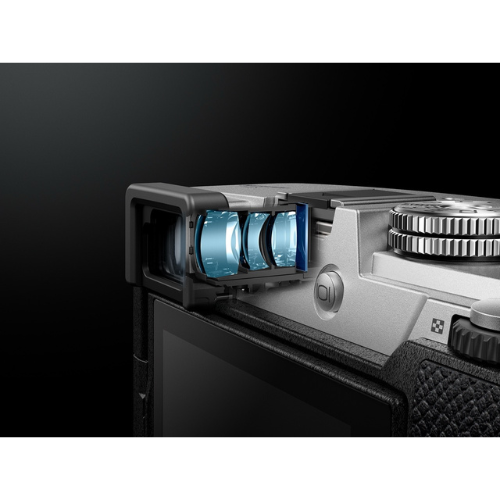

Electronic Viewfinder in a Compact PEN Design

The OM SYSTEM PEN brings an electronic viewfinder to its timeless rangefinder-style design, giving photographers a traditional and engaging way to compose images while still enjoying the advantages of a modern mirrorless camera.

The approximately 2.36-million-dot OLED electronic viewfinder provides a clear view of your composition, while the rear 3.0-inch vari-angle touchscreen makes it easy to shoot from creative high, low and front-facing angles.

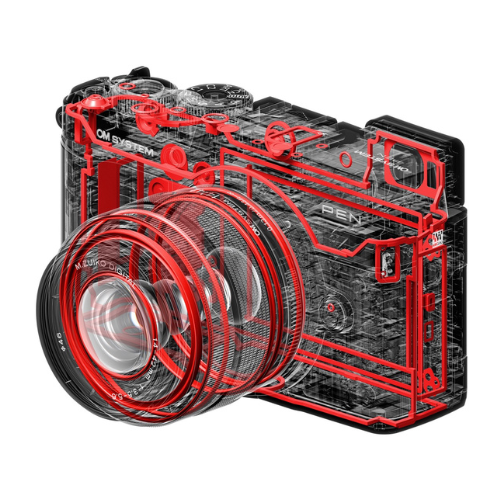

Dust- & Splashproof Construction

Designed to be carried beyond the everyday, the OM SYSTEM PEN is the first PEN series camera with dustproof construction and IPX1-rated splash resistance when paired with a compatible dust- and splashproof lens. Sealing has been applied at key points around the camera body to provide additional confidence when conditions change unexpectedly.

Its compact dimensions and weather-resistant construction make the PEN particularly well suited to travel, street photography and photographers who want a capable camera they can keep close at hand. :contentReference[oaicite:1]{index=1}

Creative Colour & Monochrome Profile Control

Give your photos a distinctive look straight out of camera with Colour Profile Control and Monochrome Profile Control. Film-inspired presets provide an easy starting point, while extensive adjustment options allow photographers to create a personalised visual style without relying entirely on post-processing.

Colour Profile Control lets you independently adjust the saturation of 12 colours across 11 levels, with presets including Film Rich Colour, Film Vivid, Film Soft Tone and Natural. Highlight and shadow adjustments and shading effects provide even greater control over the finished image.

For black-and-white photography, Monochrome Profile Control offers Colour Filter, Highlight & Shadow, Shading, Film Grain and Tone effects, along with Film B&W, Film IR, Film Low Contrast and Monotone presets. A dedicated Profile Control Switch on the front of the camera provides quick access while shooting. :contentReference[oaicite:2]{index=2}

Computational Photography at Your Fingertips

The OM SYSTEM PEN brings advanced computational photography techniques directly into the camera, making it easier to create images that would traditionally require additional equipment or post-processing.

A dedicated CP button provides quick access to features including Tripod High Res Shot, Handheld High Res Shot, Live ND, Focus Stacking, HDR and Multiple Exposure. Live ND offers ND2, ND4, ND8 and ND16 settings, helping photographers create smooth movement effects such as flowing water without carrying physical ND filters for every situation.

These tools open up additional creative opportunities for landscape, architecture, travel and experimental photography. :contentReference[oaicite:3]{index=3}

121-Point Phase Detection Autofocus

Capture subjects confidently with a 121-point all cross-type on-chip phase detection autofocus system. The PEN combines phase detection and contrast detection AF and supports a variety of focusing modes for still photography and video.

The camera also introduces the PEN series' first AI Subject Detection AF, with recognition for people as well as cats and dogs. Face and eye detection, AF tracking and Starry Sky AF provide additional assistance across portraits, everyday photography, pets and night-sky shooting. :contentReference[oaicite:4]{index=4}

Up to 30 fps & Pro Capture

For fast-moving moments, the OM SYSTEM PEN offers high-speed electronic sequential shooting at up to 30 frames per second in supported modes. Its Pro Capture function can begin recording images before the shutter button is fully pressed, helping you capture fleeting expressions, movement and unpredictable action.

Pro Capture can record up to 12 frames before the shutter is fully released, with RAW sequential shooting supported. :contentReference[oaicite:5]{index=5}

4K & Cinema-Inspired Video Features

The OM SYSTEM PEN isn't limited to still photography. It can record 4K UHD video up to 30p as well as Cinema 4K at 24p, with Full HD recording up to 60p. Its 5-axis stabilisation system can also assist during movie recording for smoother handheld footage.

Dedicated OM-Cinema1 and OM-Cinema2 picture modes provide additional creative video options, alongside OM-Log400, vertical video recording and S&Q slow- and quick-motion modes. S&Q capture rates are available up to 120 fps depending on the selected recording settings.

A recording tally light, external 3.5mm microphone input and HDMI output further expand the PEN's capabilities for video and content creation.

Made for Everyday Photography

Compact, lightweight and designed around the experience of photography, the OM SYSTEM PEN is an ideal companion for travel photography, street photography, everyday shooting and creative content creation. The body measures approximately 125.8 x 74.5 x 43.3mm and weighs approximately 393g with battery and memory card, making it easy to carry throughout the day.

The supplied BLS-7 rechargeable battery provides approximately 410 shots per charge under CIPA testing conditions, while USB Type-C charging lets you conveniently recharge the battery inside the camera when the camera is switched off.

Creative Freedom Wherever You Go

The OM SYSTEM PEN mirrorless camera brings together the portability and iconic styling the PEN series is known for with modern autofocus, image stabilisation, weather resistance and computational photography. From spontaneous everyday moments and travel adventures to carefully crafted monochrome images and 4K video, it is built for photographers who want a compact camera that encourages them to keep shooting.

Barcode (UPC / EAN): 4545350057602

OM SYSTEM PEN Specifications

Product Type
Product Type Micro Four Thirds interchangeable lens system camera
Memory SD, SDHC (UHS-I), SDXC (UHS-I)
Sensor Size 17.4 x 13.0mm (Micro Four Thirds)
Lens Mount Micro Four Thirds Mount
Image Sensor
Image Sensor Type 4/3 Live MOS Sensor
Number of Pixels Effective: Approx. 20.4 million pixels
Total: Approx. 21.8 million pixels
Aspect Ratio 4:3
Dust Reduction Supersonic Wave Filter image sensor dust reduction system
Still Photo Recording
Recording Format DCF 2.0, Exif 3.0
File Format JPEG, RAW (12-bit lossless compression), JPEG + RAW
Recording Image Size RAW: 5184 x 3888
JPEG: 5184 x 3888 to 1024 x 768
Image Stabilisation
Image Stabilisation Type Built-in 5-axis sensor-shift image stabilisation
Image Stabilisation Modes S-IS AUTO, S-IS1, S-IS2, S-IS3, Off
Stabilisation Performance Centre: up to 5.5 stops
Corner: up to 4.5 stops
Measured with M.Zuiko Digital 14-42mm F3.5-5.6 III at 42mm, CIPA 2024 standard
Focal Length Setting 11 settings, including 10 programmable settings for lenses without electronic communication
Electronic Viewfinder
Finder Type Eye-level OLED electronic viewfinder, approx. 2.36 million dots
Field of View Approx. 100%
Viewfinder Magnification Approx. 1.10x to 1.23x
Eye Point Approx. 20.5mm
Diopter Adjustment -4 to +2m-1
Display Grid Off, normal grid, rule of thirds, golden grid, scale, diagonal, movie grid; grid colour selectable
Level Gauge 2-axis horizontal / vertical
Finder Styles 3 styles
Brightness / Colour Temperature EVF Auto Luminance, ±2 brightness levels, ±3 colour temperature levels

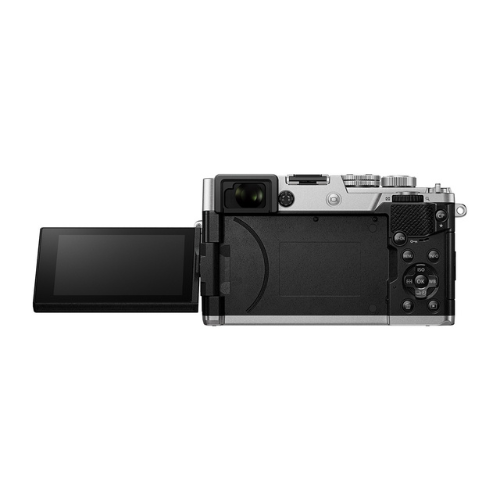

Monitor

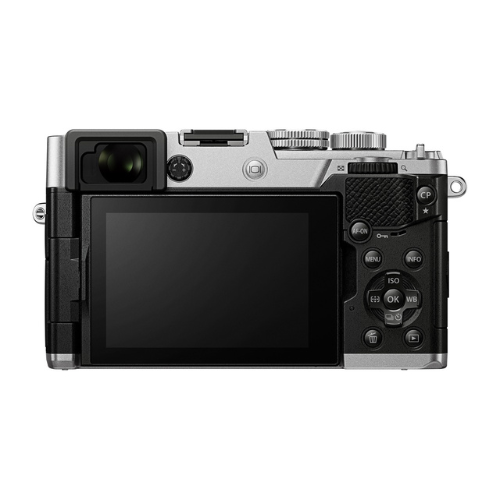

Monitor Type 3.0-inch vari-angle electrostatic capacitive touchscreen, approx. 1.04 million dots, 3:2
Tilting Capability Swivel type
Touch Control Shutter release, Touch AF, AF area selection and size adjustment, Face/Subject selection, AF targeting pad, playback controls, magnified playback, Live Guide, ART/SCN selection, Profile controls, Super Control Panel, Wi-Fi connection, movie controls and menu control
Brightness / Colour Temperature ±7 levels / ±7 levels
Autofocus
AF System High-speed imager AF using phase detection and contrast detection AF
AF Working Range -3.5 EV to 20 EV
AF Points 121 cross-type phase detection AF points and 121 contrast AF points
AF Target Modes All Target, Single Target, Small Single Target, Cross Target (5-area), Middle Target (9-area), Large Target (25-area), Custom Target; up to 4 custom settings
Focus Modes S-AF, S-AF+MF, C-AF, C-AF+MF, MF, C-AF+TR, C-AF+TR+MF, Preset MF, Starry Sky AF, Starry Sky AF+MF
C-AF Tracking Sensitivity 5 steps
C-AF Centre Priority Available
AF Limiter Available; up to 3 distance settings can be saved
AF Targeting Pad Available
Magnified Frame AF 3x, 5x, 7x, 10x, 14x
Super Spot AF Available
Face / Eye Detection AF Available in video recording mode
Intelligent Subject Detection AF Human, dog and cat in still image mode
Manual Focus Assist Magnify, Peaking, Focus Indicator
Focus Peaking White, black, red or yellow; high, normal or low highlight intensity
AF Focus Adjustment Available
AF Illuminator Available
Exposure Control
Metering System 324-area Digital ESP, centre-weighted average, spot, spot highlight/shadow; AF target spot metering supported
Metering Range -2 EV to 20 EV
Shooting Modes AUTO, Program AE, Aperture Priority AE, Shutter Priority AE, Manual, Bulb, Custom, Scene Select AE and Art Filter
Still Live Guide Colour saturation, colour image, brightness, blur background, express motions and shooting tips
Movie / S&Q Live Guide Colour saturation, colour image, brightness and blur background
Scene Modes - Still Landscape, Portrait + Landscape, Sunset, Beach & Snow, Panorama, Backlight HDR, Nature Macro, Macro, Multi Focus Shot, Documents, Portrait, e-Portrait, Portrait + Nightscape, Children, Light Trails, Nightscape, Handheld Starlight, Fireworks, Sport, Panning, Candlelight, Silent, Starry Scene and Dogs & Cats
ISO Auto LOW (approx. ISO 64) to ISO 6400
ISO Manual LOW (approx. ISO 64 / 100), ISO 200-25600
Exposure Compensation ±5 EV in 1/3, 1/2 or 1 EV steps
AE Lock Available
Anti-Flicker Shooting Available
Shutter
Mechanical Shutter 1/4000 to 60 sec, Live Bulb, Live Time, Live Composite
Electronic First Curtain Shutter 1/320 to 60 sec
Electronic Shutter 1/32000 to 60 sec
Flicker Scan Video: 1/30 to 1/250.0 sec
Still: 1/50.0 to 1/6944 sec
Drive & Sequential Shooting
Sequential Shooting Approx. 5 fps, selectable 1-5 fps
Anti-Shock Sequential Approx. 4.8 fps, selectable 1-5 fps
Silent Sequential H Approx. 30 fps, selectable 15 / 20 / 30 fps
Silent Sequential Approx. 8 fps, selectable 1-8 fps
Pro Capture H Approx. 30 fps, selectable 15 / 20 / 30 fps
Pro Capture Approx. 8 fps
Sequential Buffer RAW: approx. 29 frames
JPEG LF: approx. 154 frames
Silent Sequential H Buffer RAW: approx. 20 frames
JPEG LF: approx. 20 frames
Silent Sequential Buffer RAW: approx. 23 frames
JPEG LF: approx. 48 frames
Flash
Flash Modes Fill-in, Flash Off, Slow and Manual with compatible flash
Red-Eye Reduction Available
Flash Synchronisation 1st curtain / 2nd curtain
Sync Speed 1/250 sec
Slow Limit 60 sec to 1/250 sec
Flash Intensity Control ±3 EV in 1/3, 1/2 or 1 EV steps
Wireless Flash Control Available
White Balance & Colour
White Balance Modes Auto WB, 7 presets, 4 Capture WB, Custom WB (Kelvin)
White Balance Compensation ±7 steps along A-B / G-M axis
Colour Space sRGB, Adobe RGB
Picture Modes & Creative Controls
Picture Modes i-Finish, Vivid, Natural, Flat, Portrait, Monotone, Custom, e-Portrait, Underwater, Colour Creator, Art Filters, Colour Profile Control, Monochrome Profile Control
Gradation Auto, Normal, High Key, Low Key
Highlight & Shadow Control ±7 steps for highlight, shadow and midtone
Art Filters Pop Art, Soft Focus, Pale & Light Colour, Light Tone, Grainy Film, Pin Hole, Diorama, Cross Process, Gentle Sepia, Dramatic Tone, Key Line, Water Colour, Vintage, Partial Colour, Bleach Bypass and Instant Film
Art Filter Fine Tune Pop Art, Soft Focus, Pin Hole, Cross Process and Instant Film
Colour Creator Available
Colour Profile Control 12-colour saturation adjustment across 11 steps (-5 to +5), shading effect across 11 steps; settings can be stored to COLOR1-COLOR4
Monochrome Profile Control 8-colour filter effect with 3 strength steps, 11-step shading, film grain Off/Low/Medium/High, monochrome colour options; settings can be stored to MONO1-MONO4
Bracketing
Exposure Bracketing 3 or 5 frames at 0.3 / 0.7 / 1.0 EV; 7 frames at 0.3 / 0.7 EV
ISO Bracketing 3 frames at 0.3 / 0.7 / 1.0 EV
White Balance Bracketing 3 frames; A-B / G-M axis, 2 / 4 / 6 steps
Flash Bracketing 3 frames at 0.3 / 0.7 / 1.0 EV
Art Filter Bracketing Multiple picture modes, Art Filters, Colour Creator and Colour/Monochrome Profile Controls selectable
Focus Bracketing 3 to 999 frames, focus step 1-10 selectable
Focus Stacking Available with supported M.Zuiko lenses
Computational Photography
HDR HDR1, HDR2
HDR Bracketing 3 or 5 frames at 2.0 / 3.0 EV; 7 frames at 2.0 EV
Keystone Compensation Available
Fisheye Compensation 3 styles with M.Zuiko Digital ED 8mm F1.8 Fisheye PRO
Live ND ND2, ND4, ND8, ND16
Handheld High Res Shot JPEG 50MP: 8160 x 6120
JPEG 25MP: 5760 x 4320
RAW: 8160 x 6120
Tripod High Res Shot JPEG 50MP: 8160 x 6120
JPEG 25MP: 5760 x 4320
RAW: 10368 x 7776
Live Bulb / Live Time Available; update interval 0.5 to 60 sec
Live Composite Available; update interval 0.5 to 60 sec
Interval Mode Up to 999 frames with Time-Lapse Movie creation
Multiple Exposure 2 frames with auto gain adjustment and RAW image overlay
Aspect Ratios 4:3, 3:2, 16:9, 1:1, 3:4
One-Push Teleconverter 2x
Video Recording
Video Format MOV (MPEG-4 AVC/H.264)
Cinema 4K - 48kHz / 16-bit 4096 x 2160, 24p, IPB approx. 237Mbps
Cinema 4K - 96kHz / 24-bit 4096 x 2160, 24p, IPB approx. 240Mbps
4K UHD - 48kHz / 16-bit 3840 x 2160, 30p / 25p / 24p, IPB approx. 102Mbps
4K UHD - 96kHz / 24-bit 3840 x 2160, 30p / 25p / 24p, IPB approx. 105Mbps
Full HD - 48kHz / 16-bit 30p / 25p / 24p: ALL-I approx. 202Mbps or Long GOP approx. 30Mbps
60p / 50p: Long GOP approx. 52Mbps
Full HD - 96kHz / 24-bit 30p / 25p / 24p: ALL-I approx. 205Mbps or Long GOP approx. 33Mbps
60p / 50p: Long GOP approx. 55Mbps
Vertical Video Available
Art Filter Movie Available
Digital Teleconverter Approx. 1.4x
Time-Lapse Movie 4K: 5 / 10 / 15 / 30 fps
Full HD: 5 / 10 / 15 / 30 fps
S&Q Capture Frame Rates 120, 60, 50, 30, 25, 24, 15, 12, 8, 6, 3, 2 and 1 fps
Video Stabilisation M-IS1, M-IS2, Off
Grid Line Available
Focus Peaking 4 colours
Red Frame During Recording Available
Recording Lamp Low / High
Time Code Rec Run / Free Run, Drop Frame / Non-Drop Frame
HDMI Live View Output Monitor Mode / Record Mode; YCbCr 4:2:2 8-bit supported in Record Mode
Movie Picture Modes Flat, OM-Log400, OM-Cinema1, OM-Cinema2
Movie AE Lock Available
Audio
Sound Recording Format Stereo Linear PCM, 16-bit / 48kHz
High-Resolution Audio Stereo Linear PCM, 24-bit / 96kHz
Microphone / Speaker Built-in stereo microphone / built-in mono speaker; external stereo microphone supported
Microphone Functions Wind noise reduction, recording volume, microphone volume limiter and audio dubbing for still images up to 30 sec
External Microphone Recording Adjustment Enable / Disable selectable
Wireless & Remote Functions
GPS Information Available via connected smartphone
Wireless Shooting Live View remote control available
Image Share Available with image-share marking
Easy Connection QR code connection
Bluetooth Connection Easy Wi-Fi connection via Bluetooth
Power-Off Image Transfer Supported via Bluetooth activation and Wi-Fi transfer
Wireless Release Half-press / full-press shutter operation and movie start/stop
Remote Control Accessory RM-WR2 supported
Web Camera
Web Camera Support UVC (USB Video Class) / UAC (USB Audio Class)
Playback & Image Editing
Playback Modes Single-frame, information display, 4/9/25/100-frame index, calendar, 2x-14x enlargement, movie playback and automatic image rotation
Information Display Luminance/RGB histogram, highlight/shadow warning, AF frame and photographic information
Movie Editing Beginning/end trimming and still-image extraction from 4K video
Still Image Editing RAW Data Edit, Gradation Auto, Monochrome, Sepia, Red-Eye Fix, Saturation, Resize, Trimming, Aspect, e-Portrait, Image Overlay and Post Recording
Rating Available
Print DPOF print reservation
Weatherproof Construction
Splashproof / Dustproof IPX1 protection when used with a compatible OM SYSTEM splashproof lens
Input / Output
USB USB Type-C; USB Power Delivery not supported
HDMI Micro HDMI Type D
Flash Attachment Hot shoe
Wireless LAN IEEE 802.11b/g/n
Bluetooth Bluetooth 5.2 Low Energy
Microphone Input 3.5mm stereo mini jack with plug-in power On/Off
PC Interface USB 2.0 Hi-Speed
Power
Battery BLS-7 Li-ion battery
Battery Status Display 4-step remaining power indicator
USB Bus Power Supported
USB Charging Built-in battery can be charged via USB when the camera is switched off
Sleep Mode 1 / 3 / 5 min or Off
Battery Life - Stills Approx. 410 shots using EVF or LCD, based on CIPA standards
Battery Life - Video Approx. 80 minutes CIPA standard; approx. 130 minutes when zoom and other operational functions are not used
Dimensions & Weight
Dimensions Approx. 125.8 x 74.5 x 43.3mm (W x H x D), excluding protrusions
Weight Including Battery & Memory Card Approx. 393g
Body Only Weight Approx. 344g
Operating Environment
Operating Temperature 0°C to +40°C
Storage Temperature -20°C to +60°C
Operating Humidity 30-90%
Storage Humidity 10-90%
Box Contents
Included Accessories OM SYSTEM PEN body, body cap, hot shoe cover, shoulder strap, instruction manual, warranty card and BLS-7 Li-ion battery

Specifications subject to change by the manufacturer without notice.

  • OM SYSTEM PEN camera body,
  • Body cap,
  • Hot shoe cover,
  • Shoulder strap,
  • BLS-7 rechargeable battery,
  • Instruction manual and warranty card

Manufacturer Warranty

This product comes with a

24 month Australian warranty

from OM SYSTEM Australia

Want to read more about warranties?

Click here

Add Extra Protection for Total Peace of Mind

Protect Your Investment
  • Priority repair service
  • Extended care beyond manufacturer warranty
  • Annual health check gear specific
  • Sensor clean on selected camera packages
  • Repair or replacement for manufacturing faults T&Cs apply
Learn what's included →

Reviews

* Dispatch timeframes are indications only and may vary for multiple quantities. Timeframes are updated regularly during normal business hours.
