Canon EU-V2 Overview

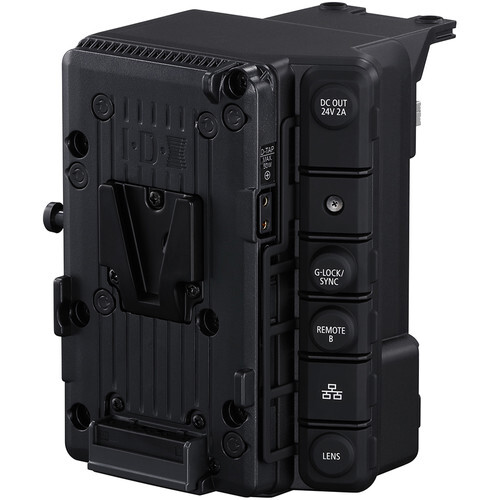

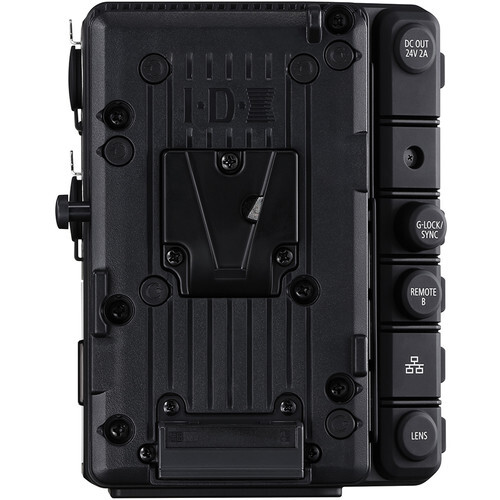

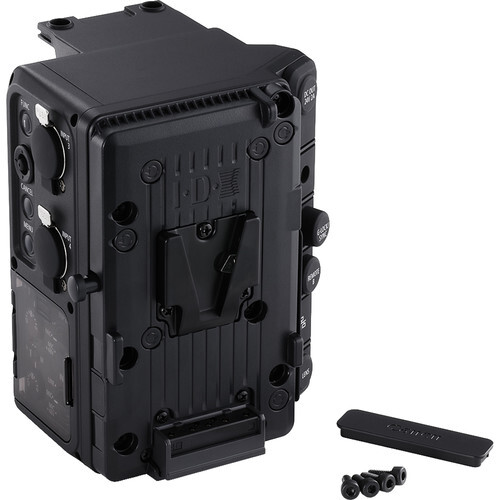

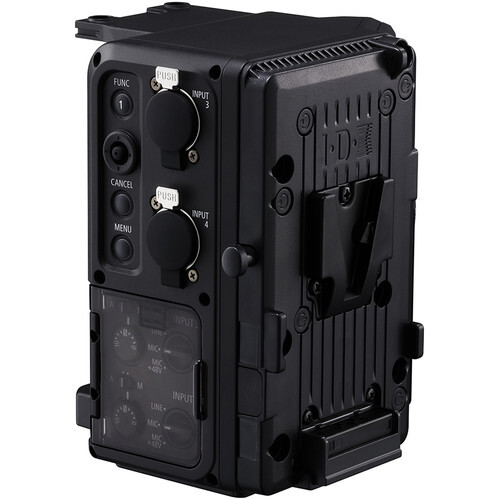

The Canon EU-V2 Expansion Unit 2 mounts onto your C500 Mark II camera and provides a V-mount battery mount for power, plus five ports to expand the capabilities of your camera. These ports include Genlock/Sync Out, Remote B (RS-422), Ethernet, DC Out (24V, 2A), and a lens control port. This unit will help turn your C500 Mark II into a full-sized production camera, with two 3-pin XLR connectors for audio input. The V-mount battery plate also features a D-Tap output for powering accessories.

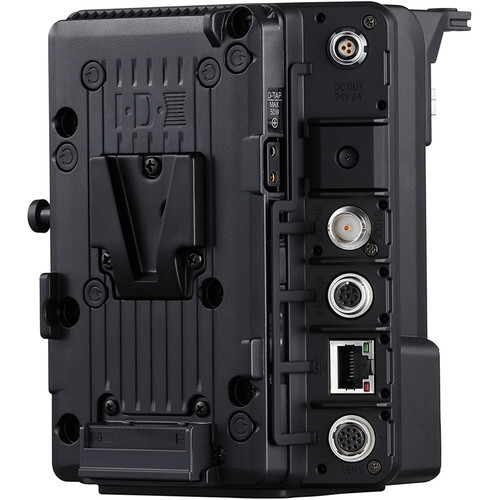

The Genlock/Sync Out port accepts a genlock signal that slaves your camera to the same time base as the other equipment receiving the genlock signal. The Remote B port allows you to control your camera using RS-422 protocol, while the Ethernet port allows you to connect your camera to a LAN for control and live streaming applications. The DC out port provides power for accessories, while the lens control port allows you to interface with select lenses. The ports have rubber covers to protect the connectors from dust intrusion when not in use.

• Genlock is the backbone of live/broadcast production as it ensures that all the production equipment, cameras, and switchers, are running in phase with each other. This prevents jumping images or black frames when switching between sources.
• The expansion unit can power its ports as well as your camera via the built-in V-mount. However, you cannot power the adapter from the camera, as the XLR connectors, DC power port, and lens port can only be supplied power from a V-mount battery and not from the camera body.
