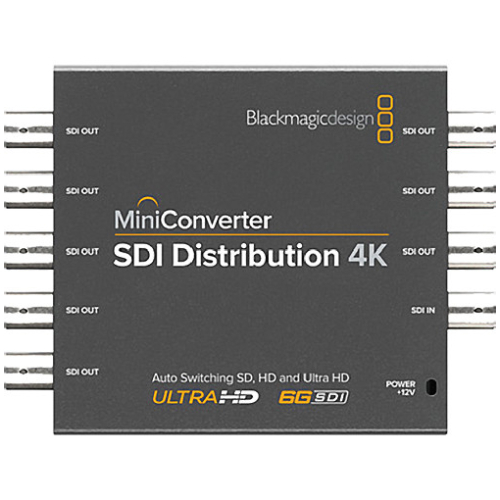

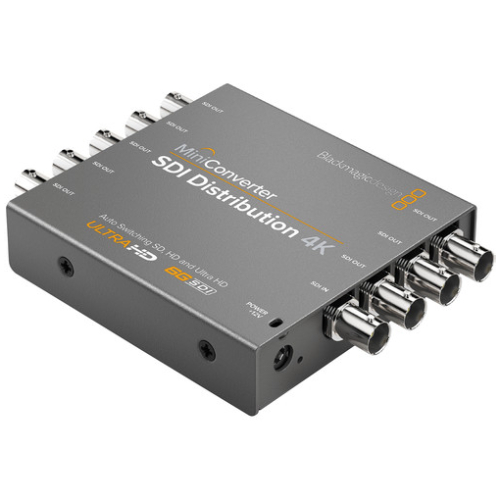

Blackmagic Design Mini Converter Overview

The Mini Converter SDI Distribution 4K from Blackmagic Design is the perfect solution for distributing a Single Link SD/HD/3G/6G-SDI signal to up to eight SDI devices. It automatically detects the input signal type and re-clocks it, and its eight outputs automatically match the SDI input video format. With its compact form factor and easy-to-use controls, this Mini Converter is ideal for broadcast, post-production, and professional AV applications.

Using 6G-SDI technology, the Mini Converter supports resolutions up to Ultra HD 4K (3840 x 2160) at up to 30 fps and DCI 4K (4096 x 2160) at 24 fps, as well as SD, HD, and 3G-SDI signals. It supports all SDI-related transmission features, including embedded audio, and ancillary data, and even handles ASI signals - asynchronous signals that carry multiple compressed programs that can be at varying transmission speeds. The Mini Converter's settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers. The USB port also enables the firmware to be updated. For powering the device, a 12V power supply is included with international socket adapters.

Additional Features

  • 4:2:2 and 4:4:4 sampling and Colour precision
  • 24-bit, 48 kHz audio sampling
  • Compliant with SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, and SMPTE 425M standards

Barcode (UPC / EAN): 9338716002621

BLACKMAGIC DESIGN MINI CONVERTER

INTERFACES

Input 1 x BNC (6G-SDI)
Output 8 x BNC (6G-SDI)
Other I/O 1 x USB Type-A Firmware

STANDARDS

Video Standard Compliance SMPTE 259M/292M/296M/372M/425M
Reclocking Yes

TRANSMISSION

Video Format SDI (4:2:2 RGB, YUV)
NTSC: 23.98/29.97 fps
PAL: 25 fps
720p: 59.94/60 fps
1080i: 50/59.94/60 fps
1080PsF: 23.98/24/25/29.97/30 fps
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
DCI 2KPsF: 23.98/24/25 fps
DCI 2K: 23.98/24/25 fps
UHD 4K: 23.98/24/25/29.97/30 fps
DCI 4K: 24 fps
Maximum Sampling Rate 48 kHz / 24-Bit

POWER

Power Consumption Power Supply: 12 to 30 VDC (4.8 W)

ENVIRONMENTAL

Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 113°F / -20 to 45°C
Operating Humidity 0 to 90%

GENERAL

Dimensions 12.2 x 9.2 x 2.3 cm
Weight 0.33 kg


* Specifications subject to change by the manufacturer without notice

  • Blackmagic Design Mini Converter SDI Distribution 4K
  • Software CD-ROM
  • 12V Power Supply with International Socket Adapters
