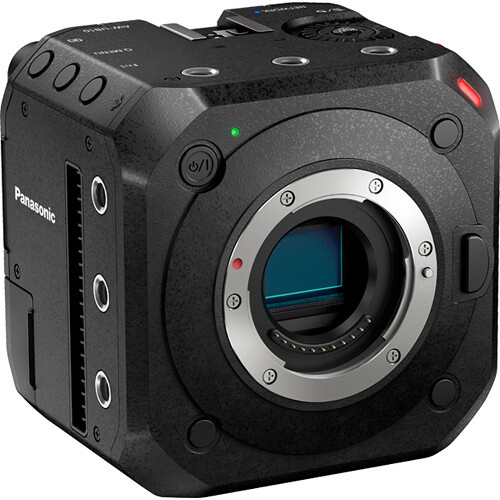

Panasonic AW-UB10 4K Multipurpose Box Camera

Multipurpose 4K Box-Style Camera

The Panasonic AW-UB10 4K Multipurpose Box Camera delivers exceptional detail and cine-style capture in a compact, modular design ideal for gimbal and drone use, as well as broadcast, live streaming, vlogging, and cinema production. It integrates seamlessly with Panasonic PTZ cameras, supports NDI HX2, and features accurate, real-time autofocus and subject tracking. This digital cinema camera boasts a 10.3MP M4/3" MOS sensor, MFT lens mount, and a wide 13-stop dynamic range, making it perfect for capturing scenes with varying lighting conditions.

10.3MP MOS Sensor

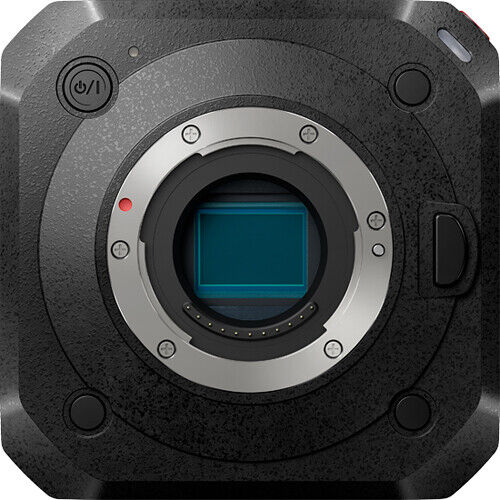

The AW-UB10's 10.3MP 4/3" MOS sensor produces high-resolution images with excellent colour reproduction and enables shallow depth-of-field looks. A wide 13-stop dynamic range provides detailed capture even at lower light levels.

Panasonic PTZ Integration

The use of common IP protocols enables the AW-UB50 to seamlessly integrate with Panasonic PTZ cameras, letting you use a single remote panel, remote controller, or live switcher with multiple cameras.

AW-UE160 Colour Compatibility

The AW-UB10 has a colour profile highly compatible with the AW-UE160 4K camera, providing consistency among different setups.

Multiple Interfaces

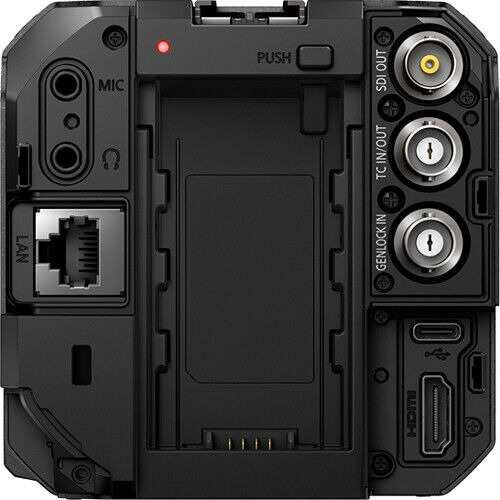

Multiple interfaces on the AW-UB10 include 3G-SDI out, TC in/out, genlock in, HDMI Type A, LAN, USB-C, 3.5mm microphone in, and headphone out ports. The LAN port is PoE+ compliant for power supply, allowing video transmission, control, and power supply over a single LAN cable, simplifying your on-set cabling.

NDI HX2 Support

NDI HX2 support lets you share video data with networked NDI-compatible devices, making it easy to build IP-based systems.

Real-Time Autofocus and Tracking

Real-time face/iris autofocus and body recognition make it easy to track your subjects while maintaining sharp focus.

IMAGING

Lens Mount
Micro Four Thirds
Lens Communication
Yes
Sensor Resolution
Actual: 11.9 Megapixel
  Effective: 10.3 Megapixel
Image Sensor
Four Thirds MOS
Capture Type
Stills & Video

EXPOSURE CONTROL

Shutter Type
Electronic Rolling Shutter
ISO Sensitivity Range
160 to 800 (Extended: 160 to 51,200)
  400 to 2000 (Extended: 400 to 25,600)
Advertised Dynamic Range
13 Stops

VIDEO CAPTURE

Fast-/Slow-Motion Support
Yes
Gamma Curve
HDR-HLG, Panasonic V-Gamut, Panasonic V-Log, Rec 2100 HLG, Rec709, V-Log
Built-In Microphone
Stereo
IP Streaming
Yes

INTERFACE

Media/Memory Card Slot
Dual Slot: SD/SDHC/SDXC (UHS-II) [V90 or Faster Recommended]
Video I/O
BNC (3G-SDI) Output
  HDMI (Unspecified Signal) Output
Audio I/O
1/8" / 3.5 mm TRS Stereo Mic/Line Input on Camera Body
  1/8" / 3.5 mm TRS Stereo Headphone Output on Camera Body
Power I/O
Barrel
Other I/O
USB-C
  BNC (Timecode) Input/Output
  BNC (Genlock) Input/Output
  RJ45 (LAN) Input/Output

FOCUS

Focus Mode
Continuous-Servo AF, Automatic, Manual Focus

POWER

PoE Support
PoE+ 802.3at

GENERAL

Shoe Mount
Cold Shoe
Tripod Mounting Thread
3/8"-16 Female (Bottom)
Accessory Mounting Thread
3/8"-16
Material of Construction
Aluminium
Dimensions (W x H x D)
9.3 x 9.3 x 7.8 cm
Weight
0.545 kg


* Specifications subject to change by the manufacturer without notice.

  • Panasonic AW-UB10 4K Multipurpose Box Camera
  • AC Adapter

Manufacturer Warranty

This product comes with a

24 month Australian warranty

from Panasonic Australia
