Kondor Blue Komodo Ultimate Rig - Gold Mount Battery - Black
SKU code: 51660
- Modular Camera Cage with Side Rosettes
- Top Handle with Start/Stop Control
- 501 Baseplate, Extension Arms, Handgrips
- Gold Mount Battery Plate, 15mm Rod Clamp
- 12" Long 15mm Rods
- Top NATO & Left/Right NATO Safety Rails
- 1/4"-20 & 3/8"-16 ARRI Accessory Threads
You May Also Like
The Essentials:
Miller CX8 Fluid Head with Toggle 2-Stage Alloy Tripod System
$4,795.00
1300 365 220
Action Mounts:
Bags, Cases & Straps:
Batteries & Chargers:
Tripods & Monopods:
Gimbals & Stabilisers:
Flashes & Lighting:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Audio Equipment:
Studio Lighting:
Cables & Connectivity:
Storage:
Other:
Kondor Blue Komodo Ultimate Rig - Gold Mount Battery - Black

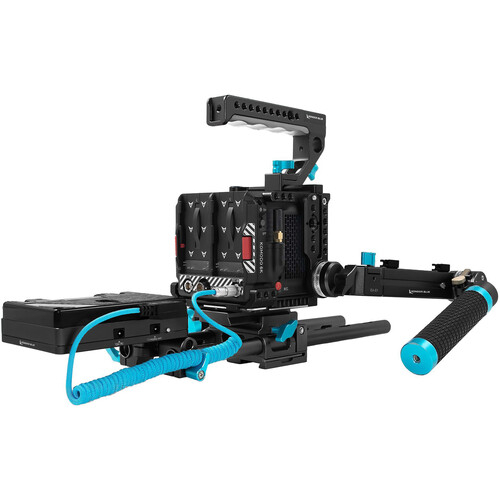

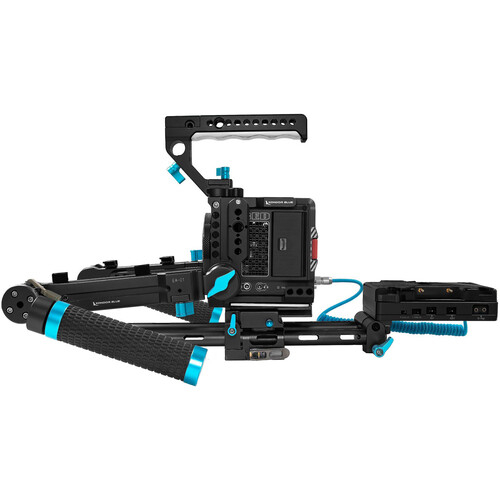

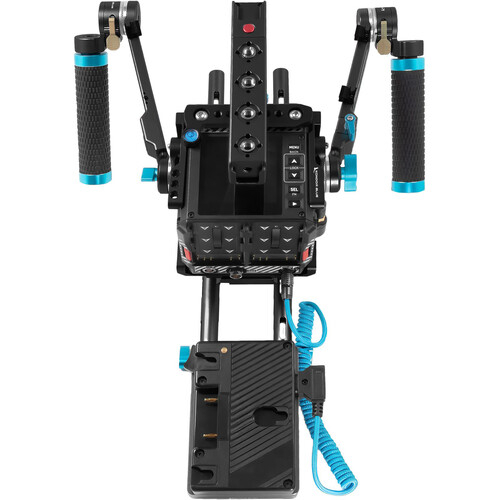

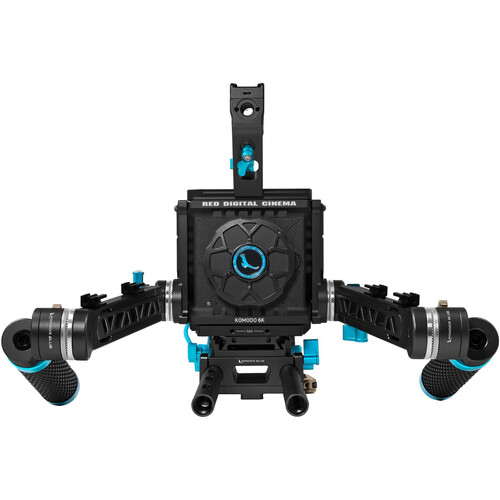

Secure your RED KOMODO 6K cinema camera with the shoulder-mount Ultimate Camera Rig from Kondor Blue. This comprehensive rig in black includes a dedicated modular camera cage, a run/stop top handle, an ARRI-style universal baseplate, a quick release 501 plate, right and left rosette extension handgrips, a Gold mount battery plate, and a pair of 12-inch long 15mm PPSH rods. It's designed for attaching a Gold mount battery, mounting accessories, and providing protection for your camera setup.
Kondor Blue Camera Cage for RED KOMODO (Black, Cage Only)
Add protection and a variety of accessories to your RED KOMODO 6K cinema camera with this black Camera Cage from Kondor Blue. The camera mounts onto the formfitting cage using top and bottom screws so it doesn't twist or slip, and there is rubber padding on the base to protect the camera from scratching or moving. Its open design allows you to access all the camera's ports and controls.
The cage offers ARRI-style rosettes on the left and right sides so you can add optional side handgrips or extension arms for 360° rotation. There are also 1/4"-20 threads and two integrated NATO rails on the sides with safety pins to prevent your accessories from sliding. On the top of the cage is an integrated NATO rail with multiple 1/4"-20 threads and a 3/8"-16 ARRI-style anti-twist thread for accessories such as a monitor, top handle, or microphone. On the bottom, there are 1/4"-20 and 3/8"-16 tripod mounting threads, and on the front are two threads for an optional lens support. A magnetic tool set including an Allen wrench stores in the base of the cage.
Features
Compatibility
RED KOMODO 6K cinema camera
Modular Design
Constructed with top, side, and bottom plates, and each plate can be mounted independently of the others
Top Plate
Low-profile NATO rail with bubble level, 1/4"-20 threads, and 3/8"-16 ARRI-style threads
Side Plates
Symmetrical rosettes, vertical NATO rails with safety pins, 1/4"-20 threads, and 3/8"-16 ARRI-style threads
Bottom Plate
Helicoil steel threads, magnetic tool, side wings with 1/4"-20 threads, rubber pads for camera protection, and front threads for a Kondor Blue lens support
Accessory Options
Compatible with the Kondor Blue 501 ARRI-style baseplate for an 85mm height from mounting rods
Kondor Blue Cage Top Handle with Start/Stop Camera Control for Select Cameras (Black)
This black Cage Top Handle with Start/Stop Camera Control from Kondor Blue mounts on top of your cage or top plate using its NATO clamp. This universal cheese-style handle features multiple 1/4"-20, 3/8"-16, and ARRI-style anti-twist threads, two shoe mounts, and a single 15mm rod port. The ARRI-style threads on the top feature pre-inserted 3/8"-16 to 1/4"-20 bushings so you have additional options for mounting your accessories.
The handle also features a start/stop button and a LANC port that can connect to a wide variety of camera models, such as those from Z CAM, Blackmagic, Sony, Canon, Panasonic, JVC, and more, using a separately available cable. The grip of the Aluminium handle features a smooth, ergonomic design for added comfort and grip.
Quick Features
- Multiple 1/4"-20, 3/8"-16, and ARRI-style accessory threads
- Handle mounts with NATO clamp
- LANC trigger port with start/stop button
- Two shoe mounts and a single 15mm rod port for additional accessories
- Made from durable Aluminium with an ergonomic grip
- Comes in black Colour
Compatibility
- Start/stop control via Sony LANC/Panasonic protocol for Z CAM, Blackmagic, Sony, Canon, Panasonic, JVC, and more
- Cage or plate with NATO rail
- Magic arms, handles, and 15mm rod system
- Kondor Blue Mini Quick Release Plate
Kondor Blue 15mm ARRI-Standard Baseplate for BMPCC 4K/6K Cage (Space Grey)
Although featuring a fairly universal design, the space grey Kondor Blue 15mm ARRI-Standard Baseplate is designed for Kondor's Blackmagic Pocket Cinema Camera 4K/6K cages. It features an ARRI-standard dovetail and supports 15mm LWS rods. This baseplate has a side-load camera plate system, which lets you easily mount your camera from the top instead of having to slide it in from the front.
A Manfrotto 501-standard camera plate is included. It comes with 1/4"-20 and 3/8"-16 mounting screws and offers 1/4"-20 and 3/8"-16 tripod mount threads on the bottom. It's also rubber-padded to minimize twisting and prevent scratching.
Additional Features
- ARRI-standard dovetail
- 15mm LWS rod support
- Side-load camera plate system
- Manfrotto 501 standard camera plate
- 1/4"-20 and 3/8"-16 mounting screws
- 1/4"-20 and 3/8"-16 tripod mount threads
Kondor Blue PPSH 15mm Rods (Pair, Space Grey, 12")
Add a pair of standard 15mm rods to your rig with this two-pack of 12" PPSH 15mm Rods from Kondor Blue. These Space grey Aluminium threaded rods feature PPSH cutouts throughout as part of the design, making them lighter yet still durable.
Each 15mm rod can be used to support various accessories such as follow focus systems, servo motors, lens supports, battery mounts, and more. For custom lengths, multiple units can be combined using optional Kondor M12 rod extension screws.
Kondor Blue Cine Battery Plate with 15mm Rod Clamp (Gold Mount, Space Grey)
Add professional battery power to your rig with this space grey Gold mount Cine Battery Plate from Kondor Blue. The plate attaches to your rig with its built-in 15mm rod clamp and provides multiple DC power output ports for your camera and accessories.
The plate includes a switchable 7.4/8.4V 1.35mm DC barrel output, a 5V 2.5mm barrel output, a 12V 2.5mm barrel output, and two D-Tap outputs. It also has a 15V 2.5mm barrel input/output that allows you to input AC power to power accessories connected to the other outputs, as well as a separate 2.5mm barrel input to charge the battery. The 15mm rod clamps are secured on separately available LWS rods via two blue locking levers.
Kondor Blue Coiled D-Tap to Female 2-Pin LEMO-Type Power Cable for RED KOMODO (14-29")
Power your RED KOMODO cinema camera using a D-Tap source with this Coiled D-Tap to Female 2-Pin LEMO-Type Power Cable from Kondor Blue. The coiled power cable measures 14 to 29" in length and is braided for flexibility and to prevent snags and knotting. It features a D-Tap male connector on one end and a 2-pin female LEMO-type connector on the other end to provide power from a professional battery such as a V-mount, Gold mount, or another D-Tap power source to the camera. There is a status LED on the D-Tap connector to indicate power.
Compatibility
RED KOMODO cinema camera
D-Tap power source
Kondor Blue Aluminium Body Cap for Canon RF Mount Cameras (Space Grey)
Protect your camera's mount and sensor with this Aluminium Body Cap for Canon RF Mount Cameras, in space grey, from Kondor Blue. The engraved mounting indicators show you which way to turn the cap while holding it by its edge-gripping ridges. The cap locks into place in the camera's mount, and the anodized finish protects the cap from scratches and scuffs.
KONDOR BLUE CAMERA CAGE FOR RED KOMODO (BLACK, CAGE ONLY) | |
Support Type
|
Cage
|
Camera Compatibility |
RED KOMODO
|
MOUNTING | |
Accessory Mounting |
Cage
|
Multiple 1/4"-20 Female Thread | |
Multiple ARRI Anti-Twist 3/8"-16 Female Thread | |
Camera Mounting |
1/4"-20 Male Screw, 3/8"-16 Male Screw
|
Tripod Mounting |
1/4"-20 Female Thread, 3/8"-16 Female Thread
|
Rosettes |
Cage, Sides
|
ARRI Rosette w/ M6 Female Thread | |
Rail Mounting |
Cage, Top
|
NATO Rail | |
Cage, Sides | |
NATO Rail | |
GENERAL | |
Weight |
0.312 kg
|
KONDOR BLUE CAGE TOP HANDLE WITH START/STOP CAMERA CONTROL FOR SELECT CAMERAS (BLACK) | |
Built-In Controls
|
Remote Trigger
|
MOUNTING | |
Attachment Method |
Attaches via Rail Clamp
|
Rod Standard |
15 mm Single Rod
|
Rod Ports |
15 mm Rod Port
|
Accessory Mounting |
Multiplex 1/4"-20 Thread
|
Multiplex 3/8"-16 Thread | |
Multiplex ARRI Anti-Twist 3/8"-16 Thread | |
Shoe Mounting |
Built-In Cold Shoe Slot
|
Rail Mounting |
NATO Rail Clamp
|
GENERAL | |
Inputs/Outputs |
LANC
|
Materials |
Aluminium
|
Dimensions |
12.7 x 7.6 x 2.5 cm
|
Weight |
0.170 kg
|
KONDOR BLUE 15mm ARRI-STANDARD BASEPLATE FOR BMPCC 4K/6K CAGE (SPACE GREY) | |
Support Type
|
Baseplate
|
Camera Compatibility |
Blackmagic Pocket Cinema Camera 4K, Blackmagic Pocket Cinema Camera 6K
|
MOUNTING | |
Rod Standard |
15 mm LWS / 60 mm Spacing
|
Camera Mounting |
ARRI Dovetail with 1/4"-20 Male Screw, 3/8"-16 Male Screw
|
Tripod Mounting |
Baseplate
|
1/4"-20 Female Thread, 3/8"-16 Female Thread, Manfrotto 501 | |
Rod Ports |
15 mm Rod Port
|
GENERAL | |
Materials |
Aluminium
|
Dimensions |
12.7 x 10.16 x 8.89 cm
|
Weight |
0.323 kg
|
KONDOR BLUE PPSH 15mm RODS (PAIR, SPACE GREY, 12") | |
GENERAL | |
Diameter |
15 mm
|
Length |
30.5 cm
|
Material |
Aluminium
|
Thread Type |
Female / Female
|
Thread Size |
12 mm
|
Number of Rods |
2
|
Weight |
0.057 kg
|
KONDOR BLUE CINE BATTERY PLATE WITH 15mm ROD CLAMP (GOLD MOUNT, SPACE GREY) | |
POWER | |
Power Input |
DC Jack: 15 VDC
|
Power Output |
D-Tap: VDC
|
DC Jack: 15 VDC | |
DC Jack: 12 VDC | |
DC Jack: 7.4 to 8.4 VDC | |
DC Jack: 5 VDC | |
GENERAL | |
Camera Power Method |
Connector
|
Inputs/Outputs |
D-Tap
|
2.5 mm Coaxial | |
DC Jack | |
Plate Front / Battery Mount |
Gold Mount
|
Plate Rear Mount |
15 mm Rod Clamp
|
Number of Battery Bays |
1
|
Material of Construction |
ABS Plastic, Aluminium
|
Dimensions |
20.3 x 12.7 x 5.1 cm
|
Weight |
0.277 kg
|
KONDOR BLUE COILED D-TAP TO FEMALE 2-PIN LEMO-TYPE POWER CABLE FOR RED KOMODO (14-29") | |
GENERAL | |
Connector 1 |
2-Pin LEMO-Type Female (Locking)
|
Connector 2 |
D-Tap Male (Right-Angle)
|
Cable Length |
35.6 to 73.7 cm
|
Weight |
0.040 kg
|
KONDOR BLUE ALUMINIUM BODY CAP FOR CANON RF MOUNT CAMERAS (SPACE GREY) | |
GENERAL | |
Camera Body Mount |
Canon RF
|
Material |
Aluminium
|
* Specifications subject to change by the manufacturer without notice.
- Kondor Blue Camera Cage for RED KOMODO (Black, Cage Only)
- Set of Attachment Screws
- Magnetic Tool Set
- Kondor Blue Cage Top Handle with Start/Stop Camera Control for Select Cameras (Black)
- 3/8"-16 to 1/4"-20 Bushing
- Kondor Blue 15mm ARRI-Standard Baseplate for BMPCC 4K/6K Cage (Space Grey)
- Brand Sticker
- Kondor Blue PPSH 15mm Rods (Pair, Space Grey, 12")
- Kondor Blue Rosette Adjustable Length Extension Arm Set (Space Grey, Right and Left)
- Kondor Blue Adjustable Rosette Extension Arm (Right, Space Grey)
- Kondor Blue Adjustable Rosette Extension Arm (Left, Space Grey)
- Kondor Blue Quick Release Rosette Handgrip Set (Left and Right, Space Grey)
- Kondor Blue Quick Release Rosette Handgrip (Right, Space Grey)
- Kondor Blue Quick Release Rosette Handgrip (Left, Space Grey)
- Kondor Blue Cine Battery Plate with 15mm Rod Clamp (Gold Mount, Space Grey)
- Kondor Blue Coiled D-Tap to Female 2-Pin LEMO-Type Power Cable for RED KOMODO (14-29")
- Kondor Blue Aluminium Body Cap for Canon RF Mount Cameras (Space Grey)
Manufacturer Warranty
This product comes with a
12 month Australian warranty
from Kondor Blue Australia
Want to read more about warranties?
