Kondor Blue Komodo Cage with Top Handle - Black

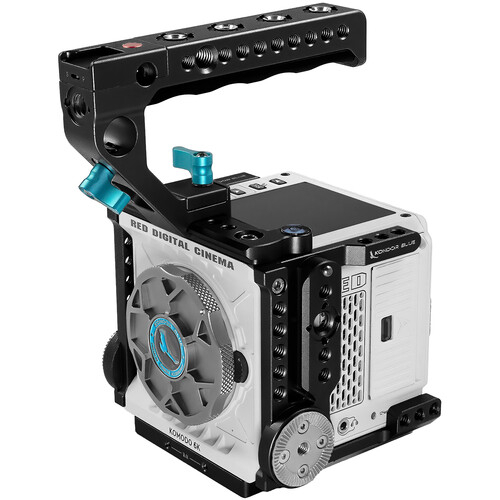

Both in black, the RED KOMODO Cage with Top Handle from Kondor Blue features a minimalist, form-fitting design and offers left and right rosettes, top and side NATO rails, standard 1/4"-20 and anti-twist 3/8"-16 threads, and 1/4"-20 and 3/8"-16 tripod mount threads. On the front, the cage features two threads for an optional lens support. The powered remote trigger top handle attaches to the top NATO rail by quick release and provides two shoe mounts, a sideways 15mm rod port, and anti-twist threads. A magnetic tool set including an Allen key stores in the base of the cage.
Kondor Blue Camera Cage for RED KOMODO (Black, Cage Only)
Add protection and a variety of accessories to your RED KOMODO 6K cinema camera with this black Camera Cage from Kondor Blue. The camera mounts onto the formfitting cage using top and bottom screws so it doesn't twist or slip, and there is rubber padding on the base to protect the camera from scratching or moving. Its open design allows you to access all the camera's ports and controls.
The cage offers ARRI-style rosettes on the left and right sides so you can add optional side handgrips or extension arms for 360° rotation. There are also 1/4"-20 threads and two integrated NATO rails on the sides with safety pins to prevent your accessories from sliding. On the top of the cage is an integrated NATO rail with multiple 1/4"-20 threads and a 3/8"-16 ARRI-style anti-twist thread for accessories such as a monitor, top handle, or microphone. On the bottom, there are 1/4"-20 and 3/8"-16 tripod mounting threads, and on the front are two threads for an optional lens support. A magnetic tool set including an Allen wrench stores in the base of the cage.
Features
Compatibility
RED KOMODO 6K cinema camera
Modular Design
Constructed with top, side, and bottom plates, and each plate can be mounted independently of the others
Top Plate
Low-profile NATO rail with bubble level, 1/4"-20 threads, and 3/8"-16 ARRI-style threads
Side Plates
Symmetrical rosettes, vertical NATO rails with safety pins, 1/4"-20 threads, and 3/8"-16 ARRI-style threads
Bottom Plate
Helicoil steel threads, magnetic tool, side wings with 1/4"-20 threads, rubber pads for camera protection, and front threads for a Kondor Blue lens support
Accessory Options
Compatible with the Kondor Blue 501 ARRI-style baseplate for an 85mm height from mounting rods
Kondor Blue Cage Top Handle with Start/Stop Camera Control for Select Cameras (Black)
This black Cage Top Handle with Start/Stop Camera Control from Kondor Blue mounts on top of your cage or top plate using its NATO clamp. This universal cheese-style handle features multiple 1/4"-20, 3/8"-16, and ARRI-style anti-twist threads, two shoe mounts, and a single 15mm rod port. The ARRI-style threads on the top feature pre-inserted 3/8"-16 to 1/4"-20 bushings so you have additional options for mounting your accessories.
The handle also features a start/stop button and a LANC port that can connect to a wide variety of camera models, such as those from Z CAM, Blackmagic, Sony, Canon, Panasonic, JVC, and more, using a separately available cable. The grip of the Aluminium handle features a smooth, ergonomic design for added comfort and grip.
Quick Features
- Multiple 1/4"-20, 3/8"-16, and ARRI-style accessory threads
- Handle mounts with NATO clamp
- LANC trigger port with start/stop button
- Two shoe mounts and a single 15mm rod port for additional accessories
- Made from durable Aluminium with an ergonomic grip
- Comes in black Colour
Compatibility
- Start/stop control via Sony LANC/Panasonic protocol for Z CAM, Blackmagic, Sony, Canon, Panasonic, JVC, and more
- Cage or plate with NATO rail
- Magic arms, handles, and 15mm rod system
- Kondor Blue Mini Quick Release Plate
KONDOR BLUE CAMERA CAGE FOR RED KOMODO (BLACK, CAGE ONLY) | |
Support Type
|
Cage
|
Camera Compatibility |
RED KOMODO
|
MOUNTING | |
Accessory Mounting |
Cage
|
Multiple 1/4"-20 Female Thread | |
Multiple ARRI Anti-Twist 3/8"-16 Female Thread | |
Camera Mounting |
1/4"-20 Male Screw, 3/8"-16 Male Screw
|
Tripod Mounting |
1/4"-20 Female Thread, 3/8"-16 Female Thread
|
Rosettes |
Cage, Sides
|
ARRI Rosette w/ M6 Female Thread | |
Rail Mounting |
Cage, Top
|
NATO Rail | |
Cage, Sides | |
NATO Rail | |
GENERAL | |
Weight |
0.312 kg
|
KONDOR BLUE CAGE TOP HANDLE WITH START/STOP CAMERA CONTROL FOR SELECT CAMERAS (BLACK) | |
Built-In Controls
|
Remote Trigger
|
MOUNTING | |
Attachment Method |
Attaches via Rail Clamp
|
Rod Standard |
15 mm Single Rod
|
Rod Ports |
15 mm Rod Port
|
Accessory Mounting |
Multiplex 1/4"-20 Thread
|
Multiplex 3/8"-16 Thread | |
Multiplex ARRI Anti-Twist 3/8"-16 Thread | |
Shoe Mounting |
Built-In Cold Shoe Slot
|
Rail Mounting |
NATO Rail Clamp
|
GENERAL | |
Inputs/Outputs |
LANC
|
Materials |
Aluminium
|
Dimensions |
12.7 x 7.6 x 2.5 cm
|
Weight |
0.170 kg
|
* Specifications subject to change by the manufacturer without notice.
- Kondor Blue Camera Cage for RED KOMODO (Black, Cage Only)
- Set of Attachment Screws
- Magnetic Tool Set
- Kondor Blue Cage Top Handle with Start/Stop Camera Control for Select Cameras (Black)
- 3/8"-16 to 1/4"-20 Bushing
