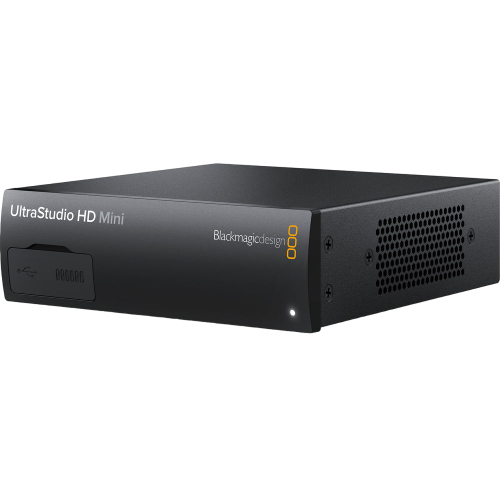

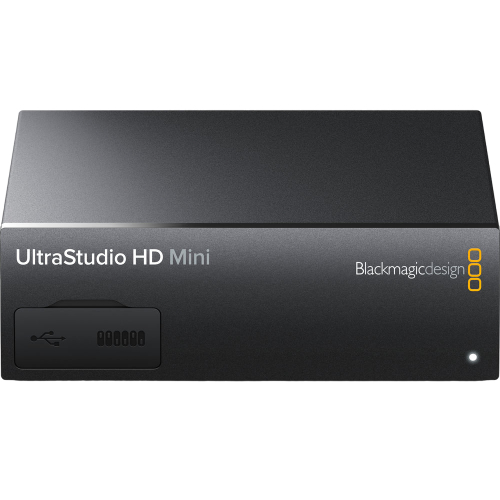

Blackmagic Design UltraStudio HD Mini
Perform footage acquisition from digital or analogue sources directly into your preferred NLE with the Blackmagic Design UltraStudio HD Mini. SDI and analogue video inputs enable video import from both modern and legacy professional video equipment. Leveraging the Thunderbolt 3 interface, the UltraStudio HD Mini can send and receive SD and HD video up to 1080p at 60 fps with up to 16 channels of embedded audio. Outputs include dual SDI for fill and key, as well as an HDMI output for connecting to consumer displays. The built-in RS-422 connection allows the UltraStudio HD Mini to interface seamlessly with professional broadcast decks.
Control

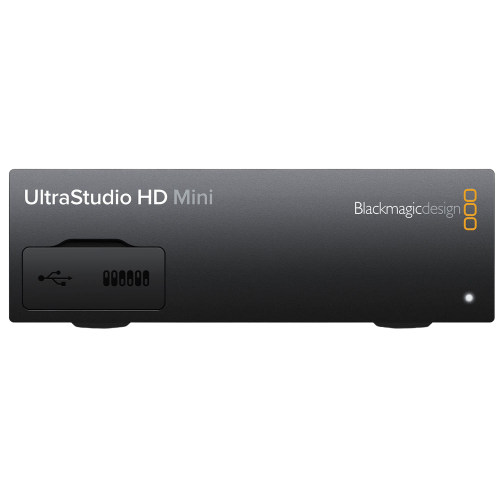

Use the DIP switches on the front panel or the RS-422 deck control port on the rear for software control. The separately available Teranex Mini Smart Panel can be purchased separately and can be used to control the UltraStudio Mini as well as for confidence monitoring.
Processing
- Colour Space Conversion: Hardware based real time.
- HD Down Conversion: Real time 10-bit hardware down conversion on SDI B output, Composite and S-Video when working in HD video formats on playback.
- Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles.
Real-Time Effects Support
- Final Cut Pro X internal effects
- Premiere Pro CC Mercury Playback Engine effects
- Avid Media Composer internal effects
Thunderbolt 3 Connectivity
Connects via Thunderbolt 3 to stream video. Bus-power over Thunderbolt 3 is sufficient to power the UltraStudio Mini, no separate power supply is required.
Software Application Support
- Blackmagic Design: DaVinci Resolve, Fusion
- Apple: Final Cut Pro X
- Premiere Pro CC, After Effects CC, Photoshop CC
- Avid: Media Composer, Pro Tools
- Steinberg: Cubase, Nuendo

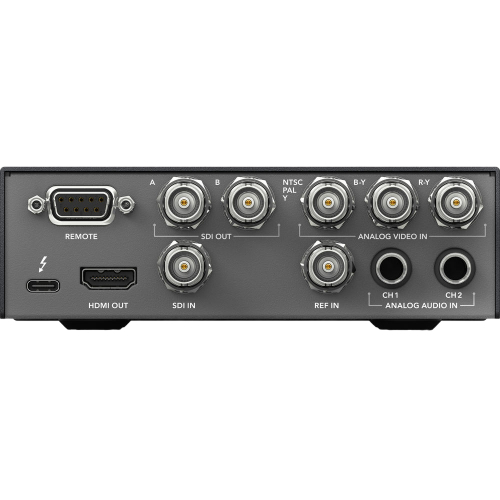

INPUTS / OUTPUTS
|
|
|
|
System Connection |
USB-C (Thunderbolt 3)
|
Video Inputs |
1x BNC (3G-SDI) Female
|
1x 3BNC (Component/Composite) Female | |
Audio Inputs |
2x 1/4" TRS Analog Female
|
Video Outputs |
2x BNC (3G-SDI) Female
|
1x HDMI (1.4b) Female | |
Other I/O |
1x DE-9/DB-9 RS-422 Input
|
1x BNC Reference Input | |
FORMAT SUPPORT
|
|
Input Video Format |
SDI (4:4:4/4:2:2)
|
DCI 2K at 23.98/24/25 fps | |
DCI 2KPsF at 23.98/24/25 fps | |
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps | |
1080PsF at 23.98/24/25/29.97/30 fps | |
1080i at 50/59.94/60 fps | |
720p at 50/59.94/60 fps | |
480i / 525 lines | |
576i / 625 lines | |
Output Video Format |
HDMI (8-Bit 4:4:4 RGB)
|
1080p at 30 fps | |
SDI (8/10/12-Bit 4:4:4 RGB) | |
1080p at 30 fps | |
Embedded Audio |
SDI: 16-Channel
|
HDMI: 2-Channel | |
STANDARDS
|
|
Video Standard Compliance |
SMPTE 259M/292M/296M/372M/425M-A/425M-B
|
HARDWARE
|
|
OS Compatibility |
Windows 10 or Later (64-Bit Only)
|
Windows 11 | |
macOS 11.1 or Later | |
Linux | |
ENVIRONMENTAL
|
|
Operating Temperature |
32 to 104°F / 0 to 40°C
|
Storage Temperature |
-4 to 113°F / -20 to 45°C
|
Operating Humidity |
0 to 90%
|
GENERAL
|
|
Dimensions |
16.99 x 14 x 4.45 cm
|
Weight |
0.608 kg
|
* Specifications subject to change by the manufacturer without notice.
- Blackmagic Design UltraStudio HD Mini
- QR Code for DaVinci Resolve & Additional Software Download
