Tripods & Monopods:

When the Manfrotto MH804 3 Way Tripod Head is used with a tripod, it provides independent control over each axis which makes it ideal for precision framing of shots. Its retractable levers allow for a convenient reduction in size, perfect for easy storage at home or transport to a professional shoot.

Control Each Individual Axis

The head comes with independent pan, tilt and angle locks that allow you to individually control each of the three axes to precisely frame your shots. Additionally, the inbuilt spring system provides enhanced tilting support with the weight of heavier lenses and off-centre loads, to support your professional gear in a range of photographic situations.

Retractable Levers

When in use the arms on the 3-way tripod head offer an extended handle to provide better grip and leverage when performing fine angle adjustments, but can also be easily retracted inside the body of the head. This reduces the overall size of the head, and permits easy storage and transport of the photo head.

Ergonomic Design

The levers have ergonomic rubber handles, great for when you need to quickly get a hold of them to change the axis and set up your shot quickly.

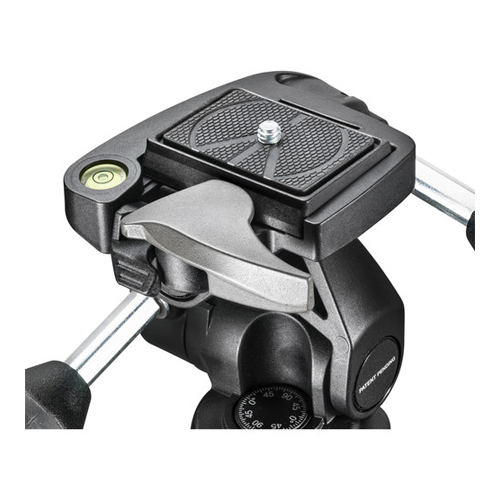

Quick Release Plate and Bubble Level

Using the 200LT-PL quick-release plate means you can easily remove your camera and attach it in place with minimal fuss. The head also comes with a super handy bubble level to make sure your composition is lined up perfectly and your horizon is level.

Durable Polymer Build

Constructed using a technical polymer design, makes the head both lightweight and durable. Perfect for travel shooters and photographers on the go, the Manfrotto MH 804-3W Tripod Head combines professional features and a compact portable design.

Weight

750 g

Safety Payload

4 kg

Material

Technopolymer

Head Type

3 Way Head

Top Attachment

1/4-inch screw, 3/8-inch thread female

Base Diameter

60 mm

Plate Type

200LT-PL

Friction Control

No

Front Tilt

-30° / +90°

Lateral Tilt

-30° / +90°

Panoramic Rotation

360

Ball Locking

No

Bubble Spirit Level (no.)

1

Colour

Black

Easy Link

No

Independent Pan Lock

Yes

Independent Tilt Lock

Yes

Maximum Working Temperature

60 C

Minimum Working Temperature

-30 C

Pan Bars Included

No

Pan Drag

NONE

Quick Release

Yes

Working Height

12 cm

Tilt Drag

NONE


Specifications subject to change by the manufacturer without notice
  • Manfrotto 3 Way Head - MH804-3W
  • Quick-Release Plate (200LT-PL)
