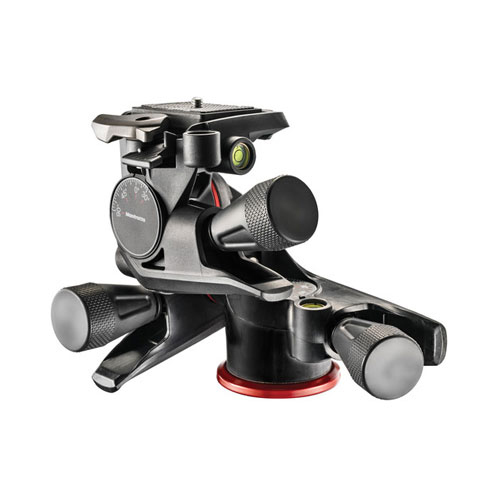

The Manfrotto 3-Way Geared Head has geared movement, allowing you to make micro-step adjustments directly to the camera platform for precise movement and placement. The head can support a payload of 4kg on its lightweight frame and comes with a quick release plate for quick and easy tripod set-up.

Adjust Axes in Micro-Steps

Rotating the micrometric knobs allows you to make precise micro-step adjustments to each axis, perfect for macro photography. For major adjustments, the knobs can be pressed in to unlock each axis individually, allowing you to move the camera where you need it.

Supports up to 4Kgs of Weight

Made from Adapto technopolymer, the 3-Way head is incredibly strong and light, weighing in at just 750g. With a maximum payload of 4kg, the head can support a good range of camera gear.

Smooth Tilt and Pan Action with Bubble Levels

The Geared Head provides a -20° / +90° front tilt range, a lateral tilt range of -90° / +30° and 360° panning. The smooth tilt and pan movement accompanied by three bubble levels on the head ensure that adjustments are quick, easy, and precise.

Quick Release Plate Included

The tripod head comes with the 200PL quick release plate with standard 1/4 inch screw. This allows you to quickly mount or remove your camera from a tripod when switching to and from handheld shooting.

Three Angle Scales

Angle scales on each of the three axes features are marked in 1° steps with a larger step marked every 5°so you can easily check adjust your camera position.

Suits a large Range of Tripods

A 3/8 inch thread on the base of the 3-Way Geared Head is compatible with a wide range of tripods.


750 g


X-PRO Geared Head

Safety Payload

4 kg



Head Type

Geared Head

Top Attachment

1/4" screw

Base Diameter

60 mm

Plate Type


Friction Control


Front Tilt

-20° / +90°

Lateral Tilt

-90° / +20°

Panoramic Rotation


Ball Locking


Bubble Spirit Level (no.)




Degrees Of Rotation For Each Full Turn Of Handle


Easy Link


Independent Pan Lock


Independent Tilt Lock


Maximum Working Temperature

60 C

Minimum Working Temperature

-30 C

Pan Bars Included


Pan Drag


Quick Release


Working Height

13 cm

Tilt Drag


* Specifications subject to change by the manufacturer without notice

  • Manfrotto 3-Way Geared Head - MHXPRO-3WG
  • 200PL Quick Release Plate
