Key Features:
- Advanced High-Data Rate Signal Converter
- TICO Encoder / Decoder
- Supports up to 4K DCI 4096x2160p Signals
- Two Independent 12G-SDI 10-Bit Outputs
- Gigabit Ethernet for up to 1080p60
- Optional 10G Optical Ethernet Support
- Supports Optional LCD Smart Front Panel
- Intelligent Thermal Heat Dissipation
- Manage Numerous Units from a Mac or PC
Blackmagic Design Teranex Mini IP Video 12G
SKU code: 61342
Australian Owned, Online Since 2001
Local Contact Centre
Industry Experts, Knowledgeable Team
Australia Wide Delivery
From Beginner to Pro, Affordable Gear
Secure Payment Methods
Key Features:
- Advanced High-Data Rate Signal Converter
- TICO Encoder / Decoder
- Supports up to 4K DCI 4096x2160p Signals
- Two Independent 12G-SDI 10-Bit Outputs
- Gigabit Ethernet for up to 1080p60
- Optional 10G Optical Ethernet Support
- Supports Optional LCD Smart Front Panel
- Intelligent Thermal Heat Dissipation
- Manage Numerous Units from a Mac or PC
You May Also Like
The Essentials:
Action Mounts:
Bags, Cases & Straps:
Tripods & Monopods:
Flashes & Lighting:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Audio Equipment:
Studio Lighting:
Cables & Connectivity:
Other:

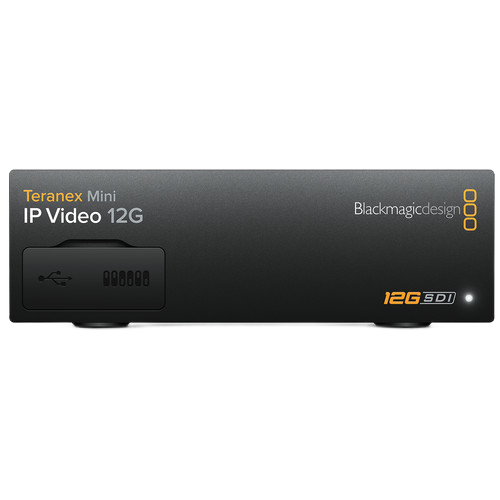

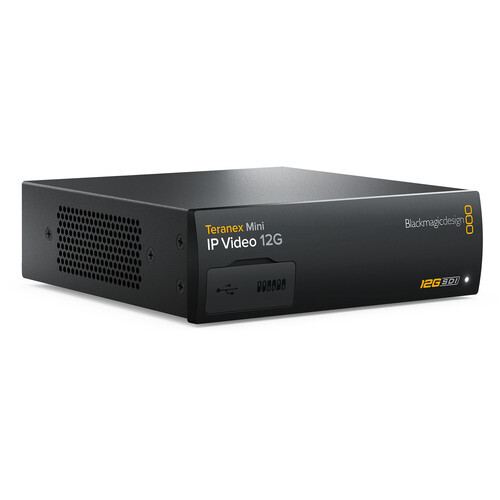

Blackmagic Design Teranex Mini IP Video 12G
The Blackmagic Design Teranex Mini IP Video 12G is a compact, high-performance 12G-SDI/Ethernet encoder/decoder designed for efficient video transmission over Ethernet networks. Supporting TICO encoding, it delivers high-quality video over Ethernet with minimal latency, making it an ideal solution for live events and broadcast trucks. With its portable size, the Teranex Mini can be easily integrated into rack setups, offering seamless video transport across a network. Multiple units can be used on the same network, and control is simplified via Blackmagic Video Hub software on Mac or Windows computers. This solution is perfect for professional video applications where high-quality and low-latency video over Ethernet is crucial.
The unit supports up to 1080p60 over a Gigabit Ethernet LAN with higher data rates supported by using an optional 10G optical Ethernet connector. The Mini IP Video 12G has a single 12G-SDI input and two 12G-SDI outputs in addition to the Gigabit Ethernet connector and a slot for an optional 10G SFP. An optional Smart Front Panel with a built-in LCD display provides local setup and control and replaces the standard panel with DIP switch setup that comes with the unit. Up to three units can be easily installed in an optional 1 RU 19" rack tray, and it features a built-in 90-240V power supply, and all you'll need is a standard IEC power cable, sold separately.
- Requires a minimum of two units-one for encoding the signal and one for decoding the signal.
- TICO encoding is a visually lossless compression designed to let you distribute video across an IP network.
- The unit supports signals up to 1080p60 over a standard Ethernet connection. For support of signals up to 12-G SDI (4K DCI or 4K UHDF), an optional 10G fiber optic Ethernet LC connector is required.
- Blackmagic Videohub Software can be used on Windows or Mac OS computers to turn them into a router server that can manage the connections between multiple units so you can build a large custom sized router on your network.
- Supports AC voltage using an optional IEC cable (Blackmagic units do not ship with a power cable) or you can power it via PoE+ with a compatible router.
- Setup is done via built-in DIP switches, Blackmagic Teranex setup software, or an optional Teranex Mini Smart Panel with LCD screen.
- You can control your Mini 12G-IP via the optional Teranex Mini Smart Panel with LCD screen or Blackmagic Video Hub software.
- Embedded audio is supported-there are no separate audio inputs/outputs.
- Blackmagic Teranex setup and Video Hub software is included on the SD card that ships with your unit.

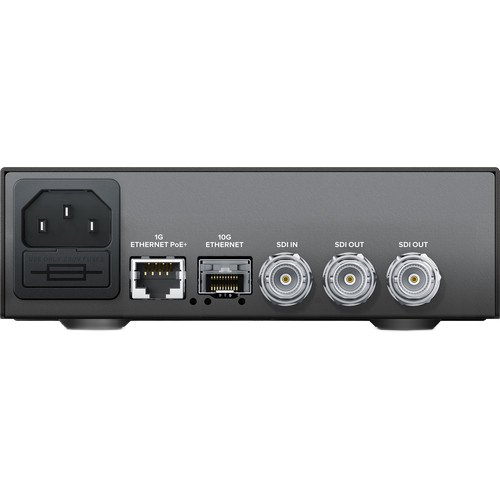

INPUTS / OUTPUTS
|
|
|
|
Video Inputs |
1x BNC (12G-SDI)
|
Video Outputs |
2x BNC (12G-SDI)
|
Other I/O |
1x RJ45 Input/Output
|
Expansion Slots |
1x SFP Slot
|
FORMAT SUPPORT
|
|
Input Video Format |
SDI (10-Bit 4:4:4/4:2:2 RGB, YUV)
|
DCI 4K at 23.98/24/25 fps | |
UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps | |
DCI 2K 23.98/24/25 fps | |
DCI 2KPsF 23.98/24/25 fps | |
1080p 23.98/24/25/29.97/30/50/59.94/60 fps | |
1080PsF 23.98/24 fps | |
1080i 50/59.94/60 fps | |
720p 50/59.94/60 fps | |
Output Video Format |
SDI (10-Bit 4:4:4/4:2:2 YUV)
|
DCI 4K at 23.98/24/25 fps | |
UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps | |
DCI 2K 23.98/24/25 fps | |
DCI 2KPsF 23.98/24/25 fps | |
1080p 23.98/24/25/29.97/30/50/59.94/60 fps | |
1080PsF 23.98/24 fps | |
1080i 50/59.94/60 fps | |
720p 50/59.94/60 fps | |
Embedded Audio |
SDI/LAN (RJ45)
|
STANDARDS
|
|
Video Standard Compliance |
SMPTE 259M/292M/296M/310M/425M
|
ITU -R BT.601/BT.656 | |
IP STREAMING
|
|
Video IP Encoding |
TICO: 4096 x 2160
|
Video IP Decoding |
TICO: 4096 x 2160
|
HARDWARE
|
|
Media Card Reader |
1x SD (Unspecified Type)
|
OS Compatibility |
macOS
|
Windows | |
POWER
|
|
Power I/O |
1x RJ45 (48 VDC ) Input
|
1x IEC C14 Input | |
Power Consumption |
Device: 90 to 240 VAC (16 W)
|
ENVIRONMENTAL
|
|
Operating Temperature |
32 to 104°F / 0 to 40°C
|
Storage Temperature |
-20 to 140°F / -28 to 60°C
|
Operating Humidity |
0 to 90%
|
GENERAL
|
|
Dimensions |
16.99 x 14 x 4.45 cm
|
Weight |
0.581 kg
|
* Specifications subject to change by the manufacturer without notice.
- Blackmagic Design Teranex Mini IP Video 12G
- SD Card with Software and Manual
