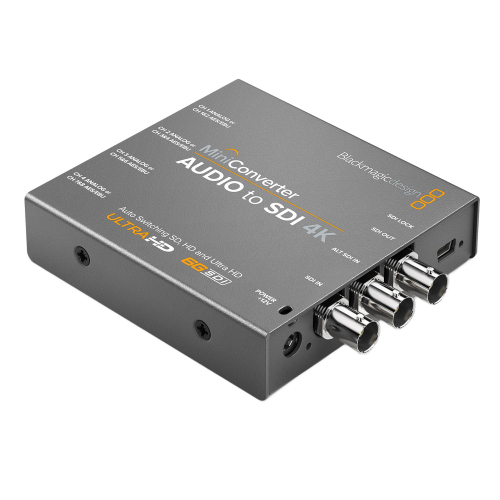

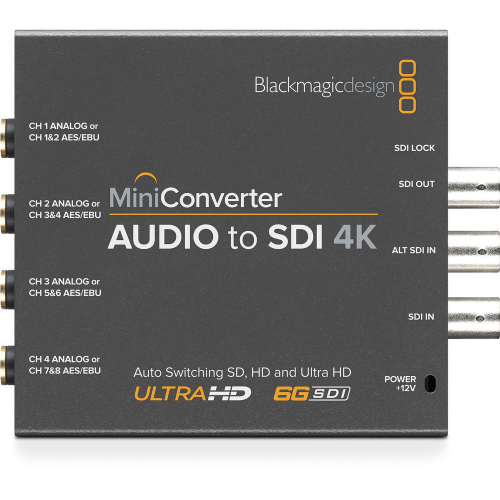

Blackmagic Design Mini Converter Audio to SDI 4K
Embed up to four channels of analog audio or eight channels of AES/EBU digital audio into SDI signals with the Blackmagic Design Mini Converter Audio to SDI 4K. Featuring a 6G-SDI input, it supports resolutions up to Ultra HD and DCI 4K, providing seamless audio embedding over a single SDI output for professional workflows.
Using 6G-SDI technology, the Mini Converter supports UHD and DCI 4K resolutions at up to 30 fps. The Mini Converter also supports Single Link SD, HD, and 3G-SDI signals, automatically detecting and switching between the different formats. A redundant SDI input is provided as an optional back up; with the converter switching over if the main SDI input is lost.

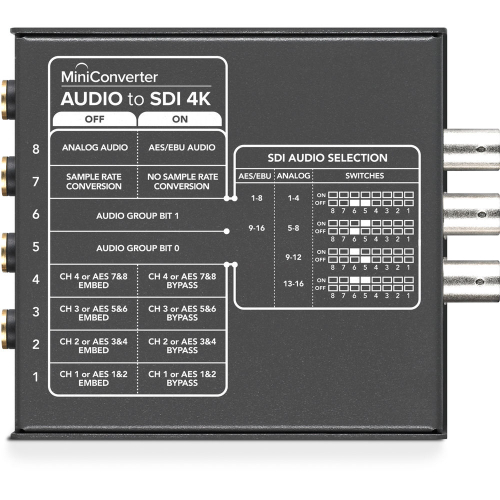

The Mini Converter's settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers. The USB port also enables the firmware to be updated. For powering the device, a 12 VDC power supply is included with international socket adapters.
- 4:2:2 and 4:4:4 sampling and colour precision
- Compliant with SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE ST-2036, ITU-R BT.656 and ITU-R BT.601
SDI Video Input |
1 x SD/HD/3G/6G-SDI
|
1 x SD/HD/3G/6G-SDI-SDI redundant input | |
SDI Video Output |
1 x SD/HD/3G/6G-SDI
|
Audio Input |
4 x 1/4" jacks
|
4 channels of balanced analog audio, or 8 channels of AES/EBU balanced digital audio | |
Multi-Rate Support |
Auto detection of SD, HD, 2K, UHD, and 4K signals
|
Reclocking |
Yes
|
Format Support |
SD:
|
NTSC 525/29.97 and 525/23.98 | |
PAL 625/25 | |
HD: | |
720p 59.94/60 | |
1080i 50/59.94/60 | |
1080PsF 23.98/24/25/29.97/30 | |
1080p 23.98/24/25/29.97/30/50/59.94/60 | |
2K: | |
2048x1080PsF 23.98/24/25 | |
2048/1080p 23.98/24/25 | |
UHD/4K | |
3840x2160p 23.98/24/25/29.97/30 | |
4096x2160p 23.98/24/25/29.97/30 | |
SDI Compliance |
SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE ST-2036, ITU-R BT.656, and ITU-R BT.601
|
SDI Video Rates |
Switchable between SD, HD, 3G, and 6G-SDI
|
SDI Auto Switching |
Automatically detects SD, HD, 3G, or 6G-SDI
|
SDI Video Sampling |
4:2:2, 4:4:4
|
SDI Audio Sampling |
24-bit, 48 kHz
|
SDI Colour Precision |
4:2:2, 4:4:4
|
SDI Colour Space |
YUV, RGB
|
Settings Control |
DIP switches or USB software for Mac OS X and Windows
|
Firmware Upgradeable |
Via USB 2.0
|
Power Supply |
12 VDC
|
Power Consumption |
8.4 W
|
Operational Voltage Range |
12 to 31 VDC
|
Operating Temperature |
32 to 104° F (0 to 40 ° C)
|
Storage Temperature |
-4 to 113° F (-20 to 45 ° C)
|
Relative Humidity |
0 to 90% non-condensing
|
Dimensions |
11.48 x 9.22 x 2.29 cm
|
Weight |
0.215 kg
|
* Specifications subject to change by the manufacturer without notice.
- Blackmagic Design Mini Converter Audio to SDI 4K
- 12 VDC Power Supply with International Socket Adapters
