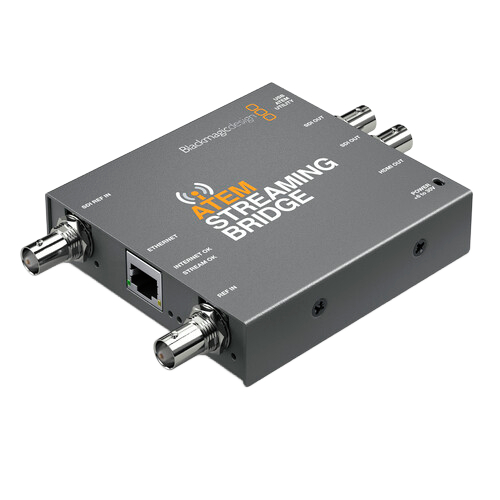

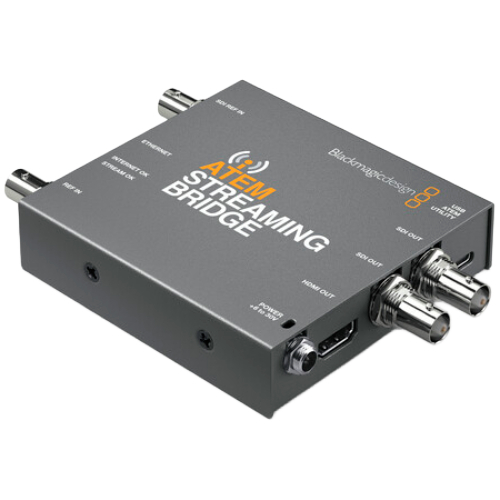

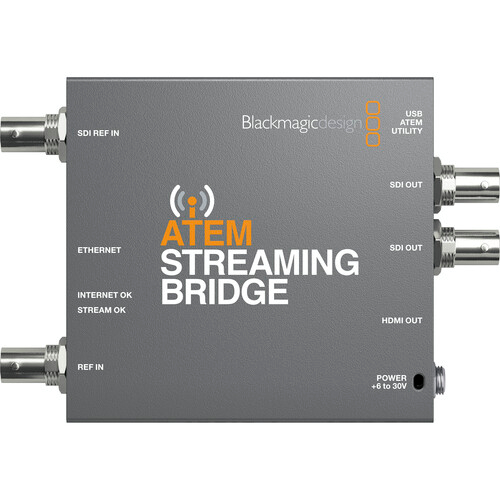

Blackmagic Design ATEM Streaming Bridge for ATEM Mini Pro Streaming Switchers
The Blackmagic Design ATEM Streaming Bridge is designed for ATEM Mini Pro Streaming Switchers, enabling you to convert the IP signal from any ATEM Mini Pro unit into SDI and HDMI video. It features two SDI outputs and a single HDMI output, supporting resolutions up to 1080p60. You can connect the Streaming Bridge directly to the streaming output of your ATEM Mini Pro, providing SDI and HDMI output for broadcast environments or direct monitoring. Additionally, by connecting the Streaming Bridge to the same LAN as your ATEM Mini Pro, the devices will automatically detect each other, making it easy to stream across the network.
The downloadable software enables you control the decoding settings as well as set an IP address to the device and save that information to your computer. That information can be emailed to any computer connected to an ATEM Mini Pro, and this allows the ATEM Mini Pro to locate and stream to the Streaming Bridge connected to the internet.
INPUTS / OUTPUTS
|
|
|
|
Video Outputs |
2x BNC (3G-SDI)
|
1x HDMI (1.4) | |
Other I/O |
1x RJ45
|
2x BNC Reference | |
FORMAT SUPPORT
|
|
|
|
Output Video Format |
HDMI
|
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps | |
1080i 50/59.94/60 fps | |
SDI (10-Bit 4:2:2 YUV) | |
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps | |
1080i 50/59.94/60 fps | |
STANDARDS
|
|
Video Standard Compliance |
SMPTE 259M/292M/296M/424M-B/425M-A/425M-B
|
IP STREAMING
|
|
Video IP Decoding |
H.264: 1920 x 1080
|
POWER
|
|
Power I/O |
1x Barrel (6 to 30 VDC ) Input
|
Power Consumption |
Device: 6 W
|
ENVIRONMENTAL
|
|
Operating Temperature |
32 to 72°F / 0 to 40°C
|
Storage Temperature |
-4 to 140°F / -20 to 60°C
|
Operating Humidity |
0 to 90% (Recommended)
|
GENERAL
|
|
Certifications |
CE, FCC, Kcc
|
Dimensions |
13.41 x 9.22 x 2.29 cm
|
Weight |
0.230 kg
|
* Specifications subject to change by the manufacturer without notice
- Blackmagic Design ATEM Streaming Bridge for ATEM Mini Pro Streaming Switchers
- Universal Power Supply with International Adapters
