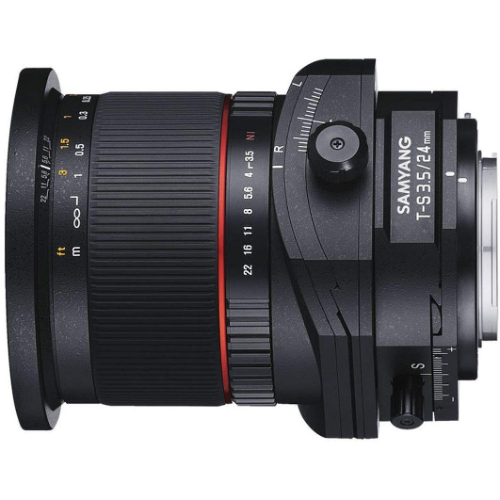

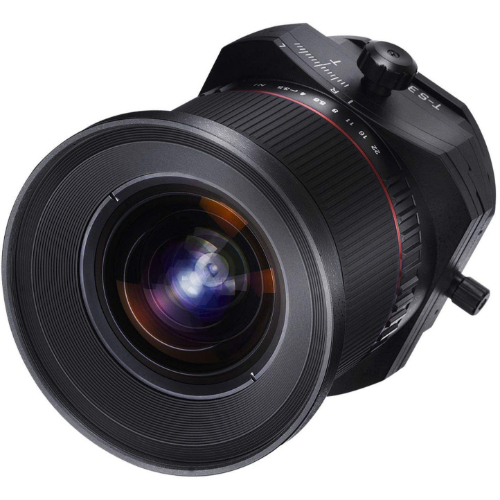

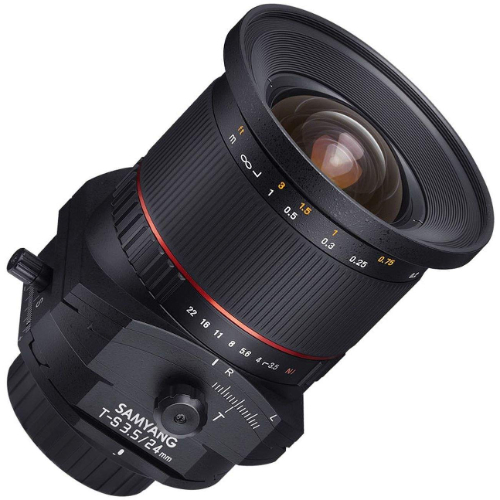

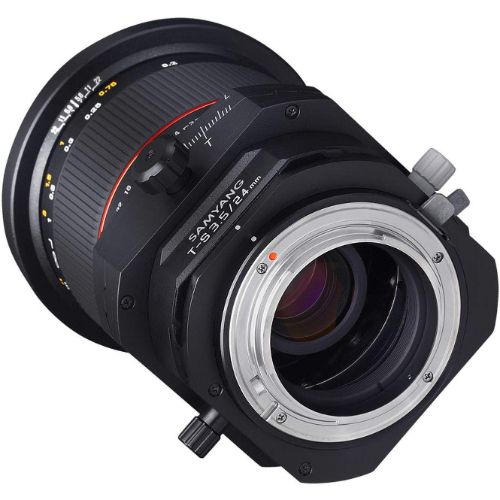

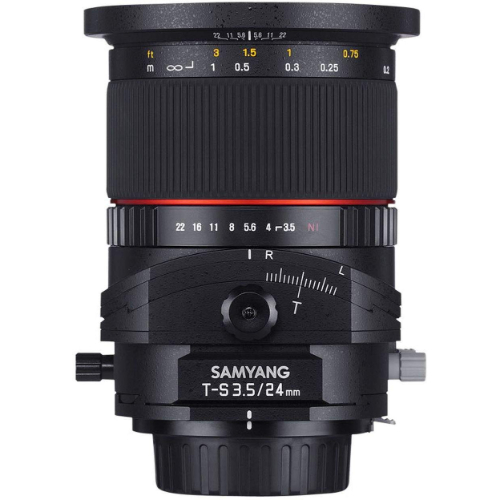

Master Precision with the Samyang T-S 24mm F3.5 ED AS UMC Lens

Embark on a journey of precision photography with the Samyang T-S 24mm F3.5 ED AS UMC lens. Crafted for full-frame cameras, this wide-angle wonder features built-in perspective control and tilt-shift functions, offering unparalleled versatility and control over your compositions. Whether you're capturing sweeping landscapes or architectural marvels, this lens empowers you to achieve flawless results with ease. Elevate your photography game with the Samyang T-S 24mm lens.

Its unique optical and mechanical construction makes it an ideal tool for architecture and landscape photography. The product is extremely useful to correct convergence of lines and perspective control. The optical tilt mechanisms enable precise control of depth of focus along with perspective control which can also be used for creative photography and perspective exaggeration, enabling photographers to shape the image according to their individual needs. Suitable for both digital and analogue film formats.

Optical design of the Samyang T-S 24mm F3.5 ED AS UMC comprises sixteen elements arranged in eleven groups, including two aspherical lenses and two Extra Dispersion (ED) lenses. These elements enable the lens to perfectly reproduce details and provide superior optical performance even when using the tilt and shift (T-S) functions.

Furthermore, each optical component has been covered with multi-layered, anti-reflective UMC coatings, which provide superb light transmission, high contrast and natural colours. With sophisticated optics and developed T-S function, the Samyang T-S 24mm F3.5 ED AS UMC is currently one of the most advanced lenses produced by Samyang Optics.

The Mount Rotation Lever enables as a combined unit the Tilt and Shift Sections to be rotated RIGHT up to 90° (with 30° adjustment). The Tilt Rotation Lever enables the Tilt section to independently rotate LEFT by 90° (with 30° adjustment). Filter size is 82mm.

Specifications Tilt/Shift Lens 24mm F3.5 ED AS UMC
Aperture Range F3.5 - 22
Optical Construction 16 Elements in 11 Groups (2 Ashperical Lens)
Minimum Focusing Distance 0.2 m
Filter Size Ø82mm
Maxmum Diameter Ø86mm
Mount Micro Four-Thirds
Angle Of View Four-Thirds 4/3": 47.1º
Length 13.4cm
Weight 0.730kg
Lens Rotation Maximum Tilt amount +8.5, Maximum Shift amount +12mm
Between Tilt and Shift Rotation 90º Left(click-stop for each 3" step)
Mount Rotation 90º Right (click-stop for each 30" step)


* Specifications subject to change by the manufacturer without notice.

  • Samyang 24mm f/3.5 Tilt & Shift ED AS UMC Lens for MFT

Manufacturer Warranty


This product comes with a

24 month Australian warranty

from Maxxum Pty Ltd Australia
