Miller 828 DS10 Alloy Tripod with 681 Pan Handle and Case
SKU code: 48960
- Compact, Lightweight, Dependable
- Consistent Fluid Drag Performance in Extreme Environments
- 2 Selectable Positions of Counterbalance
- Perfect for Camera Payloads to 2.5-5kg (5.5-11lbs)
- Integrated 75mm Bowl
- 1-stage Fast Toggle Adjustment Legs
- Durable Black Anodised Alloy Tubing
- Above Ground Spreader
For store pickup please contact us
You May Also Like
The Essentials:
Action Mounts:
Bags, Cases & Straps:
Tripods & Monopods:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Studio Lighting:
Storage:
Other:
Cost-Effective Support Option
The 828 DS10 Toggle LW tripod system is a solid and reliable support package, offering users a cost-effective support option with full broadcast performance.

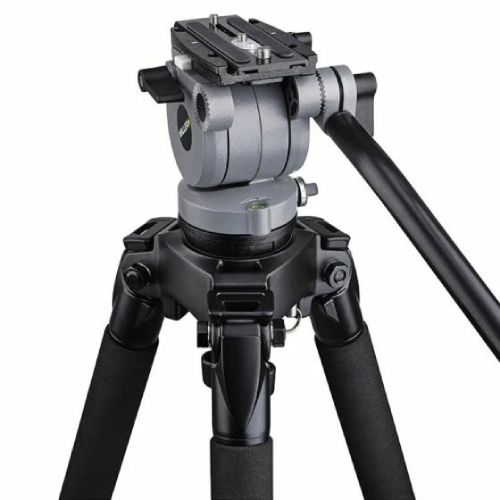

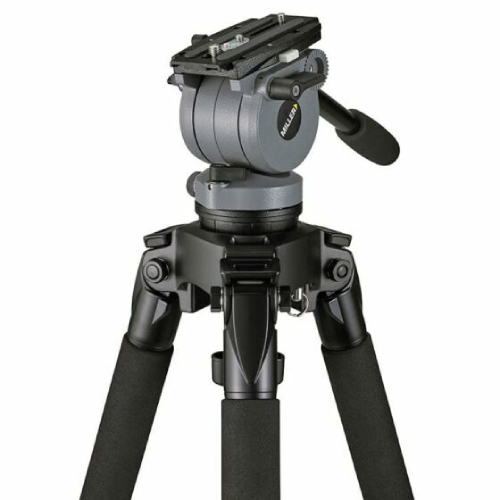

The DS10 fluid head has earned a reputation for providing professional fluid drag movement for camera operators working solo in the field.
DS10 fluid head is an all in one solution for payloads up to 5kg (11lbs).
Whether you are in the field or configured for production use, the dual position counterbalance plus 60mm camera plate travel enables quick and easy balancing in both standard and accessorised camera configurations.

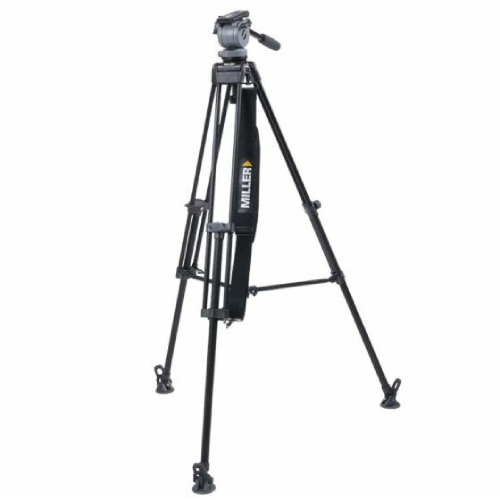

The DS10 is matched with the LW Toggle tripod (alloy) with above ground spreader, the positive Toggle locks mean quick set-ups while the rubber feet mean the system can be used over any terrain.
| DS10 TOGGLE LW 1 STAGE ALLOY | |
| Payload Range | 2.5-5.0kg (5.5-11.0lbs) |
| Weight | 5.0kg |
| Height Range | 757-1467mm (29.8-57.6") |
| Transport Length | 96.7cm |
| Counterbalance Positions | 2 selectable positions |
| Pan Tilt Drag | Adjustable fluid drag, temperature resistant |
| Pan Tilt Locks | Positive lock calliper brake system |
| Tilt Range | -40° to +65°C (-40° to +149°F) |
| Pan Range | 360° |
| Camera Platform | Sliding camera plate |
| Sliding Range | 60mm (2.4") |
| Mounting Base | Ø75mm (2.9") ball levelling |
| Height Above Bowl | 13.7cm |
| Pan Handle | Fixed length 390mm (15.4") |
| Temperature Range | -40° to +65°C (-40° to +149°F) |
| Leg Extension | 1-stage |
| Lock Type | Toggle |
| Leg Material | Alloy |
* Specifications subject to change by the manufacturer without notice
- DS10 Fluid Head(182)
- Toggle 75 1-stage Tripod (Alloy)(440)
- DS Tripod Spreader(835)
- Rubber Feet (Set of 3)(550)
- Pan Handle - Fixed with Clamp(681)
- Softcase 1-stage(3512)
- Shoulder Strap (Padded) (554)
