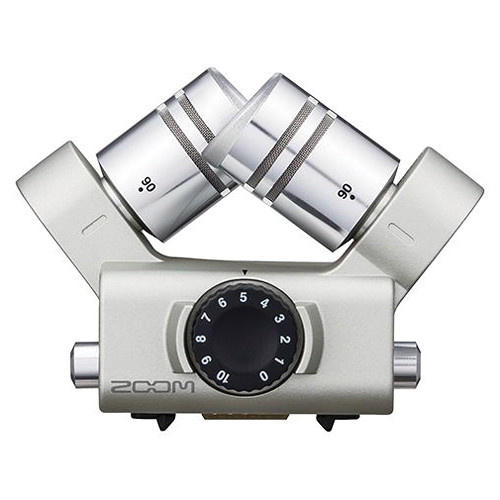

Zoom XYH-6 - X/Y Microphone Capsule for Zoom H5 and H6 Field Recorders

The Zoom XYH-6 is an X/Y Microphone Capsule designed for use with Zoom's H5 and H6 Field Recorders, featuring two matched unidirectional microphone elements arranged in an adjustable X/Y pattern with angles between 90 and 120 degrees. This configuration captures sound in a cardioid polar pattern, making it highly sensitive to sounds in front of the recorder while minimising noise from the sides and rear. The XY pattern enhances mono playback, creating a fuller sound than a single microphone element would. This capsule is perfect for a variety of applications, including studio recordings, live performances, rehearsals, and TV broadcasts.

Microphone Type
Unidirectional
Sensitivity
-41 dB, 1 kHz at 1 PA
Input Gain
-∞ to 46.5 dB
Max SPL Level
136 dB SPL

LINE INPUT

Connector
1/8" stereo mini jack
Input Level
-∞ to 46.5 dB
Input Impedance
2 kΩ
Plug-in power
2.5 V supported




* Specifications subject to change by the manufacturer without notice.
