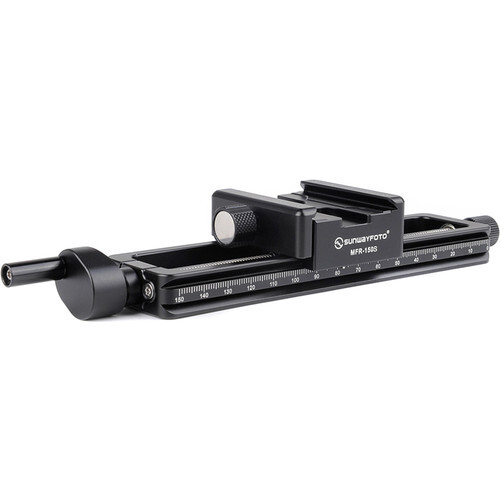

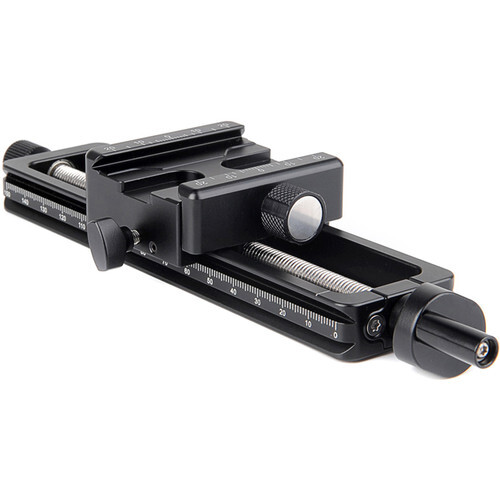

Sunwayfoto MFR-150S Overview

The Macro Focusing Rail with Screw-Knob Clamp from Sunwayfoto gives you the ability to accurately adjust your camera's fore-or-aft position when shooting macro photography. The clamp at the top is Arca-type compatible and is secured with a screw-knob. The focusing rail itself has a double-dovetail mount and is compatible with most Arca-type clamps available.

The Macro Focusing rail has both a ratchet handle, for fast and quick adjustments, and a thumb-screw knob along with engraved index marks on the side of the rail for fine adjustments. The CNC machined T6061 aluminium rail holds a maximum weight capacity of 15.4 lb, but may hold less weight once the angle of the rail is changed.

The Type III black anodized aluminium is scuff and scratch resistant and the finish is also resistant against corrosion. In addition, two focusing rails can be stacked for dual axis adjustments (fore-or-aft and lateral). Located on the bottom of the plate are two safety stop screws to prevent any accidental pulling or falling out of the rail when a clamp is partially open.

  • Arca-type compatible dovetail mount and screw-knob clamp
  • Thumb-screw knob for precise fore-or-aft adjustments
  • Ratchet handle for quick and fast adjustments
  • Type III black anodized aluminium, which is resistant against scratches, scuffs, and corrosion
  • CNC machined T6061 aluminium rail with two built-in safety stop screws and engraved index marks
Material of Construction CNC-machined T6061 aluminium
Finish Type III black anodized
Adjustment Range Lead screw: 10.6 cm
Total Adjustment Range: 22 cm
Stage Travel per Revolution: 0.05" (0.125 mm)
Thread Pitch 0.5 mm (12.5 mm)
Load Capacity 7 kg weight capacity varies with the angle of the load
Dimensions 21.6 x 5.3 x 3.3 cm
Weight 0.279 kg

*Specifications subject to change by the manufacturer without notice

  • Sunwayfoto Macro Focusing Rail with Screw-Knob Clamp
