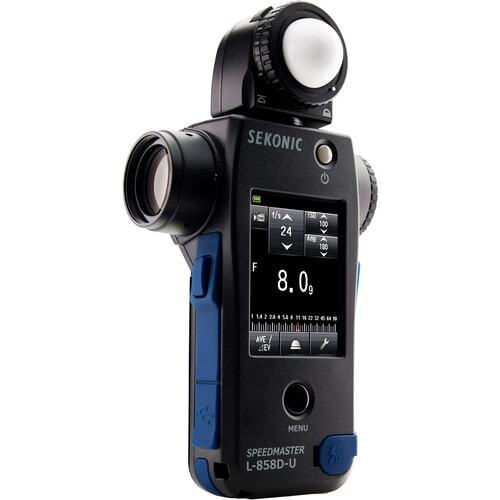

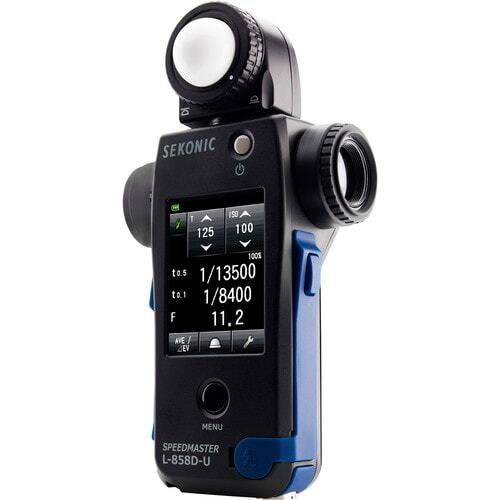

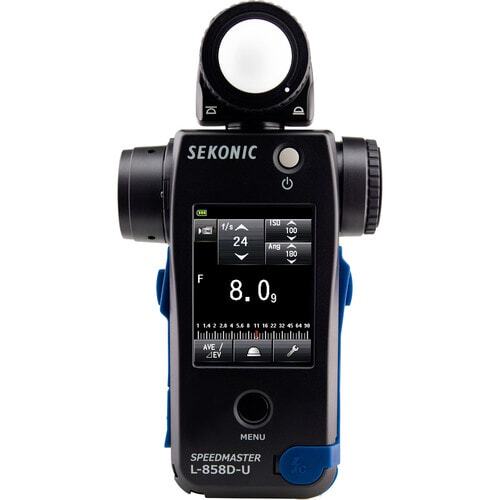

The Sekonic Speedmaster L-858D Light Meter provides detailed and accurate light readings in extreme lighting situations, allowing you to perfect your lighting set up for both photography and video. Support for High Speed Sync flash systems means you can determine the best settings to capture fast action without trails or blurs, while the low-light metering ability allows you to get accurate readings in conditions as dark as -5EV to match modern high-ISO cameras. Packed with other innovative features including a built-in spot meter, colour touch screen, and wireless triggering, it’s the perfect tool to streamline professional workflows.

Flash Duration Measurement

Freezing motion that is moving faster than the maximum shutter speed of your camera can be achieved by combining short flash durations with the fastest sync speed of your camera. The Speedmaster is the first meter that can measure the duration of your flash which varies depending on the make, model and individual power settings. This combined with the ability to measure from between t=0.9 to t=0.1 of the flash intensity creates incredibly accurate readings.

Compatible with High Speed Sync and HyperSync

The ability to read the stroboscopic pulses used during High Speed Sync (HSS) as well as the precise timing of HyperSync flash means you can predict the light of your scene when shooting with shutter speeds that are faster than your camera’s maximum sync speed. This gives you ultimate control over the brightness of your subject and the ambient light in the scene.

Outstanding Light Sensitivity

Well matched with the low-light capabilities of today’s cameras, the light meter boasts remarkable sensitivity for extremely accurate low light measurements. Coupled with an extended ISO and shutter speed range, the L858D provides you with precise light measurements with illuminance as low as 0.1 lux. This sensitivity allows you to determine the best settings for a candlelit scene or measure the light for a long-exposure shot.

Flash Analysis Function

Able to measure both ambient and flash lighting simultaneously, the Sekonic Light Meter makes it easy to work with mixed lighting by indicating the percentage of flash in the total exposure and what the camera settings would be at different ambient and flash light levels.

Exposure Profiling

Using an Sekonic Exposure Profile Target and a computer you can run a series of comprehensive tests to determine the light sensitivity characteristics and dynamic range of your camera sensor. This allows you to create an incredibly accurate exposure profile that can then be loaded onto the 858D for fine-tuned light meter and camera calibration.

Cinema Modes

Boasting a choice of cinema modes the HD Cine mode is designed specifically for DSLR style cameras and allows you to set the shutter speed, ISO and frame rate of your shot up to an ultra-fast 1000fps. The CINE mode is aimed at digital cinema and film cameras and provides the flexibility to select shutter angle instead of shutter speed.

Built-in Spot Meter

An integrated 1° spot meter provides fast accurate reflected light readings using a large, bright viewfinder that display full information and even features dioptre correct for accuracy. With a wide reading range of EV1-EV24.4, the spot meter allows you to take accurate readings of specific elements of your scene.

Colour Touch Screen

With a bright 2.7-inch colour LCD screen your meter readings are easily visible in a variety of lighting conditions, while the touchscreen function allows you to quickly change light meter modes easily.

Lumisphere Receptor Head

To measure incident light the L-858D has a collapsible Lumisphere receptor head that measures individuals light sources when retracted & a wide range of lighting when extended. The Lumisphere rotates up to 270° so you can ‘walk the set' to ensure consistent illumination even for large setups.

USB Port and All-Weather Design

A dust and splash proof construction means you can be confident when using the L 858D in demanding outdoor conditions. While a micro USB port allows for firmware upgrades and allows connectivity with Sekonic Data Transfer Software for custom settings and exposure profiling.

Wireless Triggering

The Sekonic L858D Speed Master Light Meter supports wireless flash triggering and remote control of flash power through radio transmitters (available separately). Interchangeable radio modules let you conveniently use the same module for various flash systems.

Type

Digital light meter for flash and ambient light

Light Receptor

Incident Light

Lumisphere convertible to flat diffuser (with retracted lumisphere)

Reflected Light

Built-in 1 degree spot metering

Measuring Mode

Ambient Light

T priority, F priority, TF priority, cine mode, HD CINE mode, Lux/FC or Cd/m2/FL mode

Flash Light

Multiple flash mode, Cordless/cord-in mode, HSS flash mode, Flash duration mode, Radio flash triggering mode

Measuring Range (ISO 100)

Ambient Light

Incident

-5 to 22.9

Reflected

-1 to 24.4

Illuminence

0.1 to 2,000,000 lx

0.01 to 180,000 fc

Luminence

0.1 to 980,000 Cd/m2

0.02 to 290,000 fl

Flash Light

Incident

F0.5 to F161.2 (=128.9)

Reflected

F1.0 to F161.2 (=128.9)

Display Range

ISO Sensitivity

Ambient & Flash Light

3 to 13,107,200 (plus 850)

Aperture

Ambient & Flash Light

F0.5 to 161.2 (=128.9)

Shutter Speed

Ambient Light

30m to 1/64,000s

Flash Light

30m to 1/16,000s

Flash Duration

Flash Light

1/40 to 1/20,000s (25ms to 50µs)

Frame Rate

Ambient Light

1 to 1,000 f/s plus other 20 settings (up to 99,999.999)

Shutter Angle

Ambient Light

1 to 358 degrees plus other 20 settings

Functions

Multiple cumulative

Yes(Unlimited)

Average

Yes

Shadow

No

High light

No

Zone System

No

Flash Analysing

Yes (in 10% step)

Memory

Yes (9 times) both incident and spot

Memory clear

Yes (individually)

Contrast Function

Yes (+/-9.9EV in 1/10 step)

Film memory (ISO 2)

No

Filter compensation

Yes (-12 to 12EV)

Filter factor number compensation

Yes (preset 24 types plus 6 settings)

External receptor jack

No

USB port

Yes

Battery check

Yes

Auto power off

Yes (selectable.)

Under/Over exposure display

Yes

Exposure Warning Indicator

Yes

Exposure compensation

Yes(-9.9 to +9.9)

Calibration compensation

Yes(-1.0 to +1.0)

Exposure Profile

Yes

Dip switch (L-358/608)

No

Custom settings

Yes (17 items)

Synchro terminal

Yes

LCD backlight

Yes

Water resistance

Yes

Switching incident/reflected

Yes (software)

Retractable lumisphere

Yes

Setting lock

Yes (Touch panel)

How to change setting

Touch panel operation

Dioptre adjustment

Yes (-1 to 2.5 D)

Tripod socket

Yes

LCD

2.7-inch colour dot matrix LCD

Operating Temperature

-10 to 50?

Storage Temperature

-20 to 60?

Power Source

1.5V x 2 (AA battery) and USB bus power

Weight

Approx. 300g

Dimensions (W x H x D)

93.9 x 176.3 x 49.4 mm excluding protrusions


* Specifications subject to change by the manufacturer without notice
  • Sekonic Speedmaster L-858D Light Meter
  • Lens cap
  • Soft case
  • Anti-glare sheet for LCD screen
  • Strap
  • Start-up Guide
