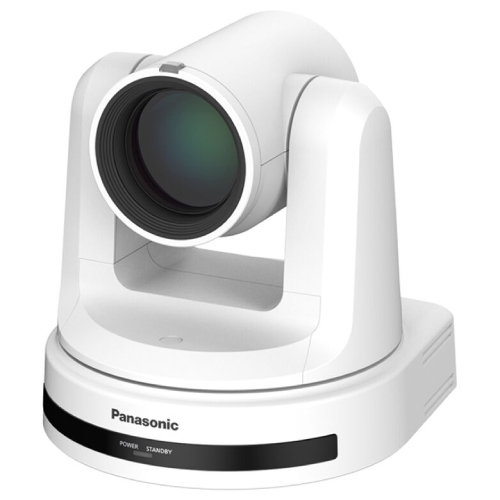

Panasonic AW-UE20 4K 3G-SDI/HDMI/IP/USB PTZ Camera - White
SKU code: 49658
Australian Owned, Online Since 2001
Local Contact Centre
Industry Experts, Knowledgeable Team
Australia Wide Delivery
From Beginner to Pro, Affordable Gear
Secure Payment Methods
Key Features:
- 1/2.8" HD MOS Sensor, 12x Optical Zoom
- Up to 4K30 HDMI/IP Streaming Output
- Up to 1080p 3G-SDI/USB Output
- ±170° Pan, -30 to 90° Tilt
- LAN, UVC, and Serial Control
- Mic/Line Stereo Audio Input
- PoE+ Compatible
You May Also Like
The Essentials:
Action Mounts:
Bags, Cases & Straps:
Tripods & Monopods:
Flashes & Lighting:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Audio Equipment:
Studio Lighting:
Cables & Connectivity:
Other:
High-Quality 4K30 Video Output and Recording
The Panasonic AW-UE20 3G-SDI/HDMI/IP/USB PTZ Camera with 12x Optical Zoom is perfect for conference rooms, houses of worship and education locations. It features a 1/2.8"" MOS sensor, 4K30 HDMI and IP streaming output, 1080p 3G-SDI output, USB webcam output, mic/line audio input, and serial control. When connected to the internet, you can control PTZ actions and monitor the surveillance area from a remote location via a web browser.
Equipped with a 3.9 to 46.8mm zoom lens and 12x optical zoom, this PTZ camera enables you to zoom in on activity in the monitoring area for a closer look. Other features include auto white balance, RS-232/RS-422 serial control, LAN control, UVC communication via USB, 170° panning range, -30 to 90° tilt range, H.265/H.264/MJPEG video compression, and RTSP/RTMP streaming. The camera also supports mic and line audio input, allowing you to capture and embed audio within the video signal. It is also PoE+ compatible, allowing you to power the unit using only the single LAN cable rather than adding additional power adapter cables.
Features
- The camera can be used as a webcam on a computer using USB and UVC communication
- Using an IP browser, the camera can be controlled from a remote location and IP video monitoring, and remote camera control can be performed from a computer or mobile terminal such as a smartphone or tablet, enabling easy operations
- The camera also supports audio input, embedding and encoding, and audio output to IP is also supported via H.264/H.265/MJPEG
- Compatible with existing FEC-40 wall mounts
IMAGING | |
Sensor Type | 1/2.8"-Type MOS Sensor |
Horizontal Resolution (TV Lines) | 1400 TV Lines |
Sensor Resolution | Effective: 8.46 Megapixel |
Focus Control | Autofocus |
Manual Focus | |
EXPOSURE CONTROL | |
Shutter Type | Electronic Rolling Shutter |
Shutter Speed | 1/16000 to 1 Second |
Gain | 0 to 42 dB |
Minimum Illumination | 0.4 Lux at 1/30 Shutter Speed |
White Balance | Presets: ATW, Auto |
LENS | |
Focal Length | 3.9 to 46.8mm |
Optical Zoom Ratio | 12x |
Max Digital Zoom | 4x |
Field of View | Horizontal: 71 to 6° |
Vertical: 43 to 3° | |
Diagonal: 79 to 7° | |
Maximum Aperture | f/1.6 to 2.8 |
VIDEO CAPTURE | |
External Recording Modes | 4:4:4 8-Bit via HDMI |
3840 x 2160 at 25/29.97 fps | |
1920 x 1080p at 25/29.97/50/59.94 fps | |
1920 x 1080i at 50/59.94 fps | |
1280 x 720 at 50/59.94 fps | |
SDI/BNC / USB | |
1920 x 1080p at 25/29.97/50/59.94 fps | |
1920 x 1080i at 50/59.94 fps | |
1280 x 720 at 50/59.94 fps | |
Audio Recording | 2-Channel 16-Bit 48 kHz AAC LC Audio |
Broadcast Output | NTSC/PAL |
IP Streaming | H.264, H.265, MJPEG, RTMP, RTMPS, RTP, RTSP, TCP, UDP |
3840 x 2160 at 5.00p, 10p, 14.99p, 25p, 29.97p | |
1920 x 1080 at 5.00p, 10p, 14.99p, 25p, 29.97p, 50p, 59.94p | |
1280 x 720 | |
640 x 360 | |
CONTROL | |
Move Speed | Pan: 0.1 to 100°/sec |
Tilt: 0.1 to 100°/sec | |
Movement Range | Pan: 340° (-170 to 170°) |
Tilt: 120° (-30 to 90°) | |
Supported Control Protocols | IP |
RS-232 | |
RS-422 | |
INTERFACE | |
Video I/O | 1 x BNC (3G-SDI) Output |
1 x HDMI Output | |
1 x USB-B 2.0 Output | |
1 x RJ45 (NDI) Output | |
Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Mic/Line Input |
Other I/O | 1 x RJ45 (LAN) Input |
1 x Mini-DIN 8-Pin (RS-232) Input | |
1 x Mini-DIN 8-Pin (RS-232) Output | |
1 x RJ45 (RS-422) Output | |
POWER | |
PoE Support | PoE+ 802.3at |
Power I/O | 1 x Barrel (10.8 to 13.2VDC) Input |
Power Consumption | Device: 1.3 A |
PoE: 0.4 A | |
ENVIRONMENTAL | |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 122°F / -20 to 50°C |
Operating Humidity | 20 to 90% |
GENERAL | |
OS Compatibility | Windows 10 to 11 (32/64-Bit) |
macOS 10.11 to 10.15 | |
*As of December, 2022: Check with manufacturer for the most up-to-date compatibility | |
Certifications | FCC Part 15 Class A |
*as per Manufacturer | |
Sound Level | NC55 (at Full Speed) |
Dimensions (W x H x D) | 16.51 x 17.62 x 17.61 cm |
Weight | 1.9 kg |
* Specifications subject to change by the manufacturer without notice
- Panasonic AW-UE20 4K 3G-SDI/HDMI/IP/USB PTZ Camera with 12x Optical Zoom (White)
- Power Adapter
Manufacturer Warranty
This product comes with a
12 month Australian warranty
from Panasonic Australia
