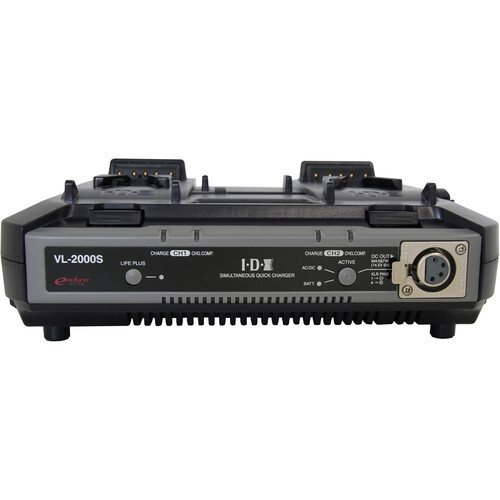

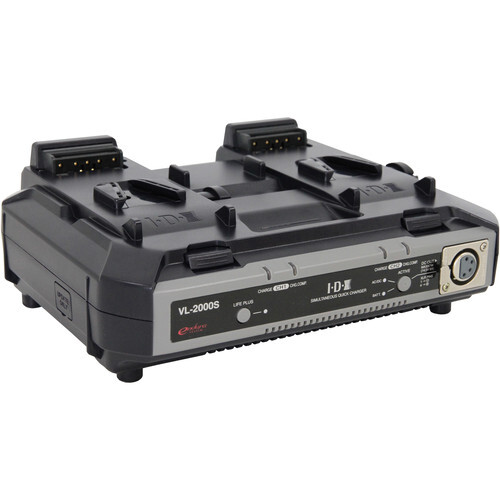

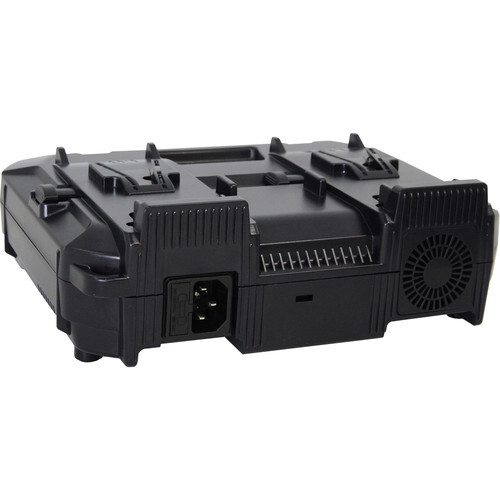

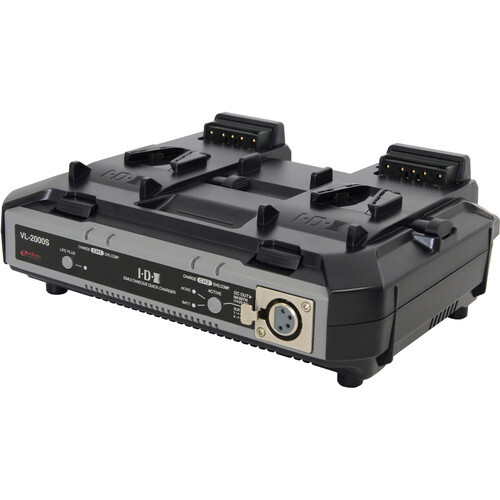

IDX System Technology VL-2000S Overview

The VL-2000S Quick Charger from IDX is a powerful 2-channel V-Mount battery charger with a 14.5V, 6.7A 4-pin XLR output. It has a Power Base mode that allows you to use mounted batteries to power your equipment via the XLR output port. Plus, the LIFE PLUS mode uses advanced technology to extend battery life up to 20%, and the Recovery Charge mode safely charges low-voltage batteries.

Power Base Mode

Power cameras and components using the 14.5V, 6.7A 4-pin XLR output port

IDX Battery Charging Times

E-HL9

1 x Battery- 130 minutes

2 x Batteries- 145 minutes

CUE-D75

1 x Battery- 140 minutes

2 x Batteries- 140 minutes

E-HL10DS

1 x Battery- 145 minutes

2 x Batteries- 160 minutes

CUE-D95

1 x Battery- 145 minutes

2 x Batteries- 160 minutes

DUO-C95

1 x Battery- 145 minutes

2 x Batteries- 160 minutes

ELITE

1 x Battery- 185 minutes

2 x Batteries- 225 minutes

CUE-D150

1 x Battery- 195 minutes

2 x Batteries- 235 minutes

DUO-150

1 x Battery- 195 minutes

2 x Batteries- 235 minutes

DUO-C190

1 x Battery- 250 minutes

2 x Batteries- 290 minutes

IDX SYSTEM TECHNOLOGY VL-2000S

Mount / Series Type V-Mount
Number of Battery Bays 2
Output XLR 4-Pin Female

ELECTRICAL

AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Output V-Mount: 16.4 to 16.8 VDC at 6 A
4-Pin XLR Female: 14.5 VDC at 6.7 A
Multi-Bay Charging Modes Dynamic Power Management, Simultaneous
Chemistry Lithium-Ion
Maximum Wattage 100 W

ENVIRONMENTAL

Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 20 to 90%

GENERAL

Indicator LED
Dimensions 23.1 x 18.2 x 8.2 cm
Weight 1.24 kg

* Specifications subject to change by the manufacturer without notice
