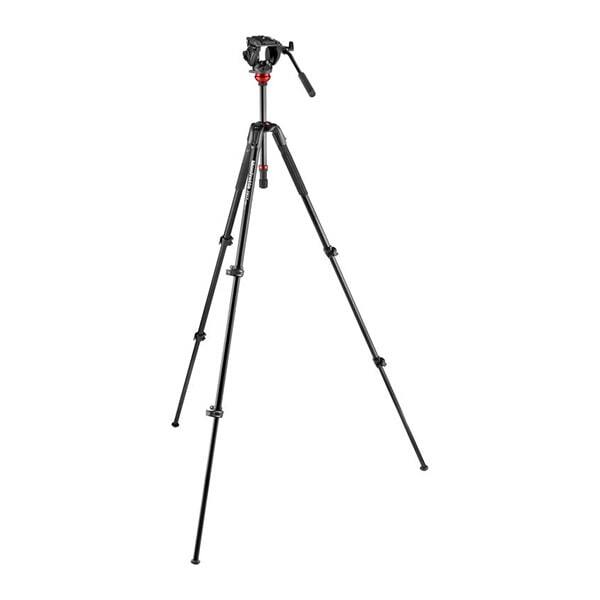

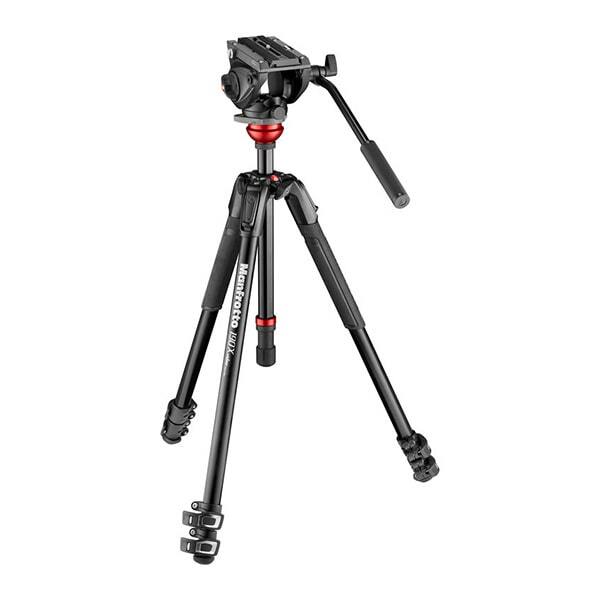

The Manfrotto 190XV is a 3-section tripod with QPL leg locks and an ultra-smooth MVH00AH fluid head that makes capturing video pans and tilts super easy. The built-in easy link allows you to add magic arms to hold monitors, lighting or other accessories, while a levelling ball provides a solution to setup your shot quicklu.

Long 500PLONG Sliding Plate

The head comes with a sliding plate that clicks into place from above, saving you time for a quicker setup. The long design plate can be mounted further forward or backward helping you to balance your rig perfectly. It includes both 1/4-inch and 3/8-inch screws that make it compatible with virtually everything from cinema to compact cameras.

MVH500AH Fluid Head

Capture professional looking camera shots, by taking advantage of the fixed fluid drag system on the MVH500AH which, combined with the long pan bar helps you capture smooths pan and tilt movements. The head has a flat base so it is compatible with tripods but can also be removed and mounted on sliders or jibs.

Centre Column with Levelling Ball

The 190XV legs are topped with a centre column that has a levelling ball so you can quickly setup and change your framing. It also includes a Bubble spirt level to helps ensure you can keep the legs as flat as possible.

Built-in Easy Link

An integrated easy link at the top of the tripod legs supports Manfrotto magic arm accessories and allows you to directly mount monitors, lights and other accessories to your rig.

3-Section Aluminium Legs

Each leg has three sections, which allows the tripod to achieve the perfect balance between height, portability and reliability. It reaches the impressive height of 173.3 cm when fully extended and packs down as small as 50.3cm for transport.

Flick Lever Power Locks

Designed for a faster setup, the tripod has Quick Power Lock (QPL) levers that allow you to release the legs with the flick of the wrist. This allows you to setup and pack up in a matter of seconds so you can spend more time of your composition and less time fumbling around with your tripod.

Maximum 5kg Payload

The Manfrotto 190 XV with MVH500AH Fluid Drag Head supports a maximum payload of 5kg, making it ideal for everything from DSLR to bigger cinema cameras. It is an incredibly versatile tripod solution jam packed with features that make filming and photography easier than ever.
  • 5kg Payload Capacity
  • 173cm Maximum Height
  • 50cm Folded Length
  • Fluid Drag Video Head with Pan & Tilt Control
  • Sliding Plate for Balance
  • Levelling Ball and Bubble Spirit Level
  • Lightweight 3-Section Aluminium Construction
  • Quick Power Lock Levers

Weight

3200 g

Material

Aluminium

Safety Payload Weight

5 kg

Min Height

50.3 cm

Maximum Height

173.3 cm

Head Type

Video/Fluid Head

Leg Sections

3

Quick Release

Yes

Counterbalance Weight

2.4 kg

Closed Length

72.2 cm

Ball Flat

Flat

Accessory Compatibility

500HLV

Top Attachment

1/4-inch screw, 3/8-inch screw

Base Diameter

60 mm

Powered by (batteries)

0

Bubble Spirit Level (No.)

1

Certifications

None

Colour

Black

Easy Link

Yes

Front Tilt

-70° / +90°

Leg Type

Single

Leg Angles

25°,46°,66°,88°

Leg Lock Type

Flip Lock

Maximum Height (with Centre Column Down)

149.3 cm

Maximum Working Temperature

60

Minimum Working Temperature

-20

Pan Bar Included

Yes

Pan Drag

fluid cartridge with fixed drag

Panoramic Rotation

360

Plate Type

500PLONG

Tilt Drag

fluid cartridge with fixed drag

Upper Disc Diameter

60 mm


* Specifications subject to change by the manufacturer without notice
  • Manfrotto 190XV Tripod
  • MVH500AH Fluid Head
