Manfrotto MHXPRO Tripod System Overview

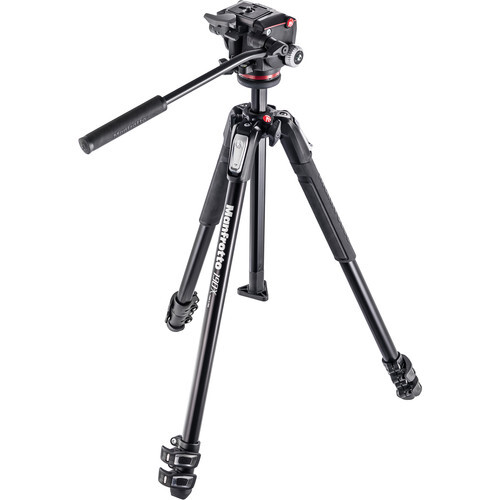

The Manfrotto 190X3 Three-Section Tripod with MHXPRO-2W Fluid Head is ideal for still photographers, videographers, and even birdwatchers looking for professional features in a compact package. The included head can hold up to eight pounds of camera and accessories and has two fluid drag settings to smooth out your tilts. The head tilts from straight down to almost straight up in a single continuous movement, and the quick-release camera plate allows you to quickly remove your camera from the head when you need to move quickly.

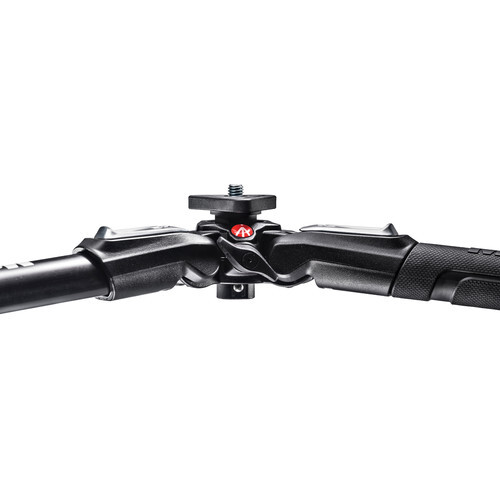

Two tilt drag settings allow you to adjust the head to match the needs of the shot, and the fixed pan settings provides you resistance for slow smooth pans. The aluminium legs feature a 25.4 cm triangular-shaped centre column that adds height while maintaining torsional stability. The spreaderless design and independent leg height adjustment allow you to use the legs on uneven surfaces without suffering from the wobble that ground-level spreaders can cause. Four preset locking positions allow you to lower the legs to approx. 19.05 cm high or nearly to the ground with the optional ground-level adapter.

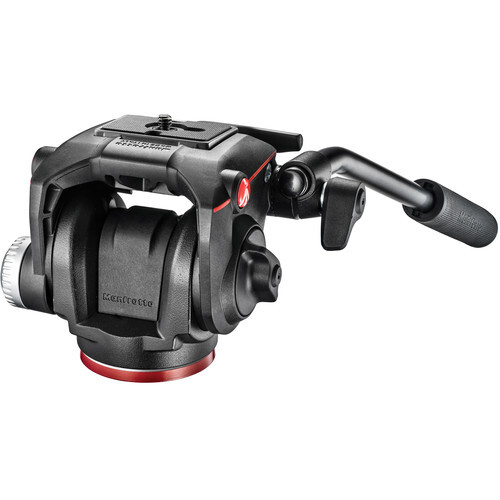

Head

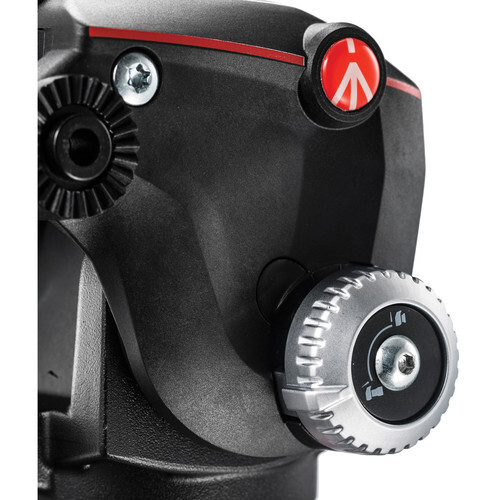

The fixed pan drag, and two settings for tilt drag allow you to tune the head to provide smooth moves when used used with optional cameras and accessories that weight less than 4.98 kg.

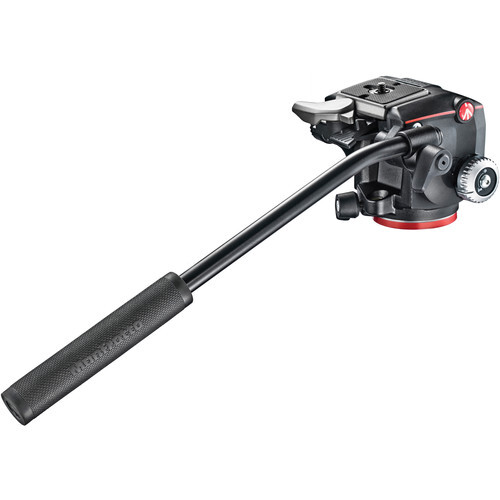

Dual panhandle rosettes allow you to mount the included panhandle on either side of the fluid head.

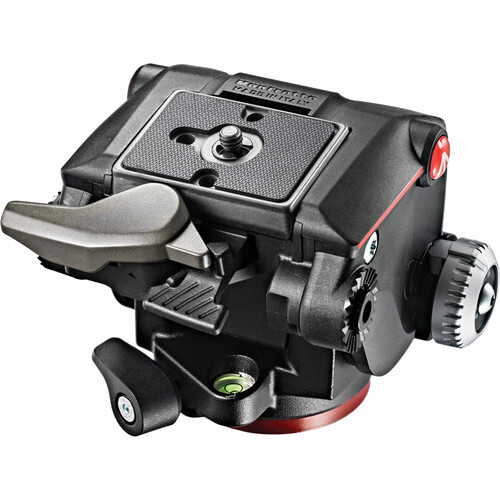

The included quick-release plate mounts on the head, and the quick release mechanism features a safety release mechanism that helps keep your gear secure.

Legs

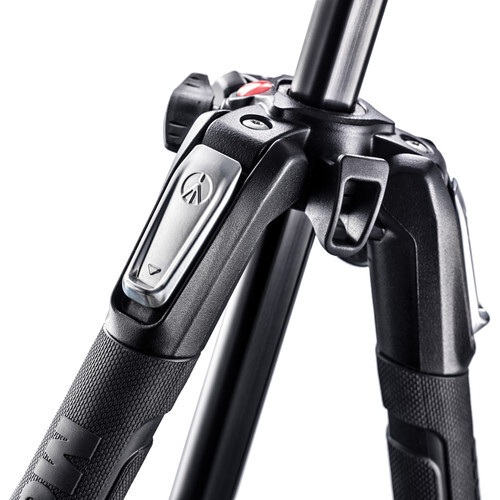

Quick Power Lock leg clamps allow single hand operation, while securely locking the legs against slipping.

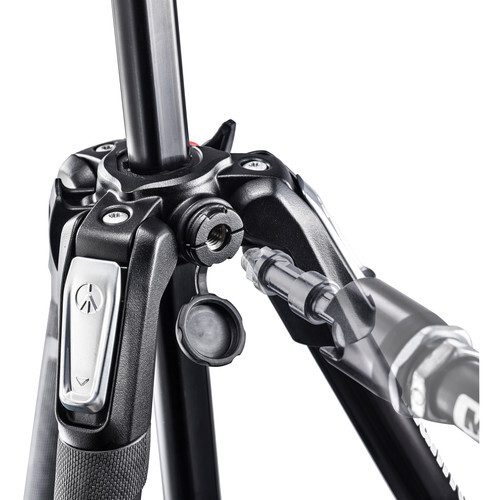

Manfrotto/s Easy Link port is a 3/8"-16 that is built into the top casting, and allows you to easily attach optional accessories to your legs.

MANFROTTO MHXPRO TRIPOD SYSTEM SPECS
SYSTEM
Load Capacity 5 kg
Height Max Height
170 cm (with center column extended)
148 cm (with center column retracted)
Min Height
19 cm
Folded
69 cm
Weight 2.7 kg
HEAD
Load Capacity 5.5 cm center of gravity: 4 kg
Material AdaptoTechnopolymer, aluminum
Quick Release Yes, 200PL
Camera Mount Thread Size 1/4"-20
Tripod Mount Thread Size 3/8"-16
Tilt Range -60 to 90°
Bubble Level Yes
Fluid Drag Tilt: 2 steps, variable
  Pan: fixed
Independent Pan Lock Yes
Independent Tilt Lock Yes
Height 10 cm
Weight 0.76 kg
TRIPOD LEGS
Material of Construction Aluminum
Load Capacity 7 kg
Height Max Height
160 cm (with center column extended)
135 cm (with center column retracted)
Min Height
9 cm
Folded
59 cm
Weight 2 kg


* Specifications subject to change by the manufacturer without notice

Manfrotto 190X3 Three Section Tripod with MHXPRO-2W Fluid Head

Manfrotto MHXPRO 2-Way, Pan-and-Tilt Head with 200PL-14 Quick Release

  • Panhandle
  • Tripod Legs

Manufacturer Warranty


This product comes with a

12month Australian warranty

from Manfrotto Australia
