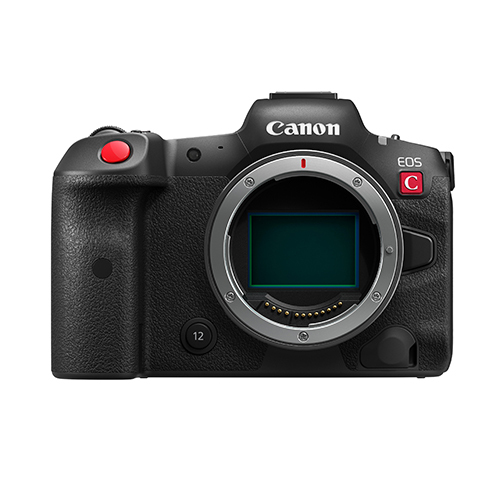

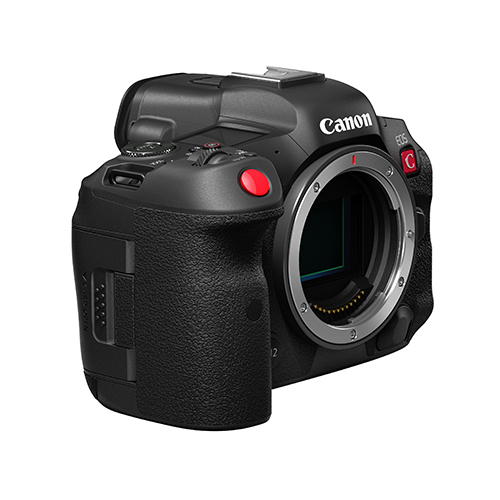

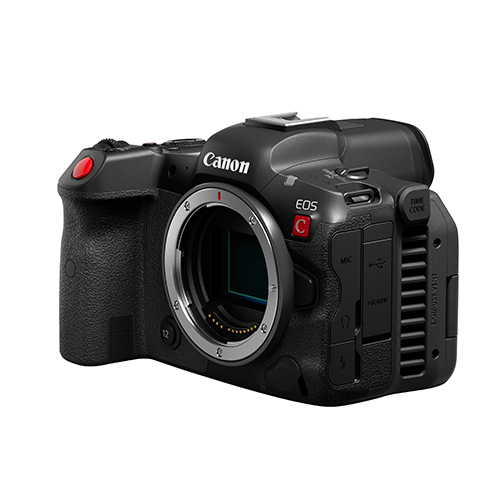

Uniting Professional Video and Still Photography

The Canon EOS R5 C is a real hybrid camera that brings together the professional video functions of the Canon Cinema EOS series with the still photography capabilities of the EOS R5. It features an 8K sensor and DIGIC X processing, as well as Canon's high-resolution, high-speed CMOS sensor, which was introduced in the EOS R5 and refined for the EOS R5 C. With the combination of RF mount lenses, the DIGIC X image engine and the 45MP sensor, the Canon R5 C can capture 8K/60p video, as well as high-speed continuous shooting at 20fps and other features.

Expanded Interface & Design for Professional Video

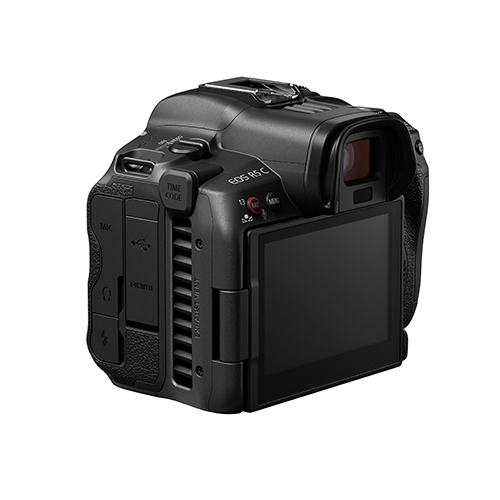

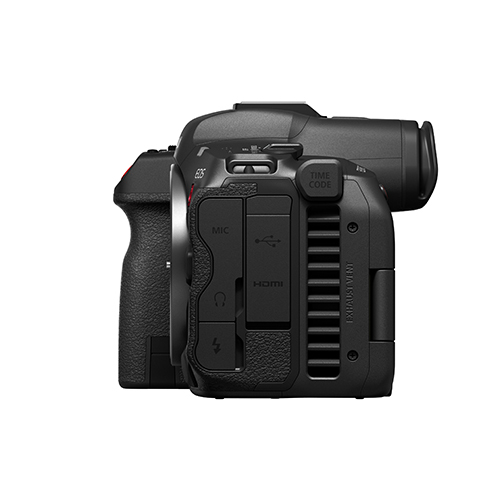

A Timecode terminal is now included for multi-camera filming, and the multi-accessory shoe now accepts professional audio input. A cooling system has been integrated within the R5 C body that allows for uninterrupted shooting of high definition 8K/4K videos.

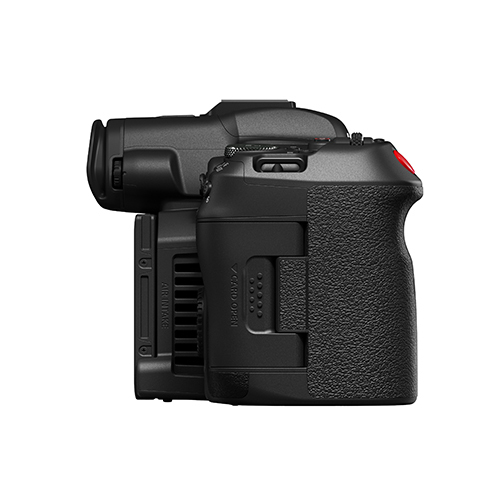

Internal Cooling Fan for Extended Recording

The Canon EOS R5 C uses a newly improved heat dissipation design with a built-in cooling fan system to keep internal temperature and airflow separate from the main board from increasing. Long hours of nonstop filming in high-quality 8K/60p video are possible thanks to a significant enhancement in the thermal design.

Supports 8k/60p* Internal Raw Recording

When externally powered via the DR-E6C coupler and CA-946 AC adapter or the PD-E1 USB power adapter, the EOS R5 C supports high-quality 8K/60p recording. Besides, the Cinema Light RAW format's high-efficiency mode allows for an 8K/60p internal card recorder without the use of an external recorder. With 16 times the resolution of Full HD video, 8K provides exceptional definition and realism, enabling new levels of visual expression and workflow flexibility, such as 4K cropping from 8K recording. The EOS R5 C can also capture 8K video in MP4 format, which is extremely versatile. While filming 8K, a lighter proxy video can be captured.

High-quality 4K Video

The Canon R5 C feature High Frame Rate (HFR) video capability allowing a maximum 120P at 4K resolution (4096x2160/3840x2160) without cropping the angle of view. The user is able to shoot 4:2:2 10-bit sampling while shooting in HFR. AF is also available when shooting in HFR as well as audio on a separate file from the video. Besides, through oversampling during 4K/2K video recording, the EOS R5 C can readout signals for all effective pixels from its full-frame 8K sensor, enabling 4:2:2 10-bit high-definition recording.

Variety of Recording Formats

The EOS R5C offers MXF-based XF-AVC, which corresponds to broadcasting standards, and highly adaptable MP4 in addition to Cinema RAW Light, which provides light data sizes for RAW recording. In addition, depending on the workflow needs, simultaneous recording options in various file formats, resolutions, and colour samples can be allocated.

High Performance, High Precision Focusing

The revolutionary UI employs Dual Pixel CMOS AF phase-difference detection AF technology, which also informs the user whether the focus point is in the front or back. Touch focus can operate high-speed continuous AF in around 80% of the screen's vertical and horizontal region. Eye AF recognises and tracks the human eye, allowing you to keep shooting while keeping precise focus.

Autofocus that adapts to the movement of the subjects is possible thanks to several AF modes. Even while photographing sports or other fast-moving scenarios, head detection can be used to focus on the back of a person's head, closely tracking the subject.

Communication Functions

Content Transfer Mobile App: Proxy camera files (video/audio) and News Metadata can now be transferred quickly from compatible mobile phones, making workflows quicker and more efficient.

New Browser Remote: The wireless control capability has been optimised for single-operator shooting, and the smartphone and tablet layouts have been improved.

Multi-Function Shoe: Audio can be transmitted as a digital signal when used with an optional XLR adapter and digital MIC.


IMAGING

Lens Mount Canon RF
Lens Communication Yes, with Autofocus Support
Sensor Resolution Actual: 47.1 Megapixel
Effective: 45 Megapixel (8192 x 5464)
Image Sensor 36 x 24 mm (Full-Frame) CMOS
Pixel Pitch 5.5 µm
Image Stabilization Digital
Capture Type Stills & Video

EXPOSURE CONTROL

Shutter Type Electronic Shutter, Mechanical Focal Plane Shutter
Shutter Speed Mechanical Shutter
1/8000 to 30 Seconds
Electronic Front Curtain Shutter
1/8000 to 30 Seconds
Electronic Shutter
1/8000 to 0.5 Seconds
Bulb/Time Mode Bulb Mode
ISO Sensitivity Photo
100 to 51,200 in Manual Mode (Extended: 50 to 102,400)
100 to 12,800 in Auto Mode (Extended: 100 to 51,200)
Video
100 to 51,200 (Extended: 50 to 102,400)
Metering Method Center-Weighted Average, Evaluative, Partial, Spot
Exposure Modes Aperture Priority, Manual, Program, Shutter Priority
Exposure Compensation -3 to +3 EV (1/3, 1/2 EV Steps)
Metering Range -3 to 20 EV
White Balance 0 to 0K
Presets: Auto, Cloudy, Colour Temperature, Custom, Daylight, Flash, Fluorescent (White), Tungsten
Continuous Shooting Mechanical Shutter
Up to 12 fps at 45 MP for up to 180 Frames (Raw) / 350 Frames (JPEG)
Electronic Shutter
Up to 20 fps at 45 MP for up to 83 Frames (Raw) / 170 Frames (JPEG)
Interval Recording Yes
Self-Timer 2/10-Second Delay

VIDEO CAPTURE

Internal Recording Modes Raw 12-Bit
DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps [2600 Mb/s]
AVC-Intra/AVC-LongG/XF-AVC 4:2:2 10-Bit
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/59.94/100/120 fps [160 to 810 Mb/s]
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100/120 fps [160 to 810 Mb/s]
1920 x 1080p at 23.98/25/29.97/50/59.94/120 fps [50 to 310 Mb/s]
1280 x 720 at 50/59.94 fps [8 to 12 Mb/s]
AVC-LongG/MP4 4:2:2 10-Bit
DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps [400 to 540 Mb/s]
UHD 8K (7680 x 4320) at 23.98/25/29.97 fps [400 to 540 Mb/s]
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/100/120 fps [100 to 225 Mb/s]
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/120 fps [100 to 225 Mb/s]
DCI 2K (2048 x 1080) at 23.98/24.00/25/29.97/50/59.94 fps [35 to 50 Mb/s]
1920 x 1080p at 23.98/25/29.97/50/59.94 fps [35 to 50 Mb/s]
1280 x 720 at 50/59.94 fps [8 to 12 Mb/s]
AVC-LongG/MP4 4:2:0 8-Bit
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/120 fps [100 to 225 Mb/s]
UHD 4K (3840 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps [100 to 225 Mb/s]
DCI 2K (2048 x 1080) at 23.98/24.00/25/29.97/50/59.94 fps [35 to 50 Mb/s]
1920 x 1080p at 23.98/24.00/29.97/50/59.94 fps [35 to 50 Mb/s]
1280 x 720 at 50/59.94 fps [8 to 12 Mb/s]
Raw/Cinema RAW Light
8192 x 5464 at 23.98/24.00/25/29.97/50/59.94 fps [1030 to 2570 Mb/s]
5952 x 3140 at 23.98/24.00/29.97/50/59.94 fps [544 to 1360 Mb/s]
2976 x 1570 at 23.98/24.00/25/29.97/50/59.94 fps [138 to 344 Mb/s]
External Recording Modes 4:2:2 10-Bit via HDMI
DCI 4K (4096 x 2160) up to 59.94 fps
UHD 4K (3840 x 2160) up to 59.94 fps
Sensor Crop Modes Super35 / APS-C
5952 x 3184
4096 x 2160
3840 x 2160
Super16
2976 x 1570
Gamma Curve Canon Log 3, HDR-HLG, HDR-PQ, Rec709, Rec2020
Broadcast Output NTSC/PAL

STILL IMAGE CAPTURE

Image Sizes 3:2 JPEG / Raw
8192 x 5464
5088 x 3392
3:2 JPEG / Raw
8192 x 5464
5808 x 3872
4176 x 2784
2400 x 1600
4:3 JPEG / Raw
7280 x 5464
5152 x 3872
3715 x 2784
2112 x 1600
16:9 JPEG / Raw
8192 x 4608
5808 x 3264
4176 x 2344
2400 x 1344
1:1 JPEG / Raw
5456 x 5456
3872 x 3872
2784 x 2784
1600 x 1600
Aspect Ratio 1:1, 3:2, 4:3, 16:9
Image File Format C-RAW, HEIF, JPEG, Raw
Bit Depth 14-Bit

INTERFACE

Media/Memory Card Slot Slot 1: CFexpress Type B
Slot 2: SD/SDHC/SDXC (UHS-II)
Video I/O 1 x Micro-HDMI Output
Audio I/O 1 x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
1 x 1/8" / 3.5 mm TRS Stereo Headphone Output
Power I/O 1 x USB-C (9VDC at 3 A) Input
Other I/O 1 x USB-C (USB 3.2 / 3.1 Gen 2) (Shared with Power Input)
Wireless Bluetooth Control
2.4 / 5 GHz Wi-Fi (802.11b/g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) Video Output, Control

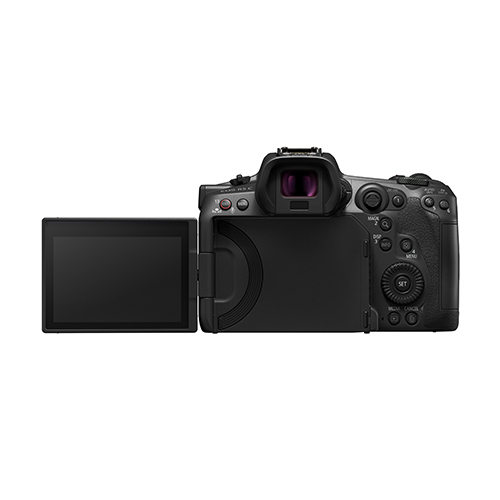

MONITOR

Size 3.2"
Resolution 2,100,000 Dot
Display Type Free-Angle Tilting Touchscreen LCD

VIEWFINDER

Type Built-In Electronic (OLED)
Size 0.5"
Resolution 5,790,000 Dot
Eye Point 23 mm
Coverage 100%
Magnification Approx. 0.76x
Diopter Adjustment -4 to +2

FOCUS

Focus Type Auto and Manual Focus
Focus Mode Continuous-Servo AF, Manual Focus, Single-Servo AF
Autofocus Points Phase Detection: 1053
Autofocus Sensitivity -6 to +20 EV
Maximum Sync Speed 1/250 Second
Flash Compensation -3 to +3 EV (1/3, 1/2 EV Steps)
Dedicated Flash System eTTL
External Flash Connection Hot Shoe

ENVIRONMENTAL

Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 0 to 85%

GENERAL

Battery Type Canon LP-E6N

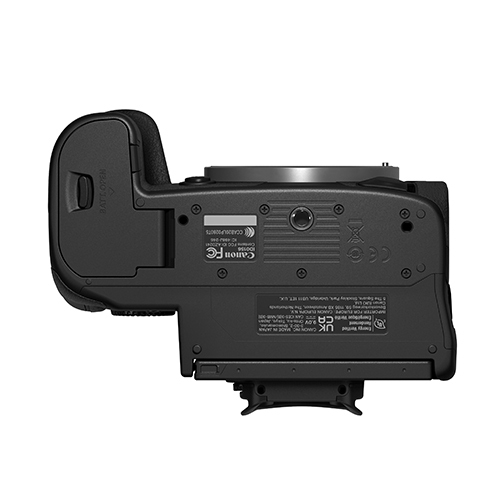

Tripod Mounting Thread 1 x 1/4"-20 Female (Bottom)
Accessory Mount 1 x Intelligent Hot Shoe
Dimensions (W x H x D) 14.22 x 10.16 x 11.18 cm
Weight 0.680 Kg (Body Only)
0.770 Kg (With Battery, Recording Media)

* Specifications subject to change by the manufacturer without notice

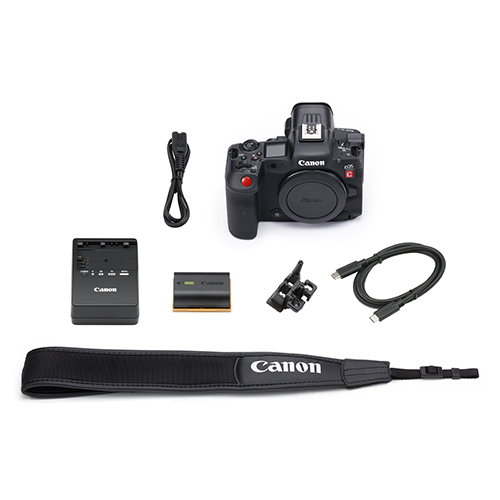

  • Canon EOS R5 C Mirrorless Camera Body
  • Canon LP-E6NH Lithium-Ion Battery
  • Canon LC-E6 Charger
  • Canon RF-5 Body Cap
  • Camera Strap
  • Canon IFC-100U Interface Cable
  • Cable Protector
