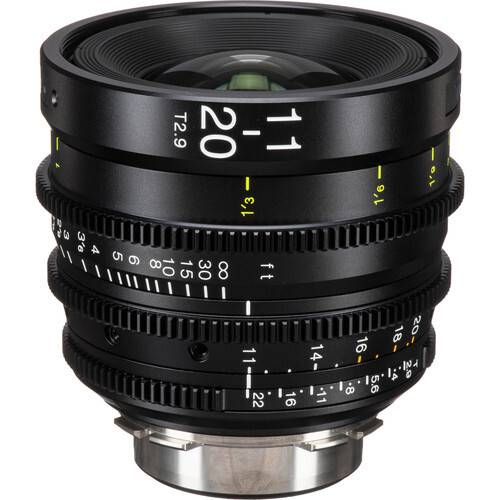

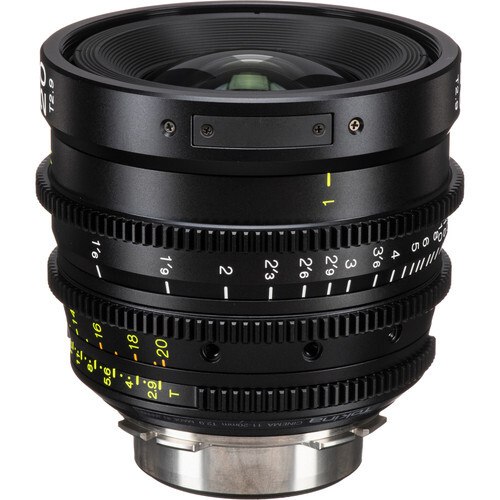

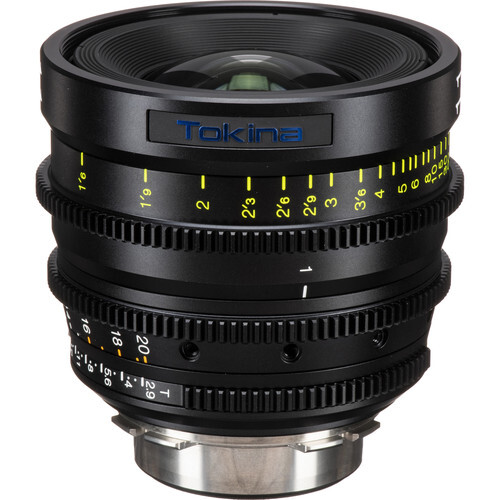

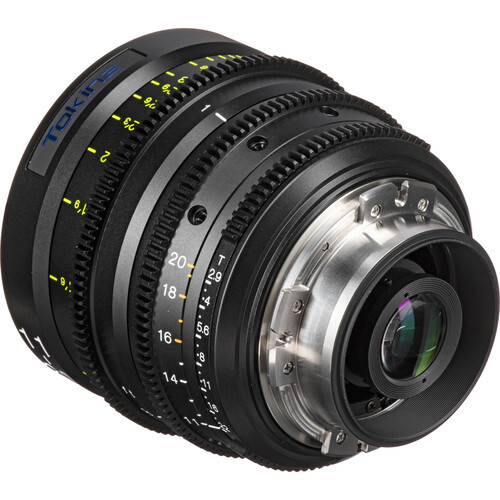

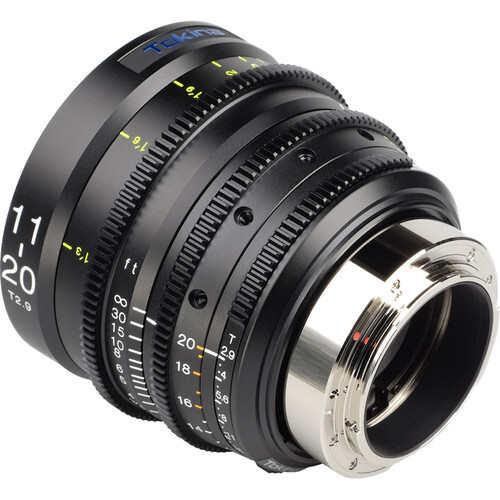

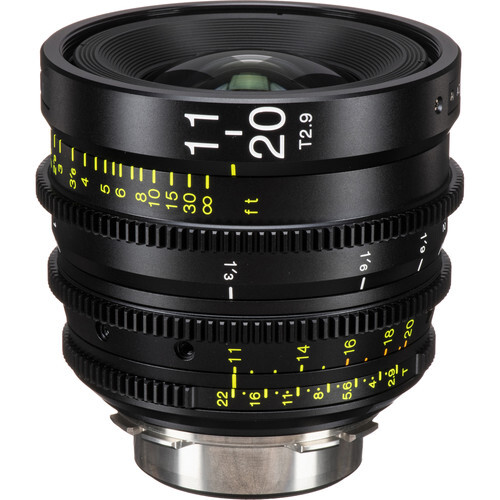

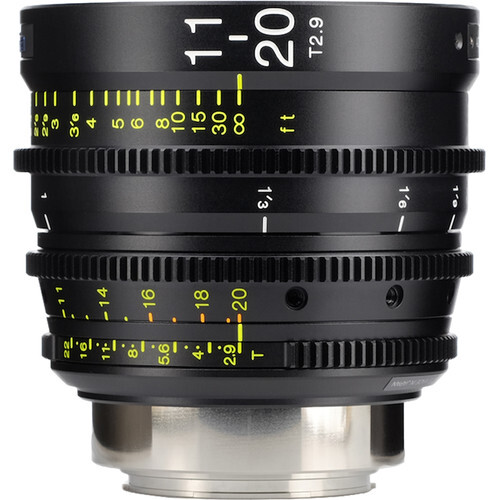

Tokina Cinema ATX 11-20mm T2.9 Overview

The Tokina Cinema ATX 11-20mm T2.9 Wide-Angle Zoom Lens (EF Mount) offers an impressive super-wide field of view and cine-style design elements. It's designed to cover Super 35mm image sensors and is a parfocal lens, meaning it holds focus throughout zoom moves. The lens maintains a constant T2.9 aperture throughout its zoom range, so you don't need to worry about exposure compensation when zooming in. It also has a durable metal housing to withstand the rigours of cine production, plus 0.8 Mod lens gears for compatibility with FIZ (focus/iris/zoom) control systems.

Interchangeable LPL, PL, Sony E, MFT, and Nikon F lens mounts are available separately for swapping with the EF mount, expanding the lens's compatibility with additional cameras. The Tokina Cinema ATX 11-20mm incorporates low-distortion glass, and its 9-bladed iris produces attractive bokeh in out-of-focus areas. Focus (feet), iris, and zoom settings are marked on both sides of the lens barrel.

Additional cine features include a minimum focus distance of 12", 300° of focus rotation, and an industry-standard 95mm front diameter compatible with most pro-style matte boxes. An 86mm front thread provides a second filtration option especially useful for low-profile or lightweight rig configurations.

  • Compact, wide-angle T2.9 zoom lens covers Super 35mm sensors
  • EF mount is interchangeable with separately available PL, LPL, MFT, Nikon F, and Sony E mounts
  • Cine-style 0.8 Mod lens gears are designed for use with FIZ (focus, iris, zoom) systems
  • A constant T2.9 aperture is maintained throughout the zoom range
  • Low distortion glass
  • 9-bladed iris for precise exposure control and attractive bokeh
  • 12" minimum focus distance enables wide but close shots
  • Parfocal lens design maintains focus while zooming
  • The 95mm front diameter fits most pro-style matte boxes and adapters
  • The all-metal, cine-style housing includes a front 86mm filter thread
  • Focus (feet), iris, and zoom marks are on both sides of the lens barrel
Focal Length 11 to 20mm
Lens Mount Canon EF
Lens Format Coverage Super35/APS-C
Image Circle 30.0 mm
Maximum Aperture T2.9
f/2.8
Minimum Aperture T22
f/22
Minimum Focus Distance From : 1.0' / 0.3 m
Optical Design 14 Elements in 12 Groups
Diaphragm Blades 9
Gear MOD & Pitch Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Zoom: 0.8 MOD / 32 Pitch
Front Diameter 95 mm
Filter Thread 86 mm
Focus Scales Imperial
Focus Rotation 300°
Zoom Ratio 1.82x
Maximum Magnification Ratio 0.048668981
Length 9.95 cm
Weight 1.1 kg


* Specifications subject to change by the manufacturer without notice

  • Tokina Cinema ATX 11-20mm T2.9 Wide-Angle Zoom Lens for EF Mount
