SmallRig NP-F Battery Adapter Mount Plate Kit for Mirrorless Cameras 4696

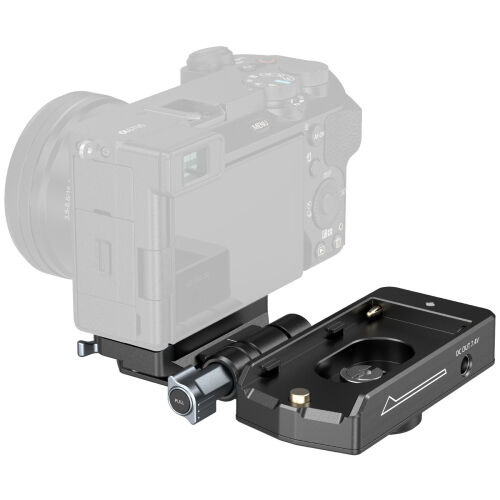

The SmallRig NP-F Battery Adapter Mount Plate Kit 4696 offers a compact and lightweight all-in-one power solution for mirrorless camera users. Featuring a back-mounted design, it effectively balances the camera's center of gravity for more stable handheld shooting. Its foldable, portable design makes storage easy. The built-in Arca-Swiss clamp allows direct attachment to Arca-Swiss cages, while the quick-release plate at the bottom ensures easy mounting to Arca-Swiss tripods for fast transitions between handheld and tripod setups. The anti-drop pin and damping design protect your equipment during rotation, with a pull-out locking knob for convenience. It includes multiple 1/4"-20 and 3/8"-16 threaded holes for additional accessories and dual DC output interfaces (7.4V and 12V) to power multiple devices simultaneously. The kit can be used with or without a cage, providing versatile power options for your gear.

Barcode (UPC / EAN): 6941590018737

Input Voltage 7.4V
Output Voltage DC 12V / DC 7.4V
Output Current 1.5A
Operating Current 50mA~100mA
Product Dimensions 12.2 x 9.4 x 2.52 cm
Product Weight 0.182+ ± 0.005 kg
Material(s) Aluminium Alloy, Stainless Steel, Silicone, ABS+PC


* Specifications subject to change by the manufacturer without notice.

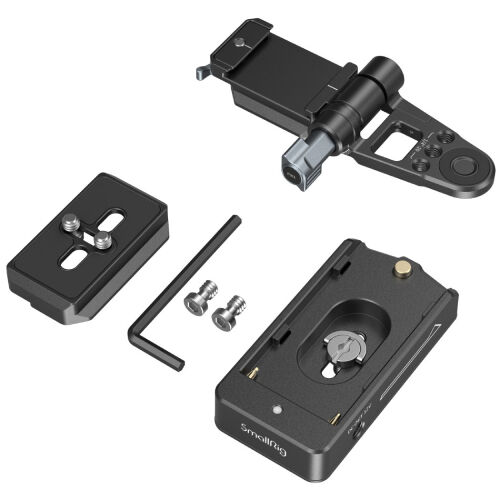

  • SmallRig NP-F Battery Adapter Mount Plate Kit for Mirrorless Cameras 4696
  • Folding Mount Plate
  • Arca-Swiss Quick Release Plate
  • 1/4"-20 Screw
  • Allen Wrench
