Key Features:
- -8.5 to +8.5 Focal Plane Angle
- +/- 12 mm Parallel Shift of Optical Axis
- Rotation of Tilt and Shift Sections by 90°
- Rotation of Bayonet Mount by 90°
- 13 Elements, 12 Groups
- 2 Low Dispersion (ED) & 2 Aspherical (ASP) Lenses
- Multi Layered Anti-reflective UMC Coating
- Designed for Canon EF Mount

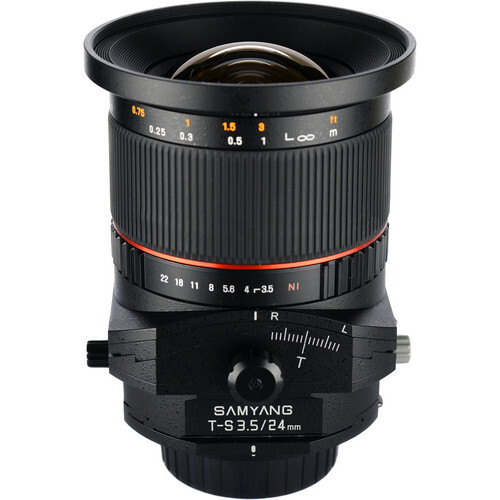

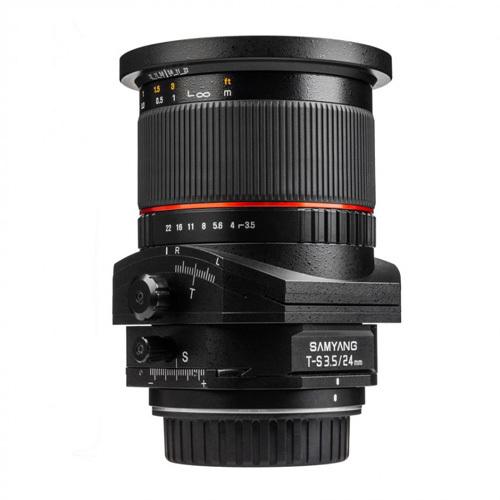

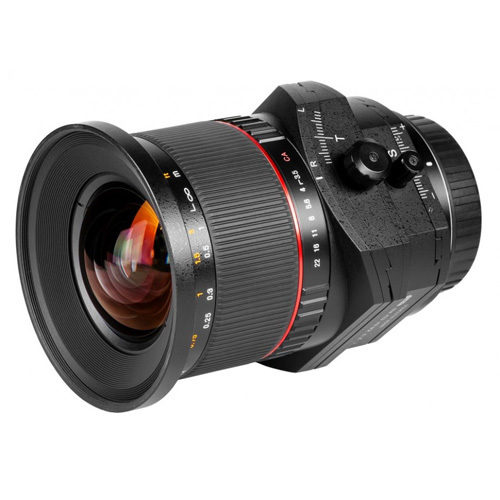

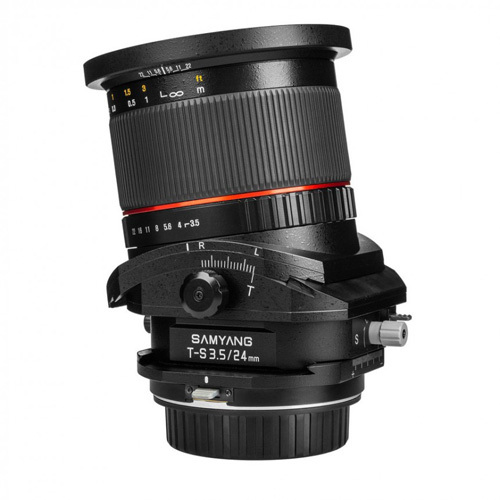

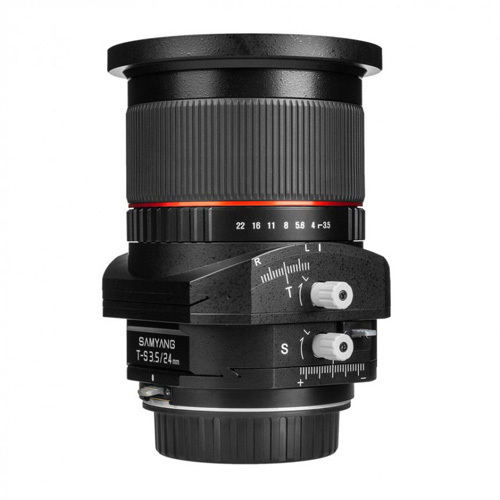

Samyang 24mm f/3.5 Tilt & Shift - Canon
SKU code: 24366
Australian Owned, Online Since 2001
Local Contact Centre
Industry Experts, Knowledgeable Team
Australia Wide Delivery
From Beginner to Pro, Affordable Gear
Secure Payment Methods
Key Features:
- -8.5 to +8.5 Focal Plane Angle
- +/- 12 mm Parallel Shift of Optical Axis
- Rotation of Tilt and Shift Sections by 90°
- Rotation of Bayonet Mount by 90°
- 13 Elements, 12 Groups
- 2 Low Dispersion (ED) & 2 Aspherical (ASP) Lenses
- Multi Layered Anti-reflective UMC Coating
- Designed for Canon EF Mount
You May Also Like
The Essentials:
Memory Cards:
Bags, Cases & Straps:
Lenses:
Tripods & Monopods:
Flashes & Lighting:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Studio Lighting:
Storage:
Other:
Tilt & Shift Function
This product allows for smooth selection of the focal plane angle within the range of -8.5 to +8.5 and parallel shift of the optical axis by ±12 mm. The sections responsible for the tilt & shift function can be rotated against each other by 30, 60 or 90 degrees and the bayonet mount can be independently rotated to the right by 90 degrees in 30 degree steps.
The Samyang T-S 24 mm model uses 16 lens elements divided into 11 groups. This includes two aspherical lens elements (ASP) preventing the spherical aberration effect and two lens elements with a low dispersion factor (ED), that reduce the chromatic aberration effect to the minimum. This construction allows for perfect details representation and slight bokeh typical of the most sophisticated lenses. Each lens element is covered with multilayered anti-reflective UMC coatings to ensure perfect light transmission, high contrast and accurate reproduction of colours.
Focal length | 24mm |
Maximum aperture | 3.5 |
Angle of view | 83.5° |
Minimum focusing distance | 0.2 m |
Minimum aperture | 22 |
Number of aperture blades | 8 |
Focus adjustment | manual |
Optical construction | 16 lens elements, 11 groups, 2 ASP, 2 ED |
Available mounts | Canon EF, Nikon F, Sony E, Sony A, Pentax |
Dimensions (for Canon EF) | 11.3 x 8.6 cm |
Weight (for Canon EF) | 0.640kg |
* Specifications subject to change by the manufacturer without notice
