Manfrotto 046MCB Overview

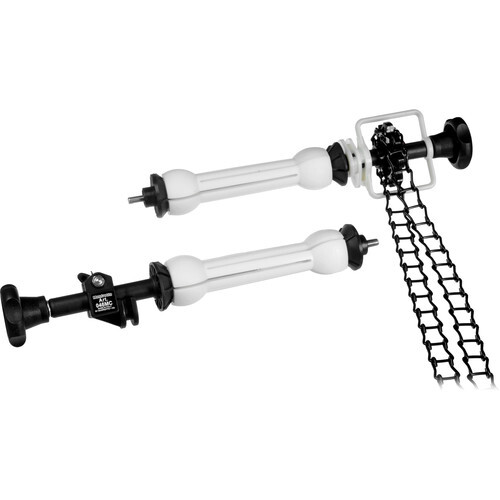

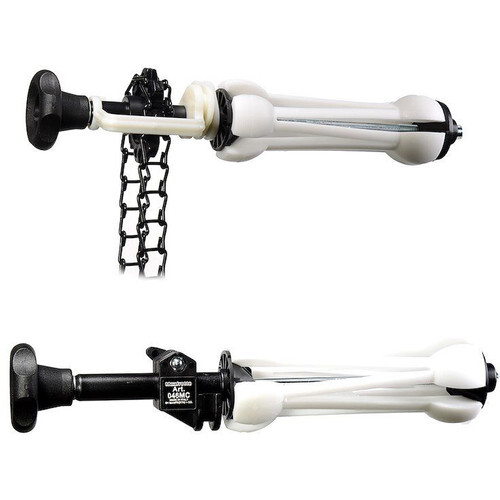

The Manfrotto 046MCB Expan Drive Set with Black Metal Chain makes it easy to raise and lower rolls of background paper without having to lower the support stands. This system uses two expandable technopolymer inserts to securely hold a single roll of seamless paper. When tightened, each side expands from 1.8" to 3" to firmly grip the roll from the inside. One side has a large toothed gear which is attached to a metal link chain, allowing you to easily raise and lower the background paper roll. The other side has an adjustable tension drag.

Construction Technopolymer, aluminium alloy
Load Capacity 22.05 lb (10 kg)
Compatibility Tubes up to 3.07" (80 mm)
Adjustments Drives expandable from 1.8-3.0" (46-78 mm)
Weight 2.0 kg

* Specifications subject to change by the manufacturer without notice

  • Manfrotto 046MCB Expan Drive Set with Black Metal Chain
  • 2 x Expan Drive Inserts

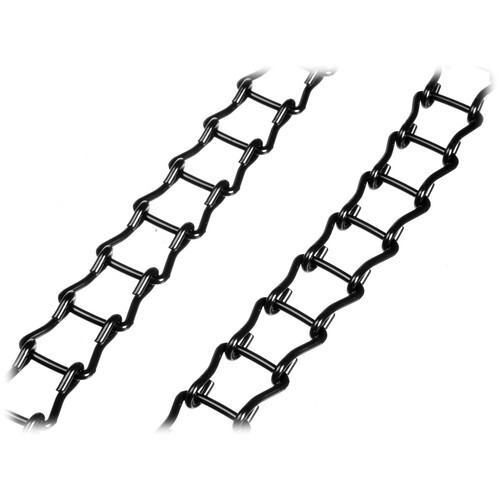

  • Aluminum Pull Chain
