The

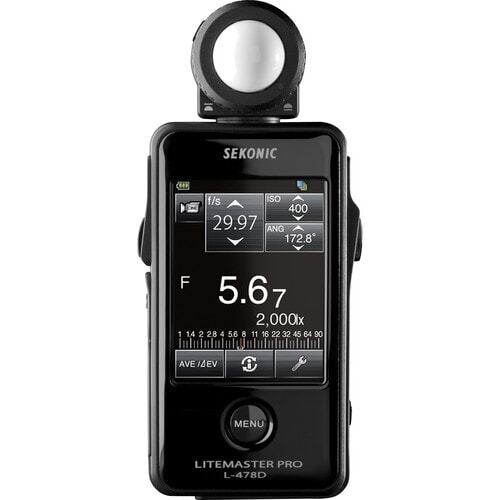

Sekonic L-478D Litemaster Pro Light Meter will make a feature rich addition to your photography kit. Featuring an innovative
2.7 inch colour LCD touchscreen, the L-478D light meter combines a bright, easy to read display with a clear intuitive interface. The meter also supports
exposure profiling, which allows you to customise the light meter to your camera’s specific dynamic range. This function helps you determine if there is information loss in the shadows or highlights of your photos. For anyone who needs to calculate accurate exposures quickly and easily, the
Sekonic L-478D Litemaster Pro Exposure Meter is the perfect tool for the job.
Product Code: SekExpMeterL478D
Adjustable Lumisphere - Swivel measuring head with retractable Lumisphere.
Simple Operation – Features an intuitive interface with an easy to read and understand graphical design. Effortlessly adjust settings by tapping or sliding icons on the screen.
Flash Analysing Function – The L-478D can measure ambient light and flash simultaneously then display the percentage of flash in the total exposure. The meter’s LCD display uses colour coded lines to graphically represent the flash to ambient light ratio in your photo.
Exposure Profiling - Every camera and lens combination has a unique dynamic range. Sekonic’s included Data Transfer Software enables quick dynamic range mapping and meter calibration for the most precise control of light. The software will also allow you to create custom meter functions to help simplify your workflow.
Contrast Function - The L-478 contrast function simplifies setting up lighting ratios and can help with checking the evenness of a background or scene.
Type: | Digital exposure meter for ambient and flash light |
Receptor Head: | Rotating Domed Head 90° to the right, 180° to the left, Retractable for Contrast Reading |
Light Receiving Method: | Incident light and reflected light |
Receptor Incident Light: | Convertible to flat diffuser(Lumisphere slides to expose Lumidisc) |
Receptor Reflected Light: | 5° Viewfinder (Separate Accessory) |
Light Receptor Element: | 2-Silicon photo diodes (incident and reflected) |
Measuring Range and Modes
Measuring Modes Ambient Light: |
- HD Cine - Shutter priority metering, FPS (Frame Rate Priority) metering, Lux/FC
- Cine - FPS (Frame Rate Priority) metering, Shutter Angle setting, Lux/FC
- Simple brightness measurement (foot-lambert, cd/m2
- Simple illumination measurement (lux, foot-candle)
- Aperture priority metering
- EV metering
- Shutter priority metering
|
Measuring Modes Flash: | - Measurement using the optional wireless flash radio triggering system (cumulative and non-cumulative)
- Without synchro cord (cumulative and non-cumulative)
- With synchro cord (cumulative and non-cumulative) |
Measuring Range (ISO 100) Ambient Light: | - Incident light EV-2 to EV 22.9
- Reflected light EV3 to EV 19.9 (requires accessory sold separately) |
Measuring Range (ISO 100) Flash: | - Incident Light f/1.0 to f/128.9
- Reflected Light f/2.8 to f/128.9 (requires accessory sold separately) |
Measuring Range Illuminance: | 0.63 to 2000000lux - 0.10 to 180000FC |
Measuring Range Brightness: | 1 to 980000 cd/m2 - 0.29 to 290000 foot lamberts |
Display Range and Modes
Display Range Film Speed: | ISO 3 to 409600 (in 1/3 steps) |
Display Range Shutter Speeds Ambient: | 30 min to 1/64,000 sec. (in 1, 1/2, 1/3 steps) plus 1/200, 1/400 |
Display Range Shutter Speeds Flash: | 30 min to 1/1000 sec. (in 1, 1/2, 1/3 steps) plus 1/75, 1/80, 1/90, 1/100, 1/200, 1/400 |
Display Range Aperture: | f/0.5 to f/161.2 (in 1, 1/2, 1/3 steps) |
* Specifications subject to change by the manufacturer without notice
Quick-Start Guide
Sekonic Data Transfer Software CD-ROM
Two x AAA batteries
Carrying Strap
Soft Case
Anti-Glare Film
