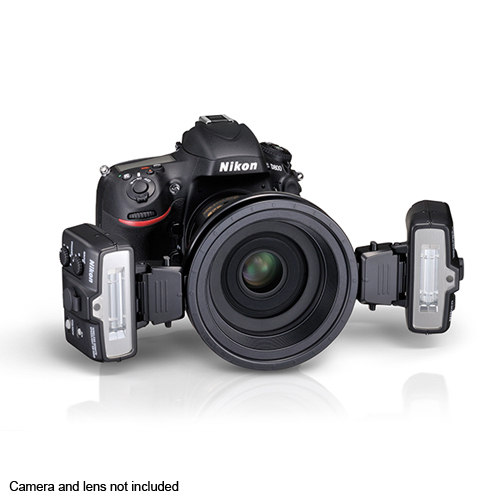

The Nikon R1 Close-up Speedlight Kit is for use with use with Nikon i-TTL SLRs including the D750, D810, D5300 and many others. The kit's main components consist of the SX-1 Attachment Ring that attaches to the lens filter treads via an adapter ring (included), and two SB-R200 wireless macro flash heads. The SX-1 Attachment Ring can accept up to eight SB-R200s and can be attached to a tripod for remote lighting.

This kit provides wireless control convenience. Producing desired close-up lighting effects is straightforward and uncomplicated. Up to three remote Groups and four Channels consisting of two SB-R200 Wireless Remote Speedlights can be arranged to enable creative lighting from the left, right, above or below the subject. SB-R200 Wireless Remote Speedlights can be tilted up to 60 degrees to accommodate lenses with short working distances. Flash compensation or Flash ratio control for desired lighting effects. SX-1 Master Attachment Ring accommodates up to eight SB-R200 Speedlights (off camera), up to four (on camera). SB-800 and/or SB-600 Speedlights can be combined and controlled for additional creative lighting effects.

Electronic construction:

Wireless remote flash unit with Automatic Insulated Gate Bipolar Transistor (IGBT) and series circuitry

Guide number:

10/33 (ISO 100, m/ft.), 14/46 (ISO 200, m/ft.)

Angle of coverage:

(78° horizontal, 60° vertical)

Flash modes:

i-TTL, D-TTL, TTL (film-based cameras), M (manual)

Recycling time:

6 seconds or less

Number of flashes:

Approximately 290

Bounce capability:

Flash head tilts down (toward optical axis) to 60° with stops at every 15°, and up (away from optical axis) to 45° with stops at every 15°

Flash duration:

Approximately 600 ¬s

Mounting foot:

Dedicated shoe for SX-1 Attachment Ring or AS-20 Speedlight Stand

Target light:

White LED

Power source:

One 3V CR123A lithium battery

Compatible Cameras D3300, D5300, D3200, D7100, D750, D810, Df, D4s, D610 D5200, D600, D7000, D800, D4, D90, D3100, D5100, D700, D3X, D300S, D300, D80

Dimensions (WxHxD):

Approximately 80 mmx—75 mm x 55 mm

* Specifications subject to change by the manufacturer without notice
