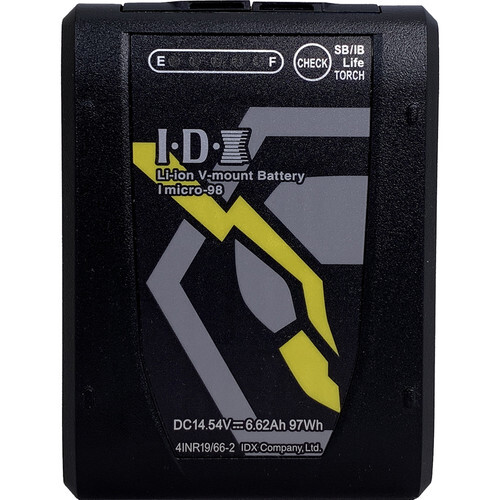

IDX System Technology IMICRO Overview

The IDX Imicro-98 is a 14.5V, 97Wh V-mount battery that packs a punch. With a draw of up to 14A, it's suitable for the most demanding cinema cameras. Its small size of 9.65 x 7.11cm makes it a great choice for gimbal and mobile applications.

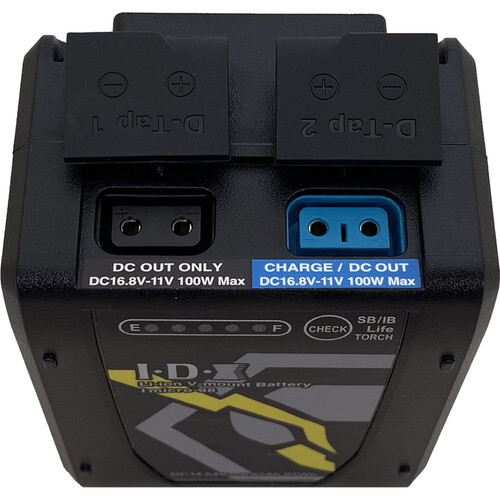

Despite its small form, the Imicro-98 provides two D-Tap outputs, one of them being an IDX D-Tap Advanced output that can alternatively be used to charge the battery. This advanced output supports D-Tap chargers such as the optional IDX VL-DT1, which is a portable charger. Otherwise, any IDX Endura V-mount battery can be used.

Other features of the Imicro-98 include high-grade lithium-ion cells, 5-LED gauge, and battery circuit protection against common causes of battery misuse, such as overcharge, overdischarge, overcurrent, and exposure to high temperatures.

  • High-grade lithium-ion cells
  • Compact form factor
  • 97Wh capacity
  • Supports up to 14A loads
  • 100W D-Tap Advanced output (unregulated) for accessories and charging
  • 100W D-Tap output (unregulated)
  • 5-LED power indicator
  • Battery circuit protection
  • 11V auto cutoff prevents overdischarging (while a load is applied)
  • Compatible with all Endura V-mount chargers
  • Recyclable
IDX SYSTEM TECHNOLOGY MICRO

Mount / Series Type V-Mount
Chemistry Lithium-Ion
Battery Capacity 6600 mAh / 97 Wh
Output Voltage 14.5 VDC
Maximum Load 14 A
Accessory I/O 2 x D-Tap Output
Maximum Load (Accessory I/O) 100 W (D-Tap)
Storage Temperature -4 to 122°F / -20 to 50°C
Charging Temperature 32 to 104°F / 0 to 40°C
Discharging Temperature -4 to 113°F / -20 to 45°C
Dimensions (W x H x D) 7.11 x 9.65 x 5.08 cm
Weight 0.55 kg


* Specifications subject to change by the manufacturer without notice

  • IDX System Technology Imicro-98 14.5V 97Wh Li-Ion V-Mount Battery
