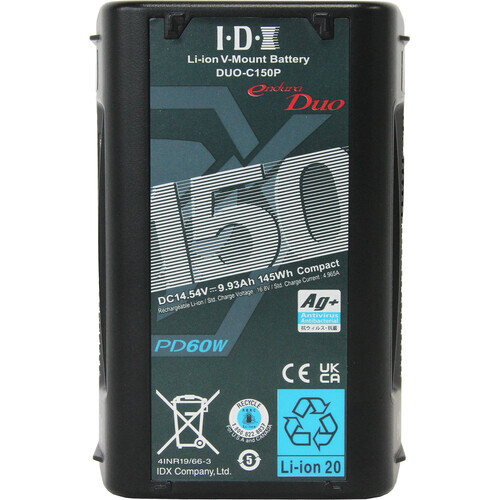

IDX System Technology Endura DUO-CP Overview

Power up your professional V-mount cameras such as the RED WEAPON or ARRI ALEXA Mini, as well as other professional devices with this DUO-C150P 145Wh High-Load Li-Ion V-Mount Battery from IDX System Technology. This compact battery is only 2.3" thick, but packs a large 145Wh, 9.9Ah capacity, providing 14.5V to your gear with a 14A maximum draw. Perfect for digital cinema cameras and camera stabilizer systems where long runtimes are needed, the battery data information displays in most cameras' viewfinders.

The DUO-C150P can output power via its V-mount, two D-Tap outputs, and USB Type-C port. One of the D-Tap ports is an Advanced port that can also be used to charge the battery with an optional D-Tap charger such as the UC-PD1. The USB Type-C is also a PD Fast Charging input that allows you to fast-charge the battery using up to 60W.

Designed with battery circuit protection against overcharge, overdischarge, overcurrent, and exposure to high temperatures, it protects your battery from the rigors of production. A 5-LED battery life indicator on its side provides a quick visual indication of the charge state of your battery, and its housing is designed with antimicrobial, antiviral materials.

Features

  • Suitable for cinema camera productions that need a high-capacity battery in a small package
  • The battery data displays in the viewfinder system of most cameras, and the addition of an SMBus enables RED cameras to display this information as well
  • V-Torch light for easy attachment to the plate
  • Handles up to 14A loads

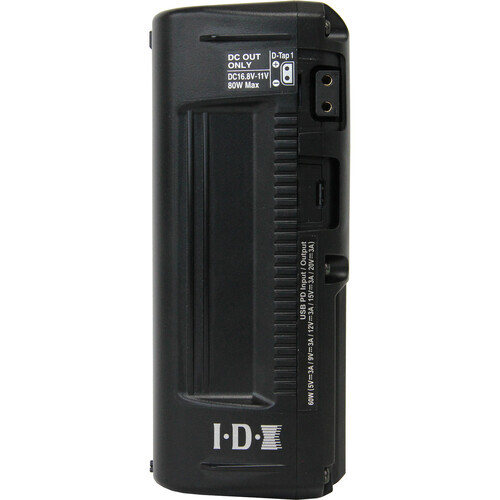

  • Two unregulated D-Tap accessory outputs at 80W each, one is a D-Tap Advanced input to also charge the battery
  • USB Type-C output port with 60W PD fast charging input
  • Battery circuit protection including over-charge, over-discharge, over-current, and over-temperature

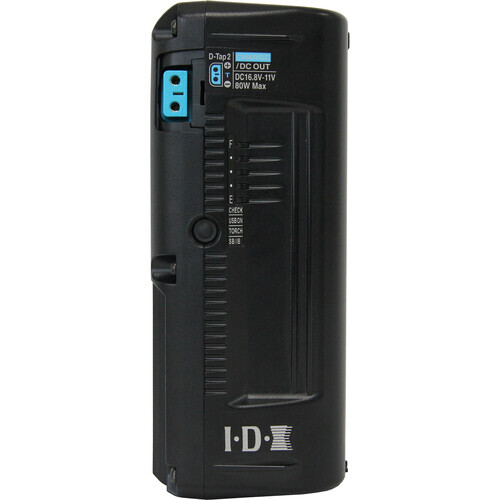

  • 5-LED battery life indicator
  • Fully compatible with all IDX Endura V-mount chargers, as well as the UC-PD1 USB Type-C charger and the VL-DT1 D-Tap charger
  • Antiviral and antimicrobial body for hygienic peace of mind
IDX SYSTEM TECHNOLOGY ENDURA DUO-CP

Mount / Series Type V-Mount
Chemistry Lithium-Ion
Battery Capacity 9900 mAh / 145 Wh
Output Voltage 14.5 VDC
Maximum Load 154 W, 14 A (Peak)
Accessory I/O 1 x D-Tap Input/Output 80 W Regulated
1 x D-Tap Output 80 W Regulated
1 x USB Type-C Input/Output 60 W Regulated
Maximum Load (Accessory I/O) 80 W (D-Tap)
60 W (USB-C)
USB Output 5 V, 3 A
Storage Temperature -4 to 122°F / -20 to 50°C
Charging Temperature 32 to 104°F / 0 to 40°C
Discharging Temperature -4 to 113°F / -20 to 45°C
Dimensions (W x H x D) 9.5 x 14.61 x 5.89 cm
Weight 0.9 kg


* Specifications subject to change by the manufacturer without notice

  • IDX System Technology DUO-C150P 145Wh High-Load Li-Ion V-Mount Battery

Manufacturer Warranty


This product comes with a

12month Australian warranty

from IDX Australia

Want to read more about warranties?

Click here
